USED 1993 Denver ASTRO, MTRZ'D WORKHEAD, NEW 1993

Denver ASTRO, MTRZ'D WORKHEAD, NEW 1993 TOOL & CUTTER GRINDER, COPY OF A MONOSET

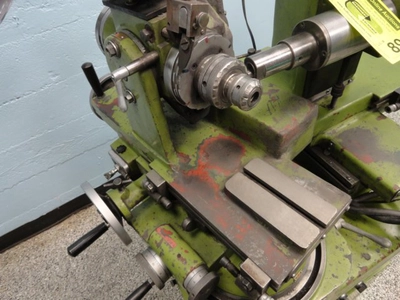

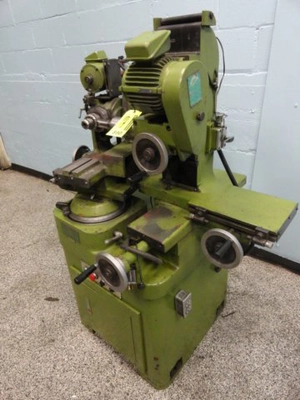

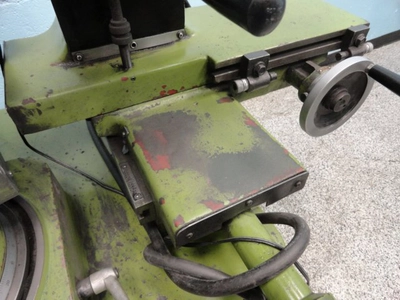

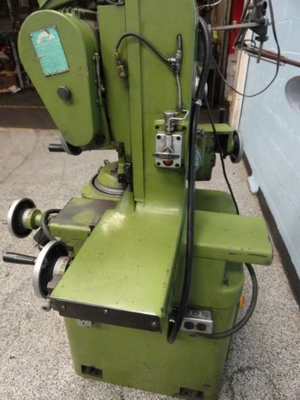

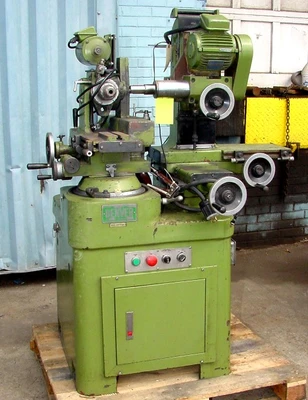

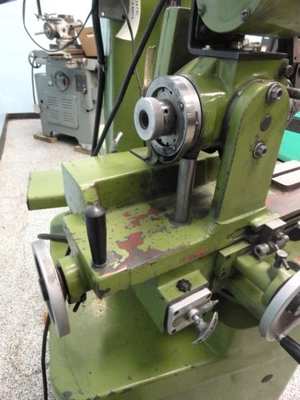

DENVER "ASTRO" "MONOSET COPY" TOOL & CUTTER GRINDER

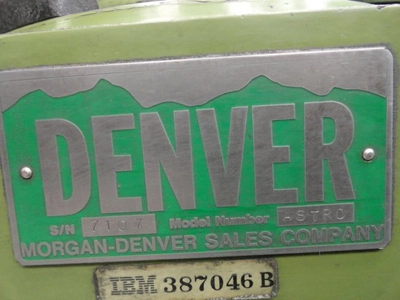

S/N: 7107        NEW: 1993

CAPACITY -

WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA.:...... 12"

MAX. WORKHEAD COLLET HOLE DIA.:................. 1-1/4"

MIN. WORKHEAD COLLET HOLE DIA.:................. 0.12"

MAX. GRINDING WHEEL DIA.:....................... 4"

LEAD GENERATION BY SPIRAL LEAD MECHANISM,

MINIMUM:........................................ 1.81"

MAX. LENGTH OF WORK BETWEEN SPINDLE &

TAILSTOCK CENTER:............................... 6"

RANGE -

WORKHEAD SLIDE TRAVEL:

MAIN SLIDE TRAVEL:.............................. 5- 3/4"

OFFSET SLIDE TRAVEL, TOTAL:..................... 5- 1/4"

-FRONT OF CENTER:............................... 3"

-REAR OF CENTER:................................ 2- 1/4"

WORKHEAD ANGULAR ADJUSTMENT:

MAX. TURNTABLE SWIVEL:.......................... 235 DEG.

ABOVE AND BELOW CENTER:......................... 40 DEG.

WHEELHEAD SLIDE TRAVEL:

LONGITUDINAL SLIDE TRAVEL:...................... 6"

VERTICAL SLIDE TRAVEL, TOTAL:................... 9-1/2"

-ABOVE CENTER:.................................. 4- 1/2"

-BELOW CENTER:.................................. 5"

CROSS SLIDE TRAVEL, TOTAL:...................... 7- 1/2"

-FRONT OF CENTER:............................... 3"

-REAR OF CENTER:................................ 4- 1/2"

SPEEDS -

(3) WHEELHEAD SPINDLE SPEEDS: .................. 4,000, 5,729, 8,000 RPM

WORKHEAD SPINDLE SPEEDS: ....................... INFINITELY VARIABLE

APPROXIMATE WEIGHT ............................. 1,525 LBS.

APPROX. DIMS. .................................. 34"F-B x 42"L-R x 62"H

EQUIPPED WITH:

POWER WORKHEAD

ONE-SHOT LUBRICATION SYSTEM

1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR

SPECIAL NOTE:

ORIGINALLY OWNED BY IBM. THIS IS ONE VERY NICE MACHINE TOOL!

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
