USED 1986 Gallmeyer & Livingston 62, NEW 1986, POWER TABLE & POWER WORKHEAD
Overview
Description

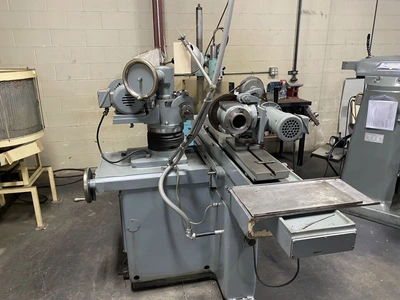

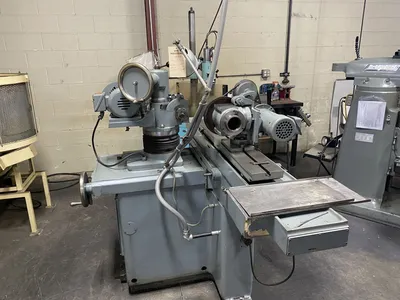

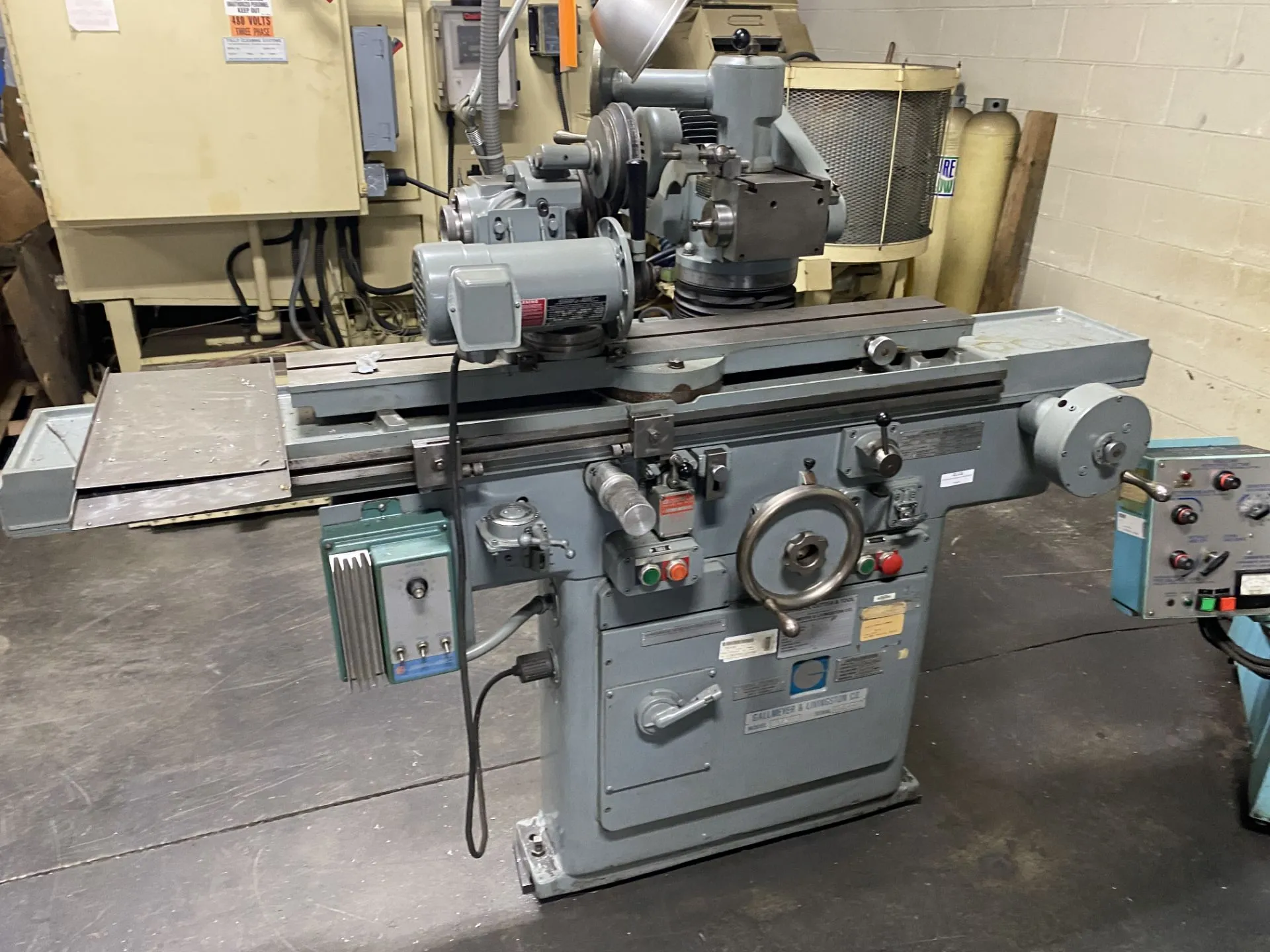

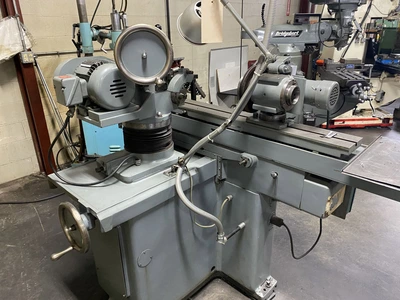

Gallmeyer & Livingston 62, NEW 1986, POWER TABLE & POWER WORKHEAD TOOL & CUTTER GRINDER, BEAUTIFUL MACHINE DESIGN
Specifications
GALLMEYER & LIVINGSTON "GRAND RAPIDS"
UNIVERSAL TOOL & CUTTER GRINDER
***** MADE IN USA FOR THE US GOV'T *****
** LONG TABLE WITH POWER FEED, 6" x 44" SIZE, 24" TRAVEL **

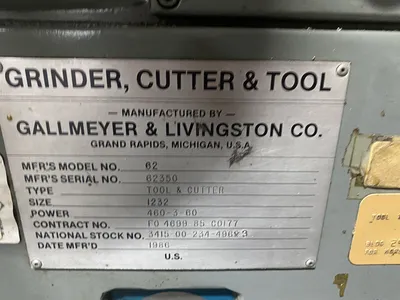

MODEL: 62 S/N: 62350 NEW: 1986
CAPACITY:
SWING OVER TABLE DIAMETER ......................... 12"
LENGTH, BETWEEN RIGHT & LEFT-HAND TAILSTOCKS ...... 32"
LENGTH, BETWEEN TAILSTOCK & WORKHEAD .............. 29"
FACE MILLS ON WORKHEAD DIAMETER ................... 12- 1/4"
RANGE:
TABLE SIZE ........................................ 6" X 44"
LONGITUDINAL TABLE TRAVEL ......................... 24"
TABLE TRAVERSE BY HANDWHEEL ................. 1/2", 3.5" AND 8.25"
CROSS & VERT. HANDWHEEL GRADUATION ................ 0.001"
CROSS MOVEMENT OF WHEEL ........................... 8"
TABLE SWIVEL ...................................... 180 DEG.
TABLE TAPER PER FOOT ON DIA. (TOWARD & AWAY) ...... 3"
TABLE GRADUATIONS IN CENTER, IN DEGREES ........... 360 DEG.
VERTICAL MOVEMENT OF GRINDING WHEEL SPINDLE ....... 12"
MAX. DIST. CENTERLINE OF SPINDLE TO TABLE ......... 14- 1/4""
SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE ......... 360 DEG.
GRINDING WHEEL SPINDLE SPEEDS (4) .......... 3850, 4400, 5100 & 5800 RPM
WORKHEAD SPINDLE SPEEDS, ELECTRONIC .............. INF. VARIABLE
APPROXIMATE MACHINE WEIGHT ........................ 2,7540 LBS
APPROXIMATE DIMENSIONS ............................ 64"L X 56"D X 64"H
MACHINE FEATURES:
CAST IRON CONSTRUCTION
OPERATING TABLE BY HAND - BEAUTIFUL FEEL
POWER TABLE WITH 24" OF TRAVEL
FRONT & REAR HANDWHEELS
POWER WORKHEAD WITH ELECTRONIC VARIABLE SPEED CONTROL
WORKHEAD HAS No. 12 B & S TAPER ONE SIDE, #50 NST TAPER THE OTHER SIDE
360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE
ONE-SHOT LUBRICATION SYSTEM
2-SPEED SPINDLE, INSTANTLY REVERSIBLE

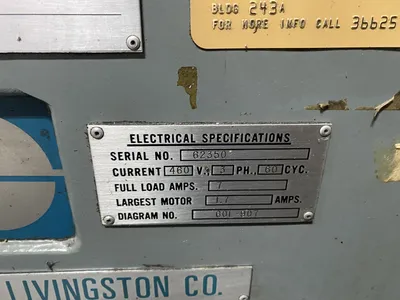

1 HP 3/60/230-460 VOLT SPINDLE MOTOR
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS
** SPECIAL MACHINE, LOOK AT THE CONDITION OF THIS MACHINE! **
** FROM THE US GOV'T **
** EXCEPTIONAL CONDITION & APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
