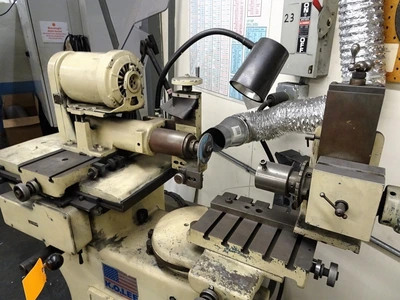

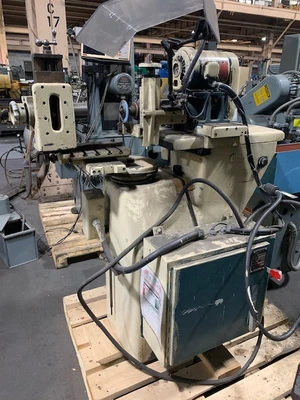

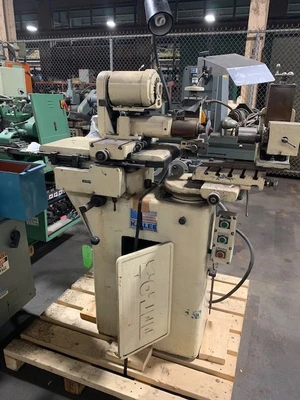

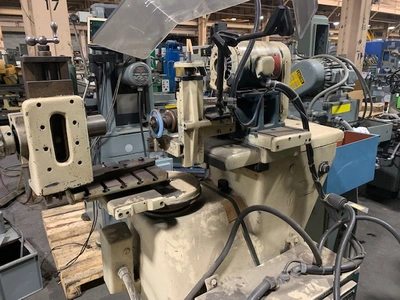

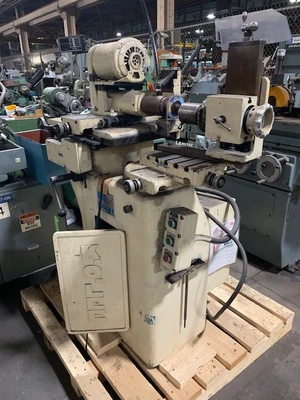

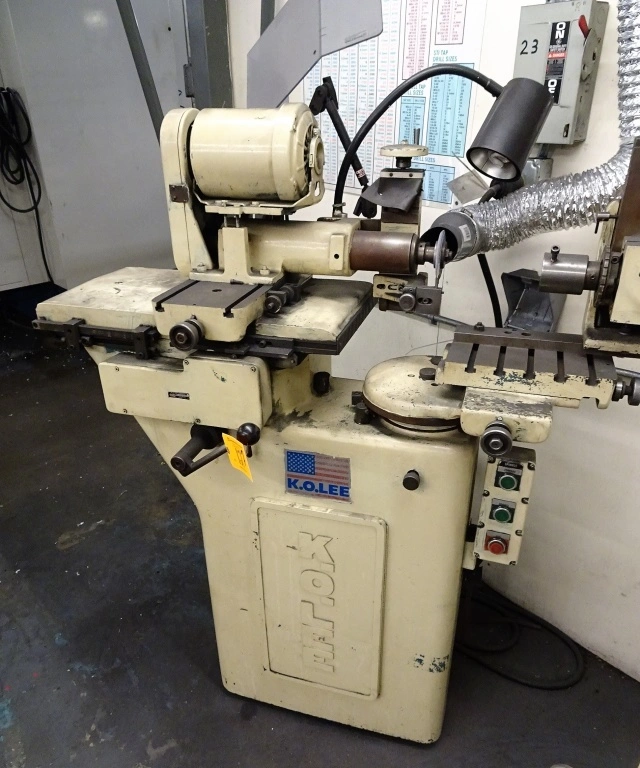

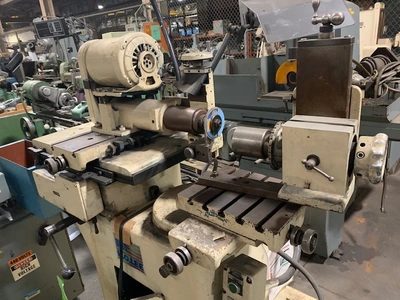

USED 1990 K.O. Lee RT-300 RADIUS-TANGENT GRINDER, NEW 1990,

  K.O. LEE RADIUS-TANGENT TOOL & CUTTER GRINDER

MODEL: RT 300      S/N: 25550     NEW: 1990

  SPECIFICATIONS:

CAPACITY:

MAXIMUM CUTTER DIAMETER.......................... 12-3/4"

RADIUS-CONCAVE................................... 5-1/2"

RADIUS-CONVEX.................................... 5-1/2"

MAXIMUM LENGTH OF FLUTE ACCOMMODATED WITH

2" WHEEL SHAFT EXTENSION......................... 7"

  WHEELHEAD MOVEMENTS:

LATERAL WHEELHEAD MOVEMENT....................... 7"

TRANSVERSE, QUICK ADJUSTMENT ON TEE BOLT SLIDE... 10-3/4"

TRANVERSE, FINE ADJUSTMENT SCREWFEED WITH

BACKLASH ELIMINATOR.............................. 1-3/4"

TRANVERSE TOTAL.................................. 12-1/2"

  WORKTABLE MOVEMENTS:

PARALLEL TO CUTTER AXIS, FINE ADJUSTMENT,

SCREWFEED........................................ 2-1/8"

PARALLEL TO CUTTER AXIS, QUICK ADJUSTMENT, TEE

SLOT SLIDE....................................... 6"

PARALLEL TO CUTTER AXIS TOTAL.................... 8-1/8"

NORMAL TO CUTTER AXIS, QUICK ADJUSTMENT, TEE

SLOT SLIDE....................................... 10"

NORMAL TO CUTTER AXIS, FINE ADJUSTMENT........... 2-5/8"

NORMAL TO CUTTER AXIS TOTAL...................... 12-5/8"

WORKTABLE SIZE................................... 8" X 11"

VERTICAL MOVEMENT OF WORK HOLDER................. 3"

ROTARY MOVEMENT OF WORKTABLE ON PRELOADED

TAPERED ROLLER BEARINGS (GRADUATED IN DEGREES)... 210 DEG.

CENTERLINE OF WHEELHEAD SPINDLE TO PIVOT POINT

OF WORKTABLE..................................... 7-3/4"

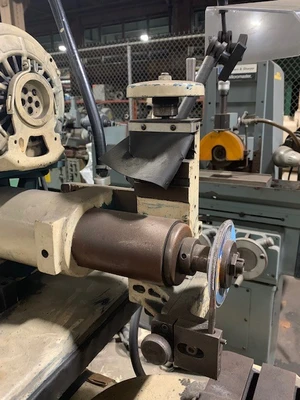

  GRINDING WHEEL:

MINIMUM/MAXIMUM DIAMETER......................... 4"/6"

FACE/THICKNESS................................... 1/16"/1/4"

BORE............................................. 5/8"

  SPINDLE:

SPEEDS WITH TWO STEP PULLEY...................... 5800/3800

APPROXIMATE WEIGHT: ............................. 1,150 LBS.

EQUIPPED WITH:

RT-390 INDENT ATTACHMENT

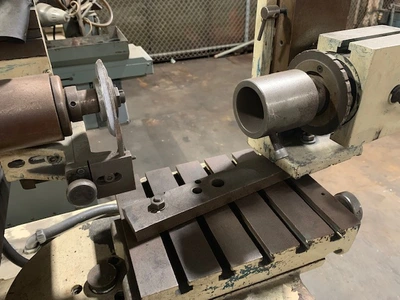

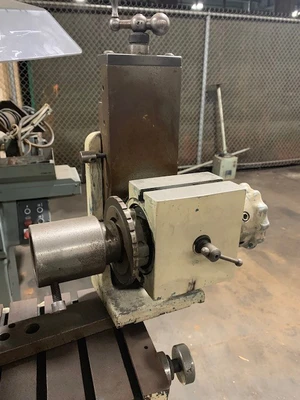

K.O.LEE WORKHEAD, INDEX PLATE & 5C COLLET DRAWBAR

VERTICAL SLIDE ADJUSTMENT W/HANDWHEEL FOR THE WORKHEAD

VERTICAL SLIDE ADJUSTMENT W/HANDWHEEL, WITH DRESSER, FOR THE GRINDING WHEEL

3/60/208-230-460 VOLTS, PRESENTLY WIRED FOR 208 VOLTS

  * * EXCELLENT CONDITION & APPEARANCE - COMPLETE MACHINE * *

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
