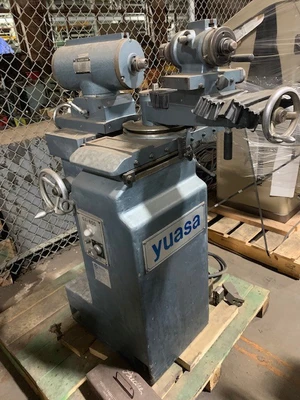

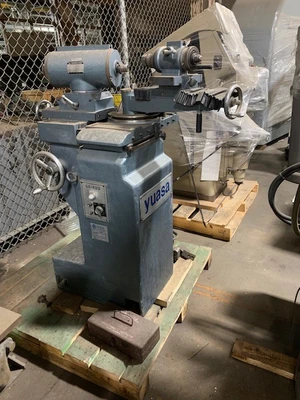

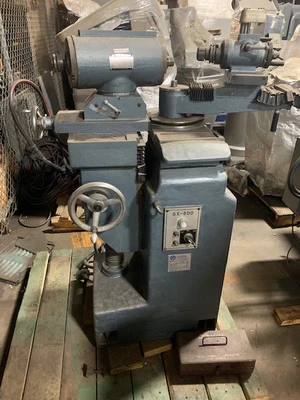

USED 1981 Yuasa GX-800 RADIUS GRINDER, MADE IN JAPAN, HIGH QUALITY
Overview
Description
Yuasa GX-800 RADIUS GRINDER, MADE IN JAPAN, HIGH QUALITY TOOL & CUTTER GRINDER, WORKHEAD WITH COLLET & INDEX PLATE
Specifications
YUASA RADIUS GRINDER (JAPANESE MADE)
MODEL: GX800 NEW: 1981
MAX. CUTTER DIAMETER W/2" THICK WHEEL ...... 6"
MAX. LENGTH OF TOOL TO BE GROUND ........... 8" FLUTE LENGTH
MAX. RADIUS GROUND, CONCAVE & CONVEX ....... 2"
RECOMMENDED END MILL DIA. .................. 1/4" TO 1- 1/4"
LONGITUDINAL TABLE TRAVEL .................. 8"
VERTICAL TRAVEL OF WHEELHEAD ............... 6"
CROSS TRAVEL OF WHEELHEAD .................. 4"
HORIZONTAL SWIVEL RANGE OF WHEELHEAD ....... 180 DEG.
WHEELHEAD TILTS, PLUS & MINUS .............. 15 DEG.
GRINDING WHEEL DIAMETER .................... 5"
APPROX. MACHINE WEIGHT ..................... 850 LBS.
EQUIPPED WITH:
TILTING WHEELHEAD
WORKHEAD W/INDEX PLATE & COLLET SYSTEM
MACHINE IS PRESENTLY WIRED FOR 3/60/240 VOLTS
** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
