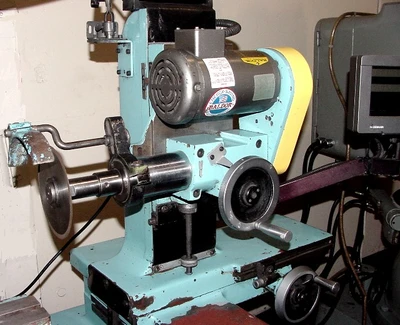

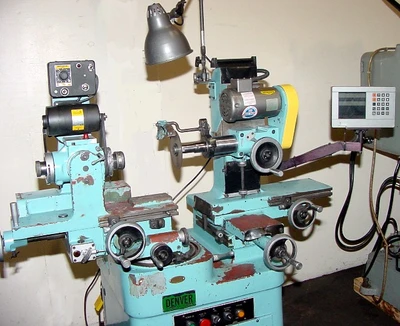

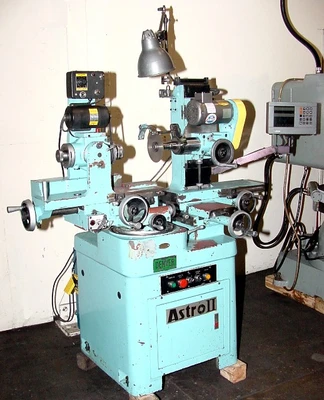

USED 1997 Denver ASTRO II (MONOSET TYPE)

11 18 Denver ASTRO II (MONOSET TYPE) TOOL & CUTTER GRINDER, DRO, ELECTRONIC V/S WKHD., TOOLING

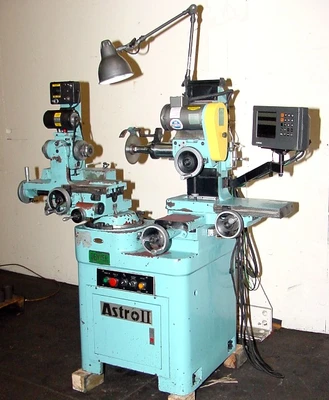

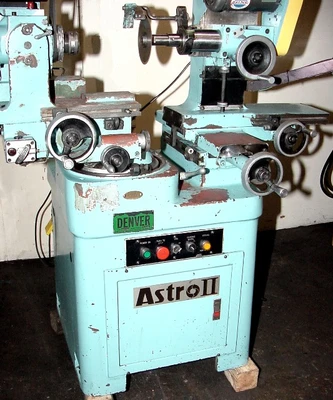

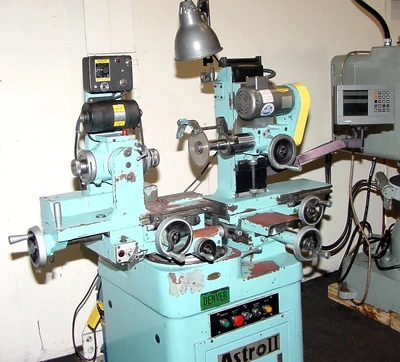

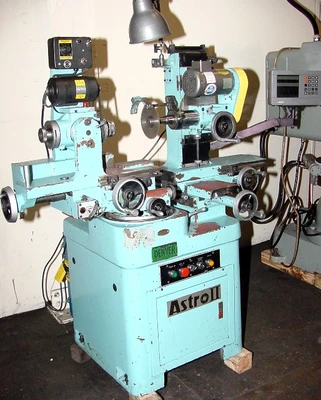

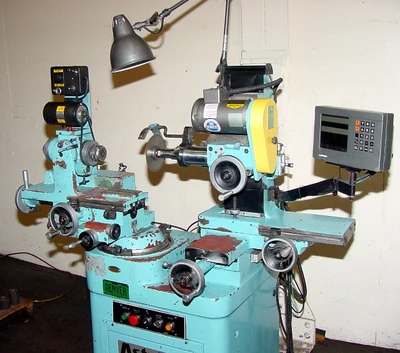

DENVER "ASTRO II"
"MONOSET" TOOL & CUTTER GRINDER

*** HEIDENHAIN 2-AXIS DIGITAL READOUT ***

S/N:  795221               NEW: 1997

CAPACITY -
WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA.:... 12"
MAX. WORKHEAD COLLET HOLE DIA.:.............. 1-1/4"
MIN. WORKHEAD COLLET HOLE DIA.:.............. 0.12"
MAX. GRINDING WHEEL DIA.:.................... 4"
LEAD GENERATION BY SPIRAL LEAD MECHANISM,
  MINIMUM:.................................... 1.81"
MAX. LENGTH OF WORK BETWEEN SPINDLE &
TAILSTOCK CENTER:............................ 6"

RANGE -
WORKHEAD SLIDE TRAVEL:
MAIN SLIDE TRAVEL:........................... 5- 3/4"
OFFSET SLIDE TRAVEL, TOTAL:.................. 5- 1/4"
  -FRONT OF CENTER:........................... 3"
  -REAR OF CENTER:............................ 2- 1/4"

WORKHEAD ANGULAR ADJUSTMENT:
MAX. TURNTABLE SWIVEL:....................... 235 DEG.
ABOVE AND BELOW CENTER:...................... 40 DEG.

WHEELHEAD SLIDE TRAVEL:
LONGITUDINAL SLIDE TRAVEL:................... 6"
VERTICAL SLIDE TRAVEL, TOTAL:................ 9-1/2"
  -ABOVE CENTER:.............................. 4- 1/2"
  -BELOW CENTER:.............................. 5"
CROSS SLIDE TRAVEL, TOTAL:................... 7- 1/2"
  -FRONT OF CENTER:........................... 3"
  -REAR OF CENTER:............................ 4- 1/2"

SPEEDS -
(3) WHEELHEAD SPINDLE SPEEDS: 4,000, 5,729, 8,000 RPM
WORKHEAD SPINDLE SPEEDS: INFINITELY VARIABLE

APPROXIMATE WEIGHT: 1,525 LBS.
APPROX. DIMS.:34"F-B x 42"L-R x 62"H

EQUIPPED WITH:

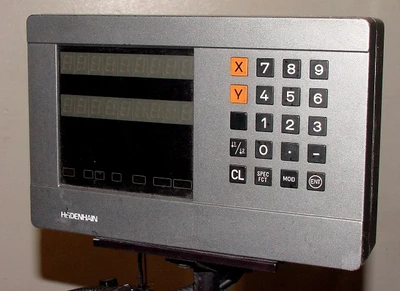

HEIDENHAIN 2-AXIS DIGITAL READOUT DISPLAY
ELECTRONIC VARIABLE SPEED CONTROL FOR INFINITELY VARIABLE
  WORKHEAD SPINDLE SPEEDS
WHEEL GUARD
.0005" HANDWHEEL GRAUATIONS

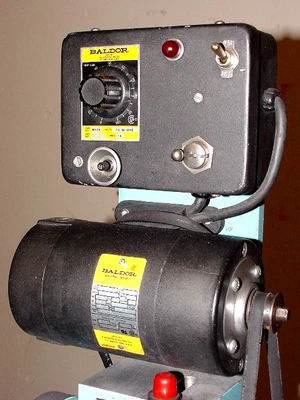

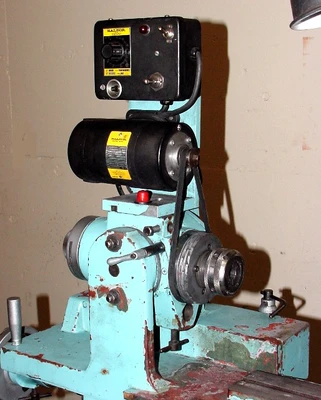

BALDOR ELECTRONIC VARIABLE SPEED MOTOR & SPEED CONTROL,
  FOR  MOTORIZED WORKHEAD, PROVIDES INFINITELY VARIABLE
  SPINDLE SPEEDS.
BIJUR ONE-SHOT LUBRICATION SYSTEM
1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR
MACHINE IS PRESENTLY WIRED FOR 3/60/480 VOLTS

*** TOOLING PACKAGE ***

* * EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
