USED 2000 BURKE No. 4

16" Table 0.5HP Spindle BURKE No. 4 UNIVERSAL MILL, Brown & Sharpe #9 Taper, Power Table Feed, .5 HP

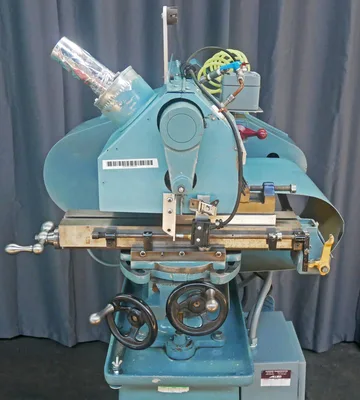

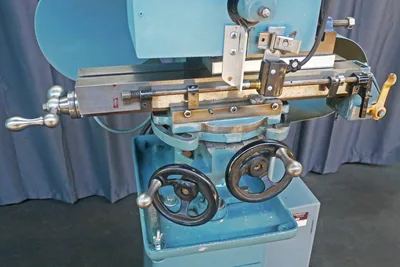

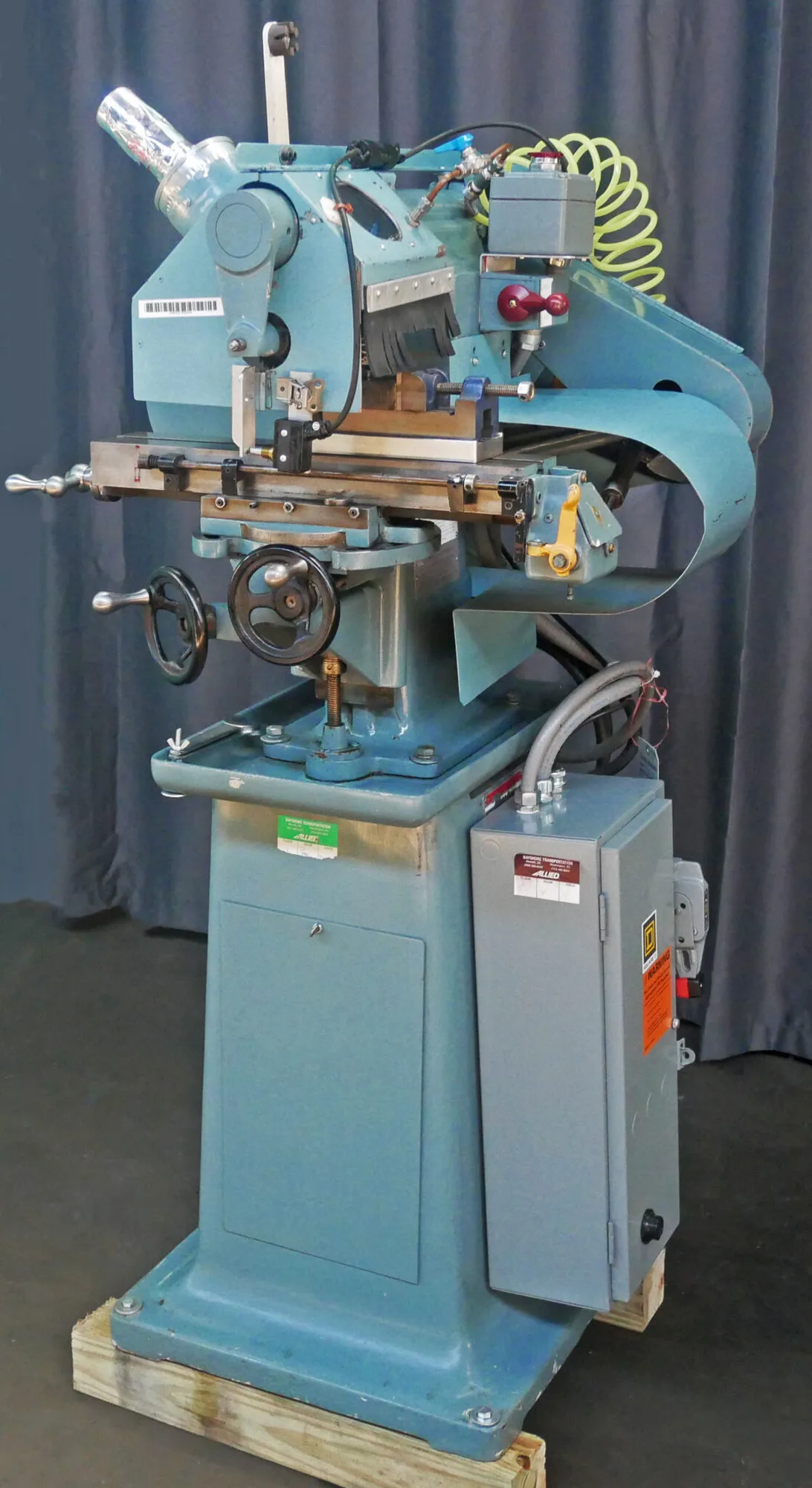

D.C. MORRISON / BURKER NO. 4 UNIVERSAL MILLING MACHINE

MODEL: NO. 4, S/N: B-420001201, MFG: 2000

SPECIFICATIONS:

WORKING SURFACE OF TABLE: .............. 3-3/4" X 20"

TABLE SWIVELS: ......................... 30° L-R

LONGITUDINAL FEED: ..................... 10"

TRAVERSE FEED: ......................... 2"

VERTICAL FEED: ......................... 7"

MAX. DISTANCE BETWEEN CENTER OF

-SPINDLE AND TABLE: .................... 7"

WIDTH OF T-SLOT: ....................... 1/2"

SPINDLE TAPER: ......................... BS #9

SPINDLE SPEEDS: (3) .................... 66 - 2,875 RPM

MOTOR: ................................. 1/2 HP / 208-230V, 460V / 3PH

EQUIPMENT INCLUDED:

BALDOR 1/2 HP, 3PH MOTOR

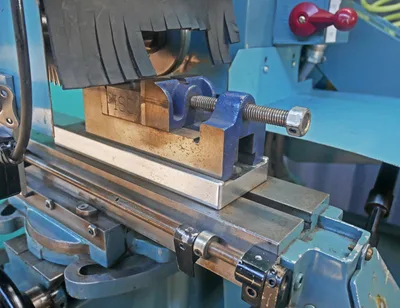

PLAIN VISE

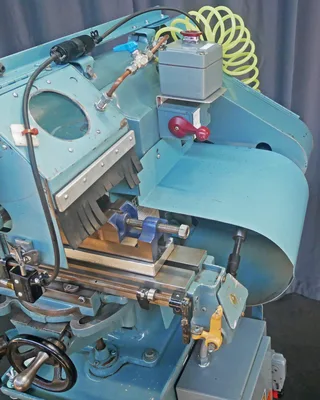

BELT AND CUTTER GUARDING WITH SAFETY INTERLOCK

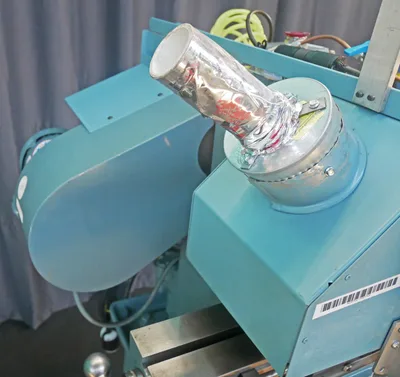

DUST COLLECTOR CONNECTION

PNEUMATIC CHIP BLOWER

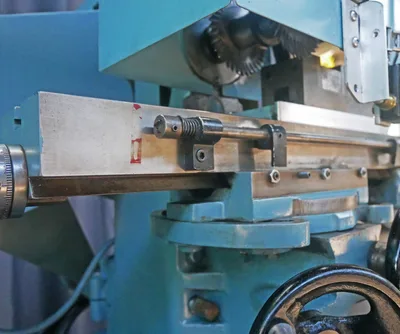

LONGITUDINAL TABLE FEED (4)

FOR MORE INFORMATION: Call David at 973-497-7570
