USED 1996 Royal Master TG-12X4, 1996, AUTO CYCLE INFEED,

1.5" Dia. Cap 7.5hp Motor HP Royal Master TG-12X4, 1996, AUTO CYCLE INFEED, CENTERLESS GRINDER, WKRST., COOLANT

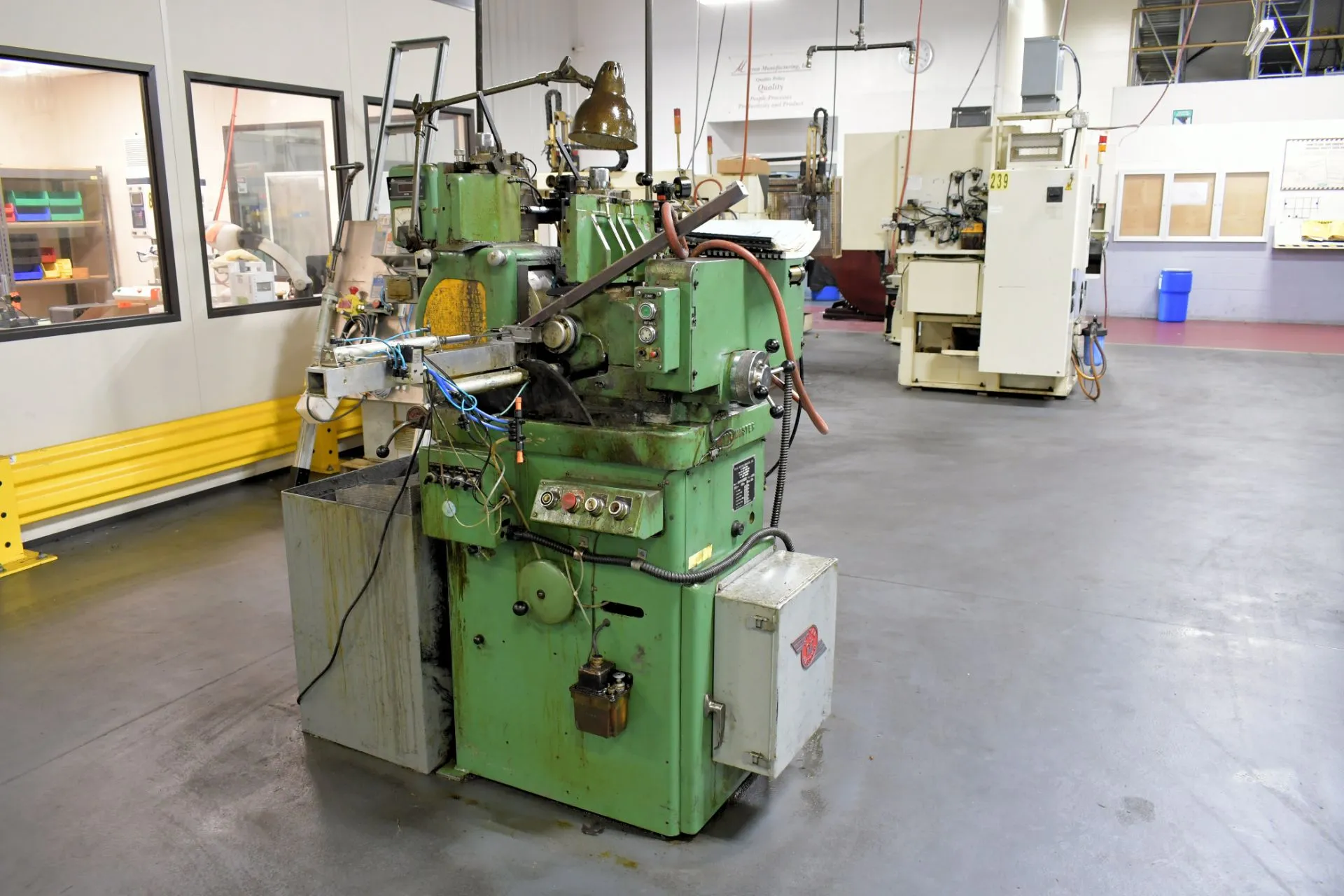

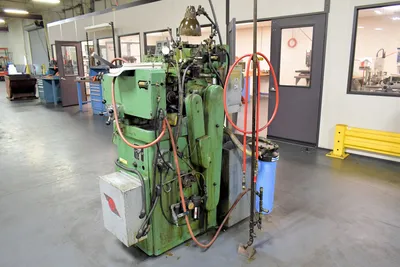

  ROYAL MASTER CENTERLESS GRINDER

   WITH AUTOMATIC CYCLE OPTION

MODEL: TG12x4      S/N: 2191     NEW: 1996

CAPACITY:

INFEED AND THRUFEED ....... 0.004" TO 1.5" DIA.

LENGTH .....................12' ON 0.5" DIA.

WHEELS:

MAXIMUM GRINDING WHEEL .... 12" DIA. x 4.5" WIDE

MINIMUM GRINDING WHEEL .... 10" DIA. x 1/4" WIDE

MAXIMUM REGULATING WHEEL .. 6" DIA. x 4.5" WIDE

MINIMUM REGULATING WHEEL .. 1/4" WIDE W/SPOOL

SPINDLE SPEEDS:

GRINDING WHEEL ....... CONSTANT SPEED 2,040 RPM

REGULATING WHEEL....... INF. VARIABLE 25 TO 480 RPM

REGULATING WHEELHEAD:

MAX. ANGLE OF TILT FOR

 THRUFEED GRINDING ........ 6 DEGREES

MAX. SWIVEL FOR

 TAPER GRINDING ........... 5 DEGREES

APPROXIMATE FLOOR SPACE ... 24" x 48"

APPROXIMATE WEIGHT ........ 2,800 LBS

EQUIPPED WITH:

AUTOMATIC CYCLE OPTION .... AUTOMATIC INFEED

"PRECISION" REGULATING WHEEL SPINDLE

"AIR-SENSING" HIGH ACCURACY DRESSER FOR THE

  GRINDING WHEEL

"AIR-SENSING" HIGH ACCURACY DRESSER FOR THE

  REGULATING WHEEL

PRECISION REGULATING WHEEL HOUSING, WITH

  AUTO LUBRICATION

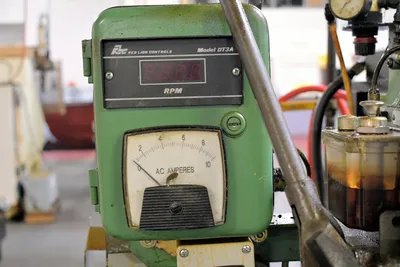

DIGITAL RPM INDICATOR FOR THE REGULATING WHEEL SPEED

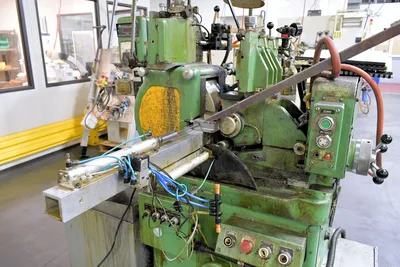

INFEED WORK REST

DIAL INDICATOR FOR REGULATING WHEEL MOVEMENT

COOLANT SYSTEM

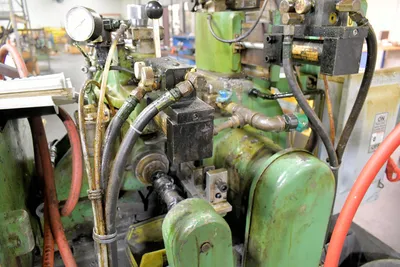

SELF CONTAINED HYDRAULIC SYSTEM

7.5 H.P. MAIN DRIVE MOTOR

3/60/208-230-460 VOLT ELECTRICS

MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS,

  14 FULL LOAD AMPS

** INSPECT UNDER POWER IN HARRISON, NJ **

*** EXCELLENT CONDITION & APPEARANCE ***

FOR MORE INFORMATION: Call Andy at 973-497-7600
