USED Cincinnati 2 0M, S/N: 2M2H5A-119, HYD. DRESSERS

3" Dia. Cap 15hp Motor HP Cincinnati 2 0M, S/N: 2M2H5A-119, HYD. DRESSERS CENTERLESS GRINDER, WORKREST

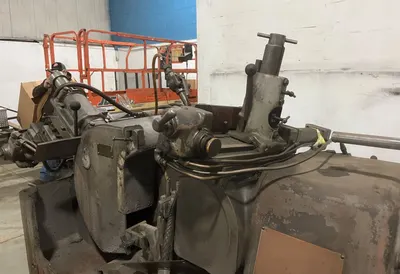

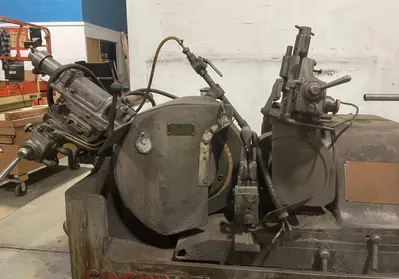

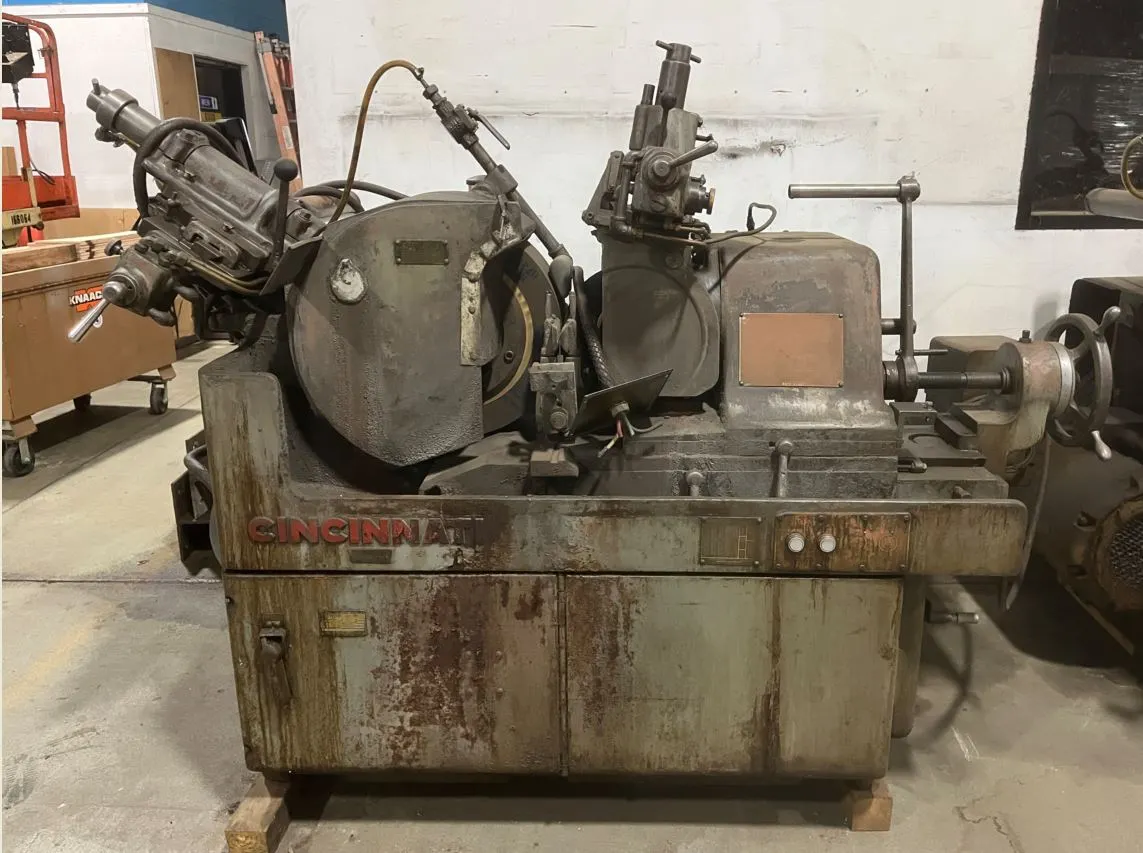

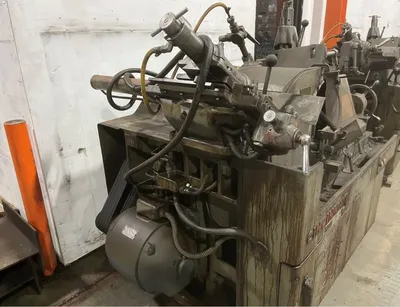

  CINCINNATI No. 2 "OM" CENTERLESS GRINDER

   (THIS MACHINE WAS MADE IN THE USA!)

 S/N: 2M2H5A-119

DIAMETER CAPACITY, NORMAL .......... 1/16" TO 3"

GRINDING WHEEL DIAMETER, MINIMUM ... 16"

GRINDING WHEEL DIAMETER, MAXIMUM ... 20"

GRINDING WHEEL HOLE DIAMETER ....... 12"

GRINDING WHEEL MOTOR ............... 15 H.P.

REGULATING WHEEL DIAMETER, MIN. .... 9.5"

REGULATING WHEEL DIAMETER, MAX. .... 12"

REGULATING WHEEL WIDTH, MAXIMUM .... 8"

REGULATING WHEEL HOLE DIAMETER ..... 5"

REGULATING WHEEL SPEEDS, RANGE ..... 12 TO 300 RPM

REGULATING WHEEL MOTOR ............. 1- 1/2 H.P.

APPROX. MACHINE WEIGHT ............. 8,000 LBS.

FLOOR SPACE ........................ 53" x 86"

EQUIPPED WITH:

HYDRAULIC DRESSER FOR GRINDING WHEEL

HYDRAULIC DRESSER FOR REGULATING WHEEL

WORK REST WITH BLADE

VARIABLE SPEED DRIVE FOR THE REGULATING WHEEL

SWIVEL-TYPE REGULATING WHEEL UNIT - TAPER ADJUSTMENT

FILAMTIC GRINDING WHEEL SPINDLE BEARINGS

15 H.P./3/60/220-440 VOLT MOTOR FOR THE GRINDING WHEEL

MACHINE IS WIRED FOR 440 VOLTS

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

** EXCELLENT CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
