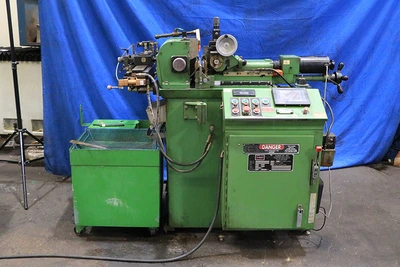

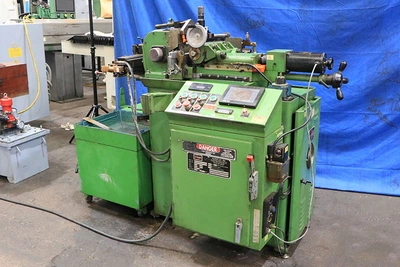

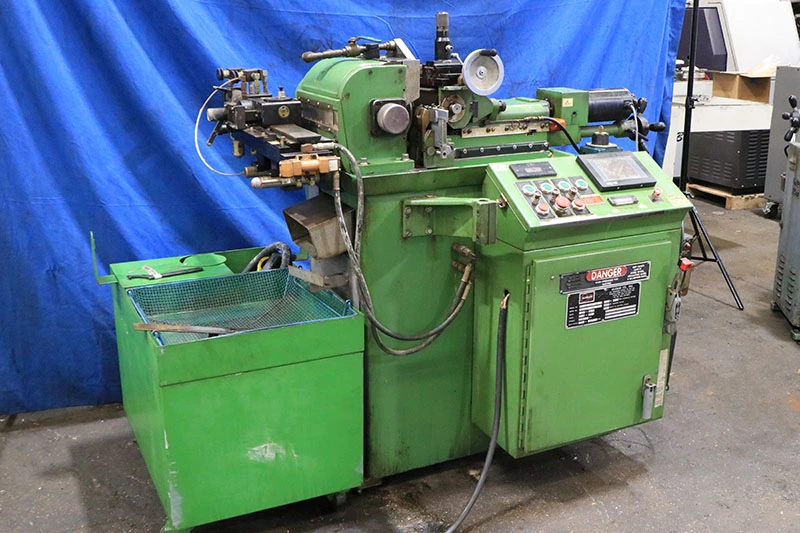

USED 2001 Glebar TF9DHD, 2001, TOUCHSCREEN CONTROL AUTO CYCLE

2.5" Dia. Cap 7.5hp Motor HP Glebar TF9DHD, 2001, TOUCHSCREEN CONTROL AUTO CYCLE CENTERLESS GRINDER, DRESSERS, WORKREST, COOLANT

 GLEBAR "MADE IN USA" CENTERLESS GRINDER

** PROGRAMMABLE BY TOUCHSCREEN CONTROL,

    AUTO INFEED & THRUFEED **

MODEL: TF-9DHD   S/N: 01-1336   MFG:  2001

SPECIFICATIONS

DIAMETER ACCURACY:  0.00005"

ROUNDNESS:  0.00005"

GRINDING DIAMETER:  MIN 0.002",  MAX 2.5"

GRINDING LENGTH:  INFEED 8"

                  THRUFEED - NO LIMIT

WORK WHEEL DIA.: 9"

WORK WHEEL LENGTH:  8-5/8"

WORK WHEEL SPINDLE POWER:  7.5HP

WORK WHEEL:  2,400 RPM

REGULATING WHEEL DIAMETER:  4"

REGULATING WHEEL:  10 TO 400 RPM

HYDRAULIC MOTOR:  2 H.P.

ELECTRICS: 230V, 3 PH, 60 CYC

APPROX. MACHINE WEIGHT:  2,085 LBS.

KEY FEATURES

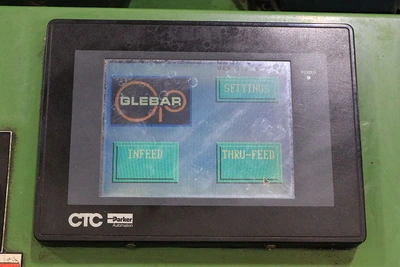

INDUSTRIAL TOUCH SCREEN WORKSTATION,

 NEMA 4 RATED

CLOSED LOOP CONTROL VIA LINEAR SCALE,

 ON THE MOVABLE SLIDE

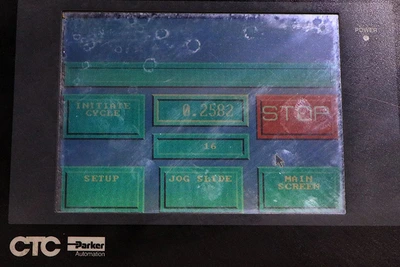

TOUCHSCREEN PC BASED

 RUNNING INTERACT OS;

 CLOSED LOOP POSITIONING

 WITH GLASS SCALE TO 0.000050"

OPERATOR FRIENDLY CONTROL

INTERFACE TO MEASUREMENT INSTRUMENTS

AUTOMATIC SIZE COMPENSATION CAPABILITY

AUTOMATIC INFEED FOR FORMING SMALL SHAPED PARTS

SUPER PRECISION REGULATING HOUSING

BUILT IN INFEED AND THRUFEED CYCLES,

 WITH PROGRAMMABLE INPUTS AND POSITIONING

LINK TO THE GLEBAR WEBSITE:

https://www.glebar.com/machines/tf-9d/

MACHINE FEATURES:

PRECISION 8- 5/8" WIDE SPINDLES ON BOTH REGULATING

  & WORK WHEELS

INTERFACE TO FEEDING SYSTEM

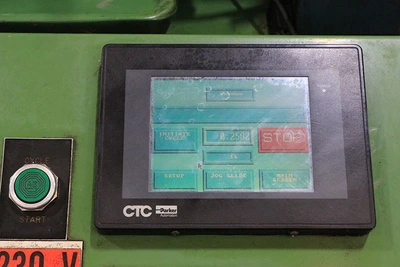

COLOR TOUCH SCREEN

INDEPENDENT UPPER & LOWER SLIDES

PRODUCE MULTI-FORMED PARTS UP TO 8- 1/4" LONG

  OR MULTIPLE PARTS PER CYCLE.

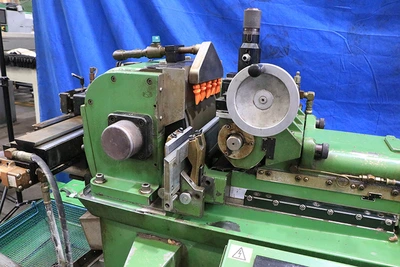

EQUIPPED WITH:

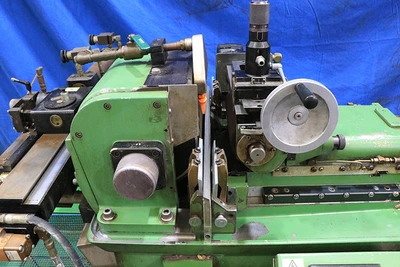

HYDRAULIC DRESSER FOR THE GRINDING WHEEL

REMOVABLE MANUAL DRESSER FOR THE REGULATING WHEEL

WORK REST

COOLANT SYSTEM, TANK WITH PUMP

CAST IRON CONSTRUCTION DESIGN

MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

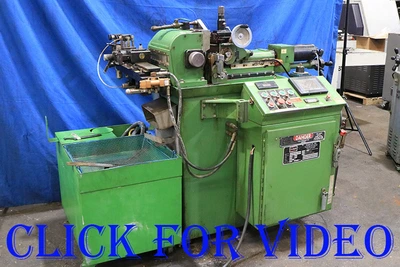

BELOW, PLEASE FIND LINK TO VIDEO OF MACHINE UNDER POWER

Link to video: https://youtu.be/gHOrk_jOJnM?si=EE2Kg6EF9Pw0pEd9

*** EXCELLENT CONDITION, ORIGINAL PAINT - WOW! ***

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
