USED 1990 Unison-Dedtru 287-0000, 1990, POWER TABLE CYCLE OPTION, DEDTRU

5" Dia. Cap 3hp Motor HP Unison-Dedtru 287-0000, 1990, POWER TABLE CYCLE OPTION, DEDTRU CENTERLESS GRINDER, COOLANT, 2X DRO

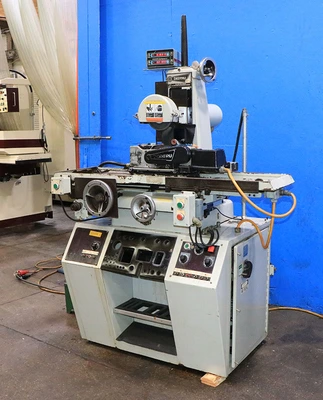

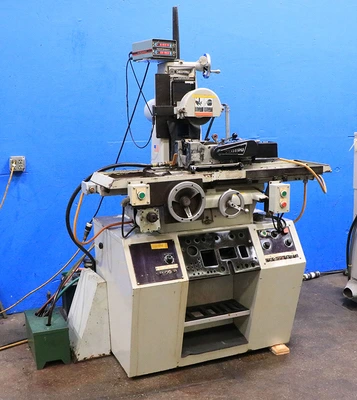

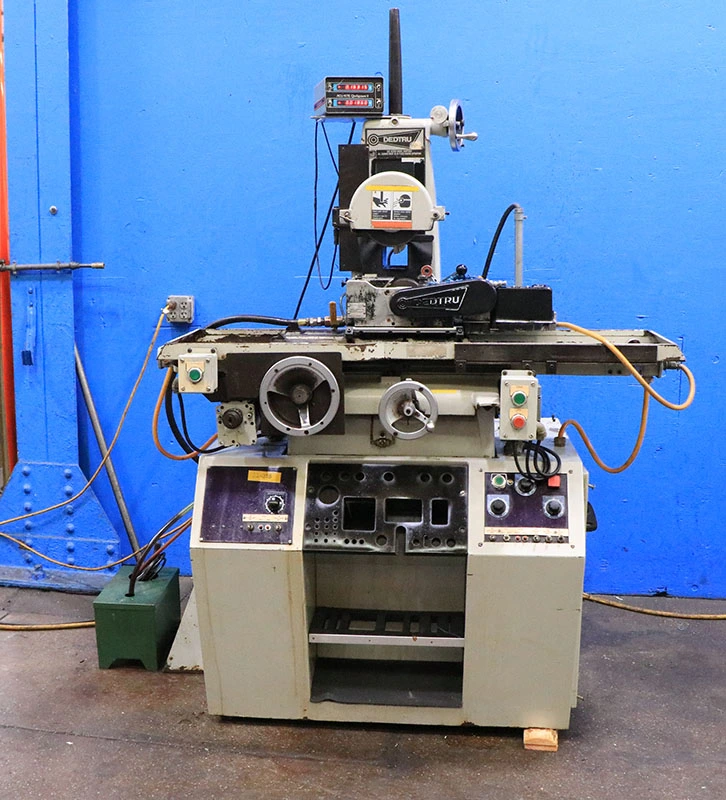

  UNISON "DEDTRU" CENTERLESS GRINDING MACHINE

MODEL: 287-0000

S/N: 6668-C3383-PGF 111

NEW: 1990

VERTICAL WORKING HEIGHT

 (CENTER OF SPINDLE ABOVE)

  REGULATING ROLL .................... 10"

CROSS FEED TRAVEL .................... 6-3/4"

LONGITUDINAL TRAVEL .................. 18"

TABLE SIZE ........................... 6" X 18"

WORKPIECE SIZE:

  O.D. WORK WITH BASIC

  EQUIPMENT .......................... 1/4" TO 1-1/4"

  O.D. WORK W/STD. OPTIONAL

  ACCESSORIES ........................ 0.031" TO 5"

  I.D. WORK - MAXIMUM O.D. ........... 5"

MAXIMUM WHEEL DIAMETER ............... 8"

MAXIMUM WHEEL LENGTH ................. 3"

APPROXIMATE MACHINE WEIGHT ........... 1,500 LBS

EQUIPPED WITH:

     ONE OR THE OTHER UNISON DEDTRU CENTERLESS

     GRINDER UNITS, BUYER CAN CHOOSE,

     BOTH UNITS ARE IN OUR STOCK:

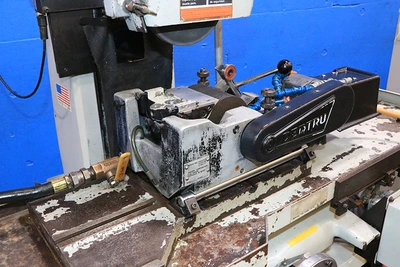

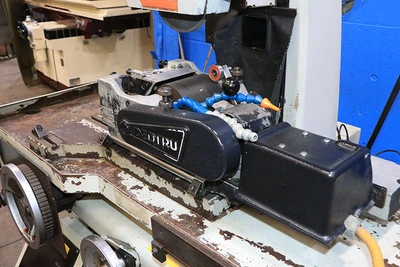

     MODEL "C" DED-TRU CENTERLESS GRINDING UNIT,

       -DESIGNED TO DO THROUGH FEED, O.D., I.D. AND

       SECOND OPERATIONS.

     MODEL PGF DED-TRU, DESIGNED TO DO ID/OD, INFEED

       AND PLUNGE GRINDING.  PART CAPACITY IS 1/4" TO

       1- 1/4".  SPECIAL TOOLING ALLOWS FOR SMALLER

       OR LARGER PARTS (CONSULT WITH "NEW UNISON CORP.").

       CAN PLUNGE GRIND STRAIGHT OR ROUND PARTS.  CAN ALSO

       PERFORM INFEED OPS WHICH REQUIRE EXTREMELY CLOSE

       TOLERANCES.

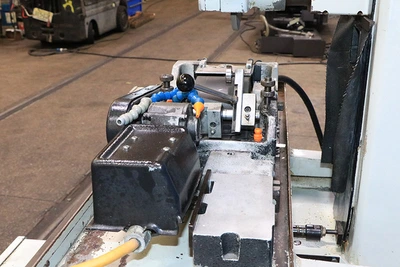

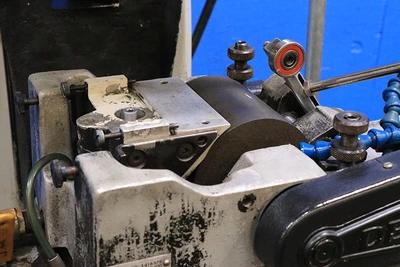

     REGULATING ROLL WITH ITS OWN SELF-CONTAINED DC

       DRIVE CONTROLLER. REGULATING ROLL SIZE 4" X 4"

     HARIG #618W SURFACE GRINDER BASE

     OPTIONAL FINE DOWNFEED KNOB (.0001" GRAD.)

     "AUTOMATIC LONGITUDINAL FEED CYCLE" OPTION - PROVIDES

       RAPID APPROACH TO WORK, SLOW DOWN TO FEED RATE,

       FEED TO POSITIVE STOP, DWELL FOR PRESET TIME,&

       AUTOMATIC RAPID CARRIAGE RETURN.  SLOW DOWN

       POSITION, FEED RATE, POSITIVE STOP,& DWELL TIME

       ARE ADJUSTABLE.  INCLUDES LIMIT SWITCH START& STOP

       CONTROL OF REGULATING ROLL.

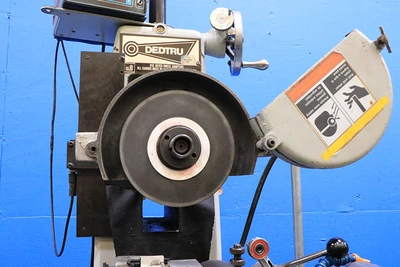

     "POPE" 3 H.P. SPINDLE, 3,600 RPM, 3/60/230-460 VOLTS

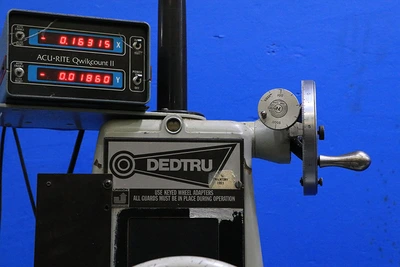

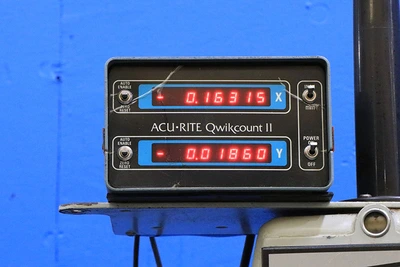

     "ACU-RITE" "QWIKCOUNT" 2-AXIS DIGITAL READOUT DISPLAY

     "FINE FEED KNOB" FOR VERTICAL AXIS (OPTION)

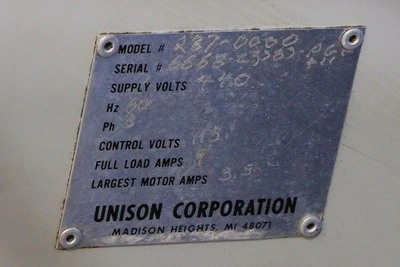

     MACHINE IS PRESENTLY WIRED FOR 440 VOLTS, 9 FLA

 LINK TO VIDEO: https://youtu.be/qc8BNNE-Roo?si=KA4X_2Gb4TVxDSex

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **

FOR MORE INFORMATION: Call Andy at 973-497-7600
