USED 1979 Cincinnati-Milacron CINCO 15, 1979, DRESSERS, 24" WHEEL, WKRST

3" Dia. Cap 20hp Motor HP Cincinnati-Milacron CINCO 15, 1979, DRESSERS, 24" WHEEL, WKRST CENTERLESS GRINDER, COOLANT

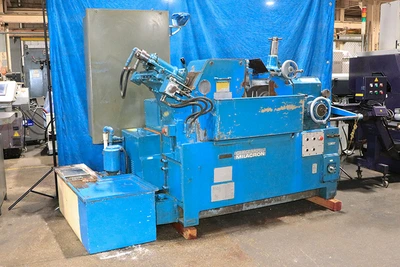

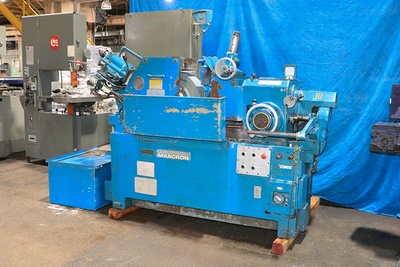

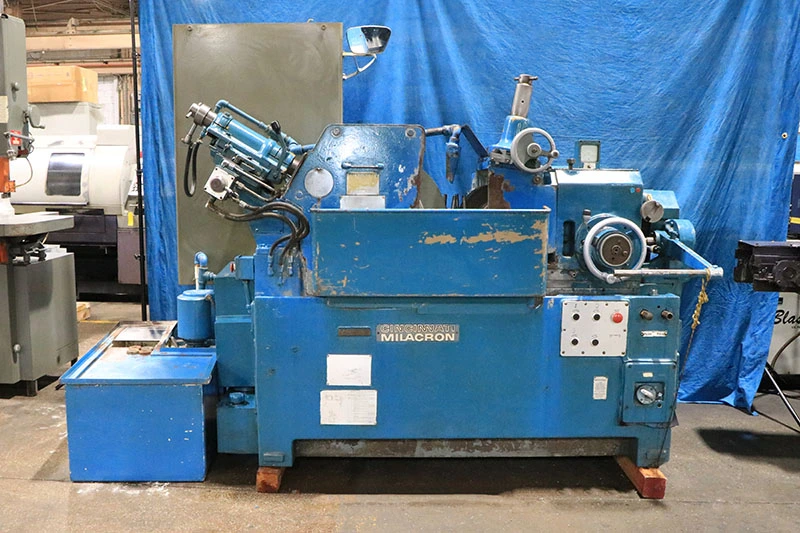

    CINCINNATI MILACRON CENTERLESS GRINDER

MODEL: CINCO 15

S/N: 350200079-6049

NEW: 1979

CAPACITY:

STD. THRU FEED AND INFEED

  WORK RESTS:                       0 TO 3" DIA.

MAX. WORK DIAMETER DEPENDING

  ON WHICH WORK REST IS ORDERED:    4" DIA.

WHEELS:

GRINDING WHEEL, WIDTH UP TO:        8"

DIA. CAPACITY:                      17" T0 24"

HOLE:                               12" STD.

REGULATING WHEEL,WIDTHS UP TO:      8"

DIA. CAPACITY:                      12" STD.

MAXIMUM:                            15"

MINIMUM:                            9-1/2"

HOLE:                               5"

DRIVE:

GRINDING WHEEL DRIVE MOTOR:         15 HP

REGULATING WHEEL DRIVE MOTOR:       1-1/2 HP

REGULATING WHEEL SPEEDS:

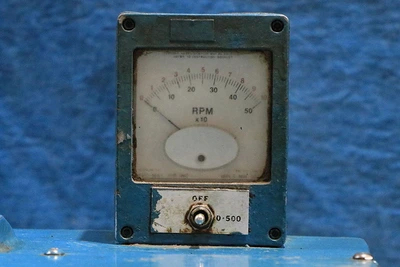

INFINITELY VARIABLE:                15 TO 300 RPM

SIZING ADJUSTMENT:

ACCURATE INFEED ADJUSTMENT

  BY HANDWHEEL GRADUATED IN:        0.001"

APPROXIMATE MACHINE WEIGHT:         8,100 LBS.

APPROXIMATE MACHINE DIMS:      90"L x 50"W x 64"H

EQUIPPED WITH:

"FILMATIC" GRINDING WHEEL SPINDLE BEARINGS

24" DIAMETER GRINDING WHEEL ON THE MACHINE

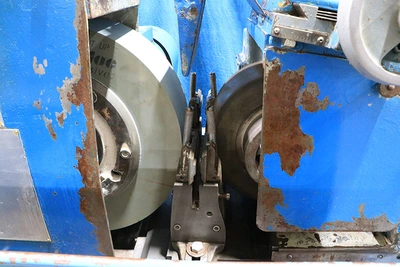

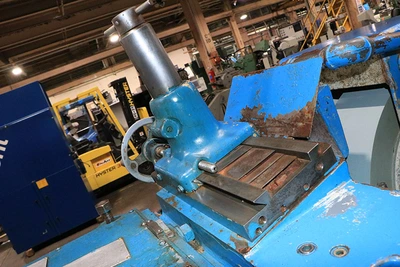

WORK REST

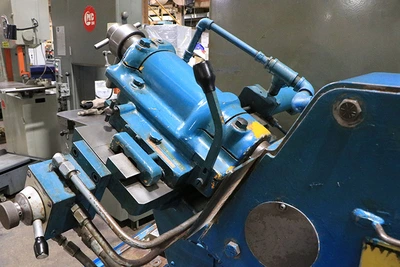

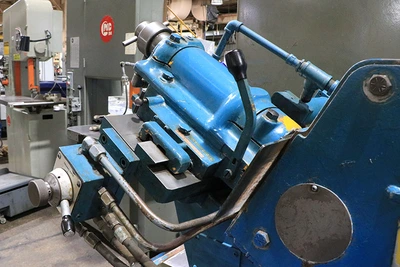

HYDRAULIC GRINDING WHEEL PROFILE TRUING DRESSER

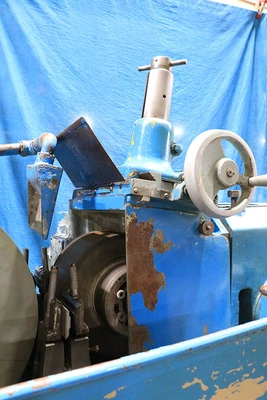

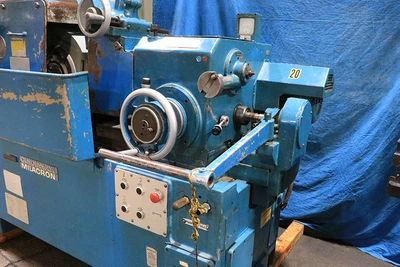

MANUAL REGULATING WHEEL TRUING DRESSER

FAST, SIMPLE TAPER ADJUSTMENT

INFINITELY VARIABLE REGULATING WHEEL SPEEDS

COOLANT SYSTEM

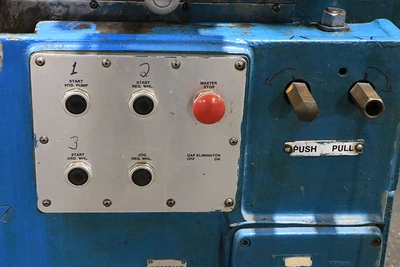

COMPACT ELECTRICAL CABINET ON MACHINE

TOOLING INTERCHANGEABLE WITH "OM" & "EA" MODELS

MACHINE IS WIRED PRESENTLY FOR 3/60/230 VOLTS

* * * F.O.B. OUR HARRISON, NJ FACILITY * * *

* * * INSPECT UNDER POWER IN OUR WAREHOUSE * * *

* * * EXCELLENT CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
