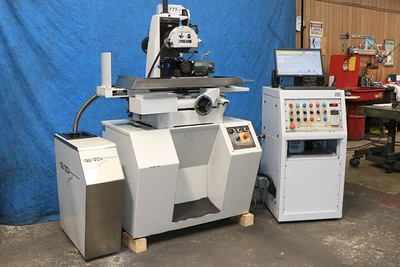

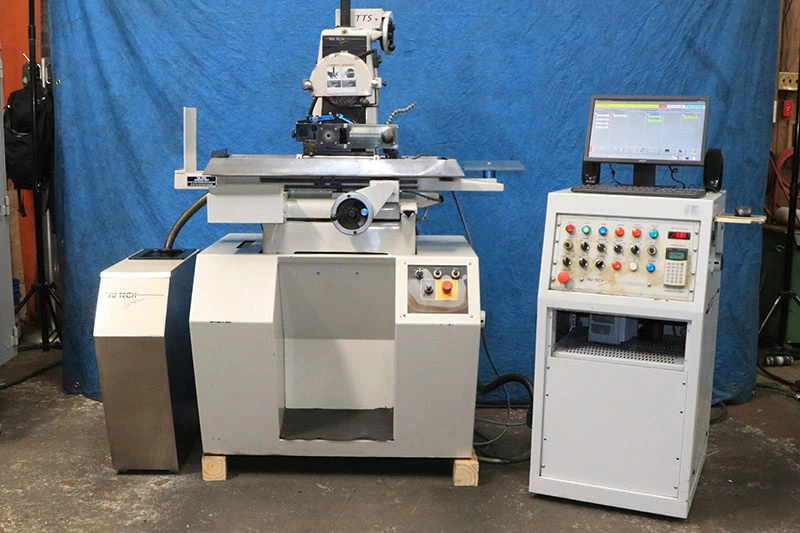

USED 2003 Tru-Tech TT-8000, CNC CENTERLESS, MANY UPGRADES '19 & '22

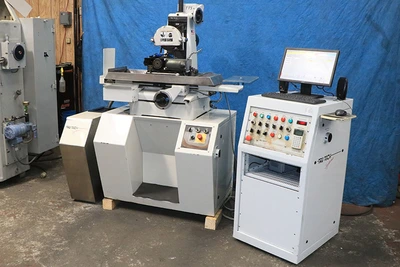

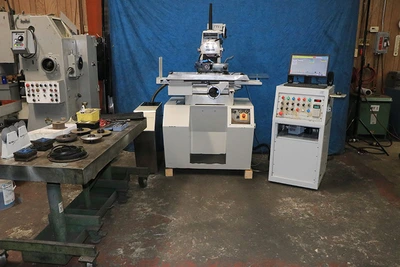

Tru Tech TT8000 3-Axis CNC

 Centerless Profile Grinder

** New Computer, Operating System, Software

   & Motion Control Board Purchased from

   Tru Tech in 2019 **

** Two New Drives 2022 **

** New Spindle 2022 **

   S/N: TTS-10189C       New: 2003

"The Tru Tech TT-8000 makes easy work of

 Ultra-Precision Centerless Profile Grinding

 projects making it ideal for carbide blank

 preparation. Integrated into the machine is

 Tru Tech's patented PP-8000 precision grinding

 unit which holds concentricity within

 30 millionths. Intuitive Pick-N-Place software

 allows easy profile programming in minutes and

 grinds most profiles with a standard 1A1 wheel.

 Capable of plunge, peel, in-feed, and

 thru-feed grinding."

SPECIFICATIONS:

Maximum Grind Length:............. 6"

Maximum Grind Diameter:........... 3"

Maximum Travel X-Axis:............ 18"

Maximum Travel Y-Axis:............ 10.75"

Maximum Travel Z-Axis:............ 6"

Standard Wheel Size:.............. 8" max.

Spindle Drive:.................... 2 HP

Maximum Velocity Y-Axis:.......... 15 IPM

Maximum Velocity Z-Axis:.......... 15 IPM

Input Increment:.................. 0.000010"

Floor Space Required for Ops. .. 8'6"L-R x 5'6"F-B

Shipping Weight:.................. 2,500 LBS

EQUIPPED WITH:

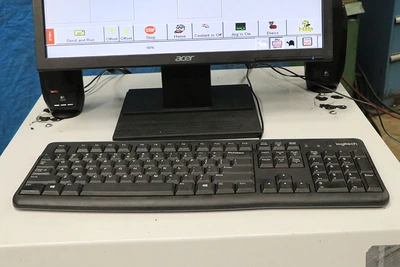

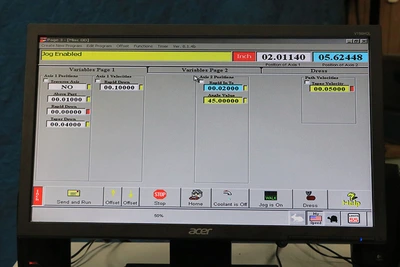

Trutech CNC Windows Based "Pick-Place" Controls

 & Programming  Software (Updated 2019)

 In Console with CRT.

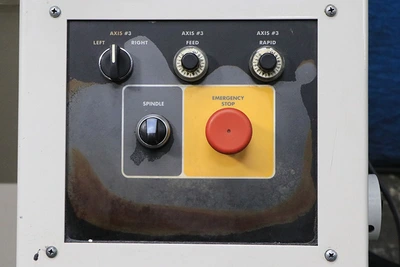

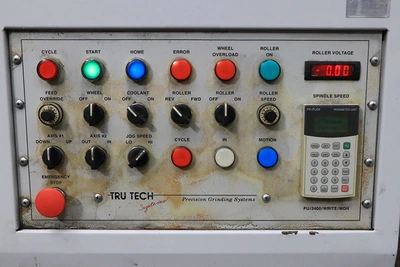

Push Button Controls.

Infinitely Variable Speed Grinding Spindle,

  Through the Control

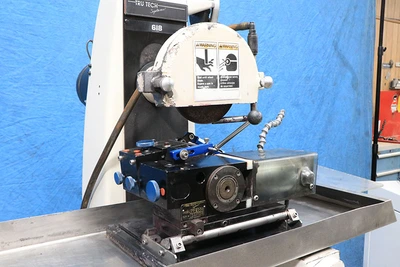

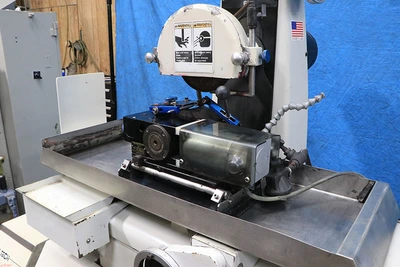

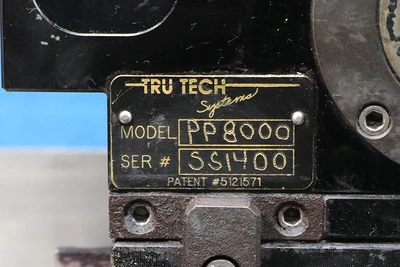

Tru Tech Model PP-8000 (S/N: SS1400)

 Centerless Grinding Unit,  Infinitely

 Variable Speeds Providied Through the Control

Tru Tech Coolant System, Stainless Steel Tank

Stainless Steel Grinding Environment

Machine is Presently Wired for 3/60/220 Volts

Comments from TruTech Systems:

"Quick Set-Up"

"Ultra-Precision"

"Plunge Grind, Peel Grind, In-Feed

  & Thru-Feed Capable"

"Intuitive Programming"

"Ideal For Carbide Blank Preparation."

"Easy To Use, Pick-N-Place Software Allows

  Easy Profile Programming  In Minutes And Grinds

  Most Profiles With A Stand 1A1 Wheel."

** Superb Condition & Appearance

      **- Original Paint - **

Special Note:

** Former Owner Purchased the Following Items,

    Enhancing this Machine:

New Computer, Operating System, Software & Motion

   Control Board Purchased from Tru Tech in 2019.

   This allows the machine to function far better,

   no computer latency, very quick CNC programming

   & execution.

(2) New Drives Purchased in 2022

New Spindle 2022

https://starcutter.com/tool-grinders/tru-tech-grinders/tru-tech-centerless-grinders/#tt8500

** Superior Condition & Appearance - Wow!! **

** Inspect Under Power in our Harrison, NJ Warehouse **

  **Link to video: https://youtu.be/BUo-7ladt_k **

FOR MORE INFORMATION: Call Andy at 973-497-7600
