USED 1995 SMTW M1050A, NEW 1995,

2" Dia. Cap 15hp Motor HP SMTW M1050A, NEW 1995, CENTERLESS GRINDER

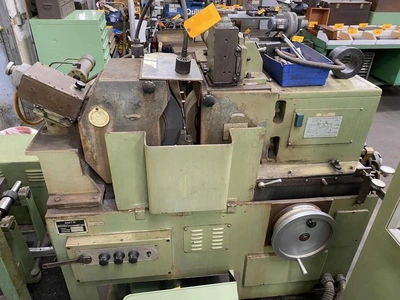

  SMTW CENTERLESS GRINDER

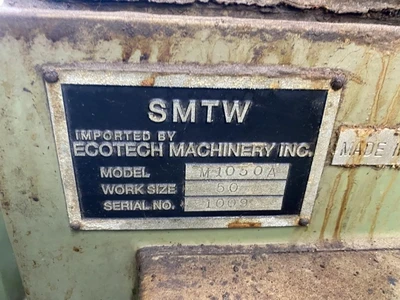

MODEL: M1050A    S/N: 1009    NEW:  1995

Work Capacity: 2" Diameter

Grinding Wheel - Wheel Size (DxWxB): 16 x 6 x 8 Inches

Grinding Wheel - Horsepower: 14.75 HP

Grinding Wheel - Wheel Speed: 1668 RPM

Grinding Wheel - Surface Speed: 6855 SFM

Grinding Wheel - Dresser Unit: Variable Hydro Feed/Template Forming

Grinding Wheel - Dress Swivel: 1 Axis/± 3 Degrees

Grinding Wheel - Spindle Bearing: Cantilever Type/5 Shoe Hydrodynamic

Regulating Wheel - Wheel Size (DxWxB): 12 x 6 x 5 Inches

Regulating Wheel - Wheel Speed (Variable): 20 to 200 RPM

Regulating Wheel - Horsepower (DC): 2 HP

Regulating Wheel - Vertical Swivel: - 2 Degrees/+ 5 Degrees

Regulating Wheel - Horizontal Swivel: -1 Degrees/+3 Degrees

Regulating Wheel - Hand Wheel/Rev: 0.016"

Regulating Wheel - Hand Wheel/Div: 0.0001"

Regulating Wheel - Maximum Travel RP: 0.07"/0.13"

Regulating Wheel - Maximum Travel HW: 4 Inches

Regulating Wheel - Spindle Bearing: Cantilever Type/Bushing and Angular

Hydraulic System - Pressure: 114/128 PSI (Working) 14/21 PSI (Lub.)

Hydraulic System - Reservoir: 30 Gallon 32 ISO Viscosity Grade

Hydraulic System - Horsepower: 1.5 HP

Coolant System - Horsepower: 0.12 HP

Coolant System - Reservoir: 35 Gallons

Overall Size Machine: 70" L-R x 65" F-B x 62" H

Electric Cabinet: 26" L-R x 22" F-B x 60" High

Estimated Total Weight: 6,500 Lbs.

EQUIPPED WITH:

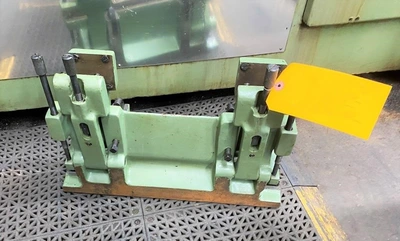

Infeed & Throughfeed Capability, with "BOTH" INFEED & THRUFEED Work Rests

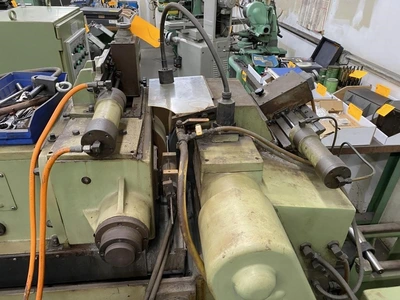

Hydraulic Swiveling Wheel Head and Regulation Wheel Dressers

Motor and Belt Guarding

Machine Work Light

Wheel Guards

Cycle Features:

Thru Feed Grind, Plunge Grind, Work Ejection, Reg. Wheel Variable

 Speed, Feed Start, Feed Retraction, Sparkout Delay,

 Hydraulic & Wheel Start - Stop

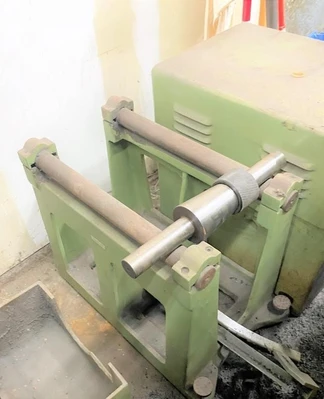

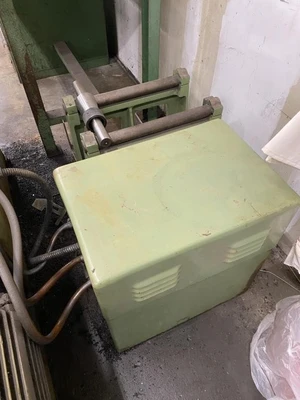

Static Type Wheel Balancing Stand and Arbor

Wedge Type Leveling Pads

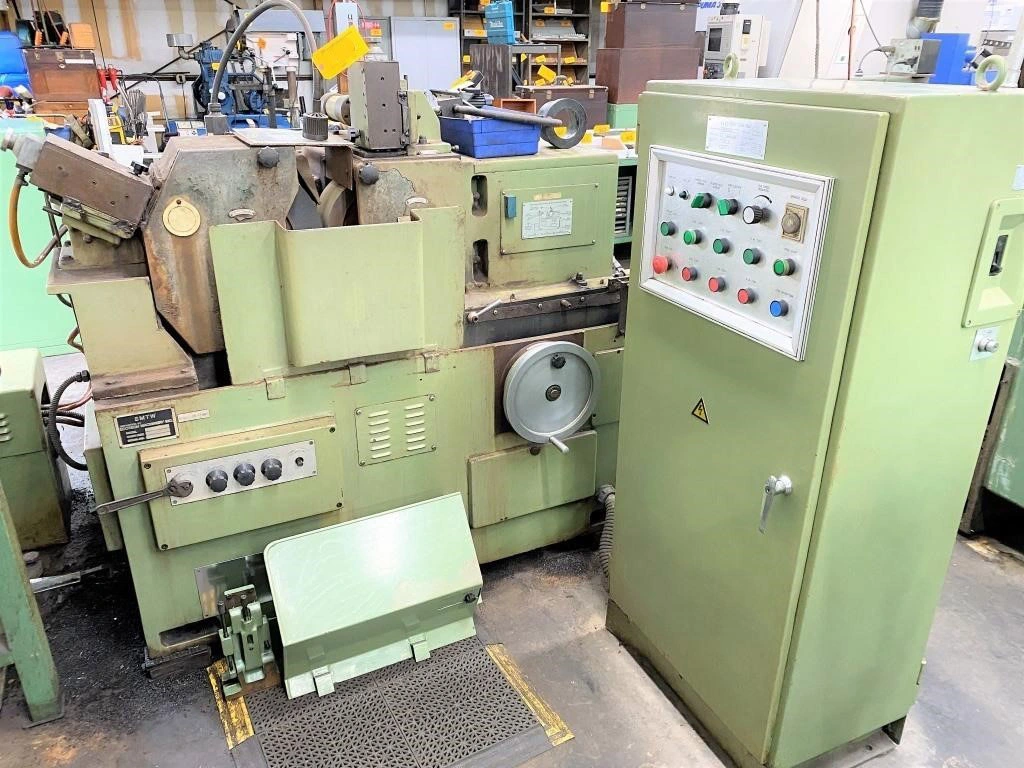

Free Standing Control Panel

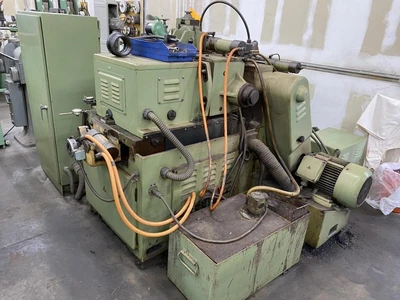

External Hydraulic Tank with Pump

Coolant System

Wired Presently for 3 Phase, 60 Cycle, 230 Volts

Total KVA: 30 KVA

** SUPERB CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
