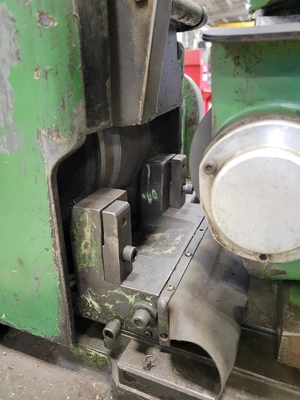

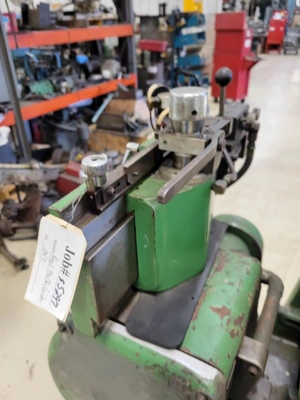

USED 1992 Royal Master TG12X3, REBUILT BY RMG IN 1998
Overview
Description
1.5" Dia. Cap 7.5hp Motor HP Royal Master TG12X3, REBUILT BY RMG IN 1998 CENTERLESS GRINDER, AIR-SENSING DRESSERS, AUTO CYCLE/AUTO INFEED, CLNT
Specifications

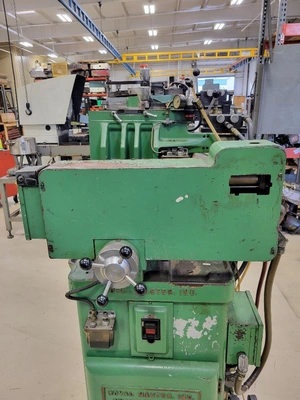

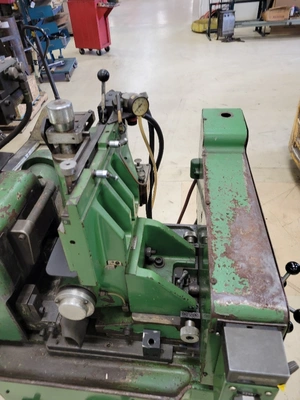

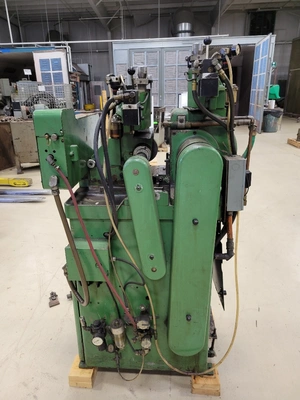

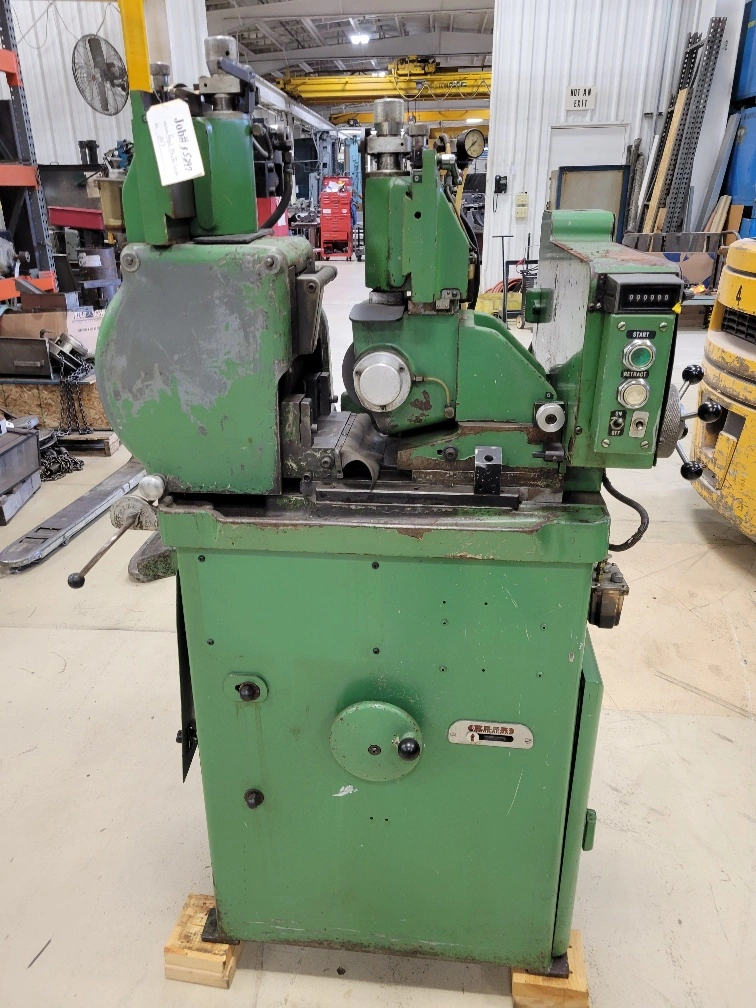

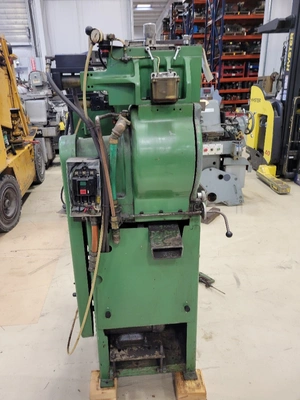

ROYAL MASTER TG12X3 CENTERLESS GRINDER
WITH AUTO CYCLE OPTION, REBUILT BY
ROYAL MASTER IN 1998
S/N: 247
CAPACITY:
INFEED AND THRUFEED ........ 0.004" TO 1.5" DIA.
LENGTH ..................... 12' ON 0.5" DIA.
MAXIMUM GRINDING WHEEL ..... 12" DIA. x 3.5" WIDE
MINIMUM GRINDING WHEEL ..... 10" DIA. x 1/4" WIDE
MAXIMUM REGULATING WHEEL ... 6" DIA. x 3.5" WIDE
MINIMUM REGULATING WHEEL ... 1/4" WIDE W/SPOOL
SPINDLE SPEEDS:
GRINDING WHEEL ............. CONSTANT SPEED 2,040 RPM
REGULATING WHEEL ........... INF. VARIABLE 25 TO 480 RPM
REGULATING WHEELHEAD:
MAX. ANGLE OF TILT FOR THRUFEED
GRINDING ......................... 6 DEGREES
MAX. SWIVEL FOR TAPER GRINDING ... 5 DEGREES
APPROXIMATE FLOOR SPACE ........ 24" X 48"
APPROXIMATE WEIGHT ............... 2,800 LBS
EQUIPPED WITH:
AUTOMATIC CYCLE OPTION .... PROVIDES AUTOMATIC INFEED
OF THE REGULATING WHEEL
INFINITELY VARIABLE REGULATING WHEEL SPEEDS

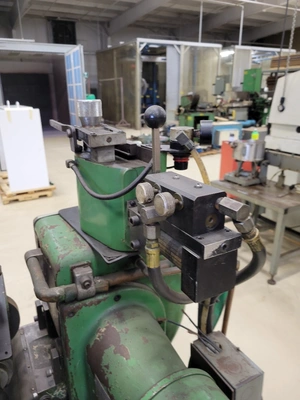

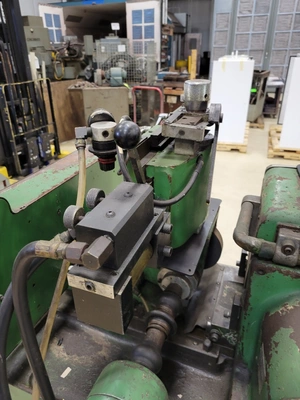

AIR-SENSING HYDRAULIC DRESSER FOR THE GRINDING WHEEL
AIR-SENSING HYDRAULIC DRESSER FOR THE REGULATING WHEEL

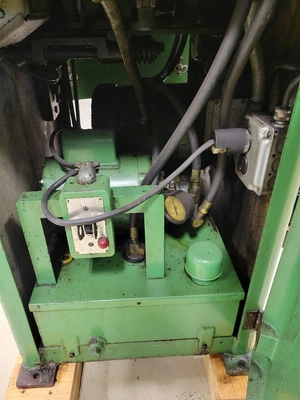

SELF CONTAINED HYDRAULIC SYSTEM
COOLANT SYSTEM
WORK REST
DIAL INDICATOR FOR REG HOUSING
7.5 H.P. MAIN DRIVE MOTOR
3/60/208-230-460 VOLT ELECTRICS
MACHINE IS WIRED FOR 440 VOLTS
LINK TO VIDEO: https://youtu.be/UzO2QE3U8uI?si=O6Rc1A4gCnXSHg95
** IN STOCK, UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** APPEARNCE IS QUITE NICE - ORIGINAL PAINT **
** AS NOTED, FACTORY REBUILT BY RMG IN 1998 **
** INSPECT IN OUR HARRISON, NJ WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
