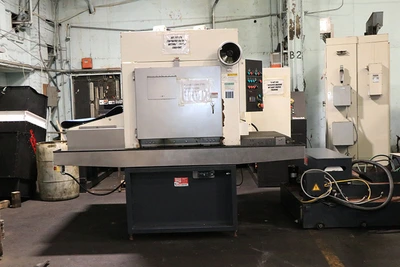

USED 2017 Timesaver LYNX 37MWT-DB-60, 2017, GRINDING HEAD & BRUSH HEAD
Overview
Description

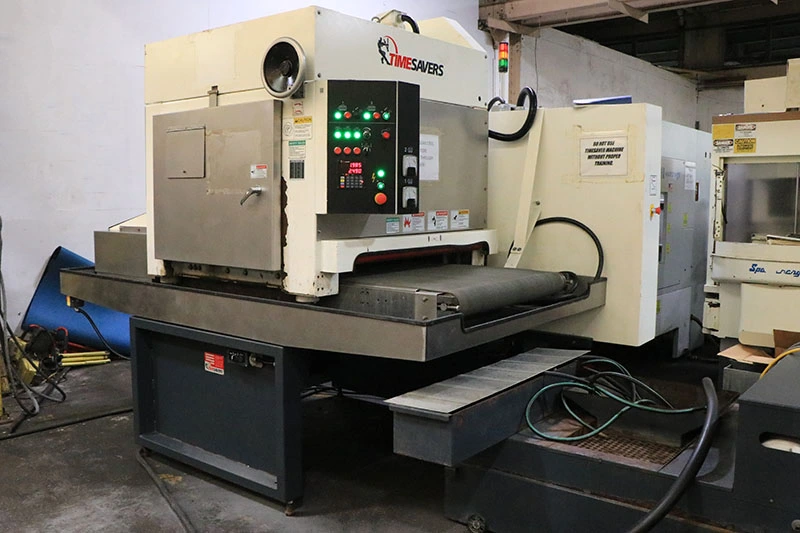

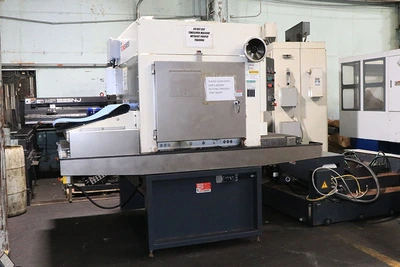

37" Width Timesaver LYNX 37MWT-DB-60, 2017, GRINDING HEAD & BRUSH HEAD BELT GRINDER, WET, COOLANT SYSTEM, AIR-KNIFE DRYER
Specifications
37" TIMESAVERS "LYNX SERIES"
"WET"
TWO HEAD BELT GRINDER,
"DEBURRING" & "FINISHING"

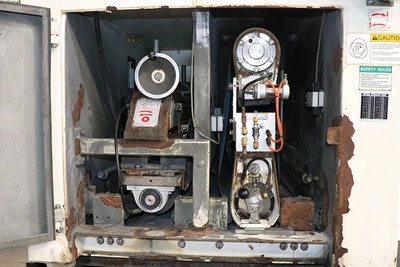

1st HEAD IS A GRINDING HEAD
2nd HEAD BRUSH HEAD
MODEL: LYNX 37MWT-DB-60
S/N: 33689
NEW: 2017
SPECIFICATIONS:

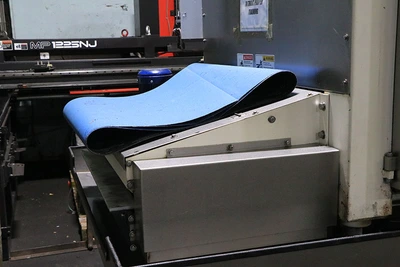

37" wide x 60" belt length

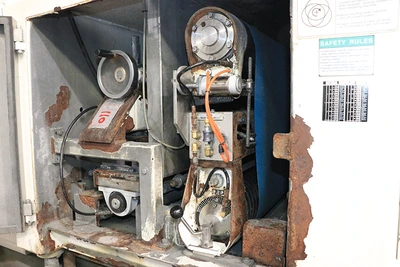

Drum head type standard
6" diameter drum
6" diameter brush
Air Operated Disc Brakes
0-8" opening (38" constant passline)
Double infeed & outfeed holdown rolls
15-45 FPM feed speed A/C (reversing)
Automatic lubrication system

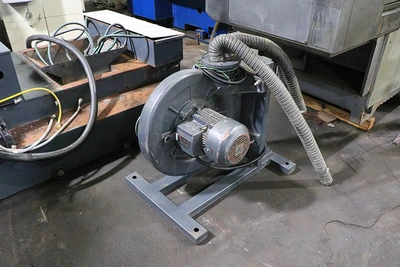

Air knife dryer with blower

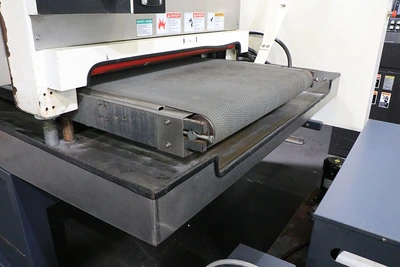

Conveyor belt tracking

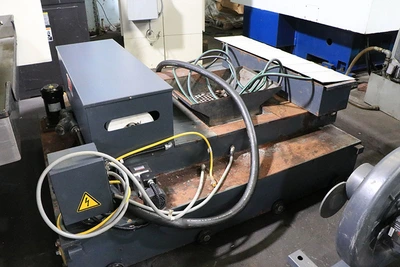

Coolant/filter system (APF 40LP)
Stainless steel construction where needed
Hour meter

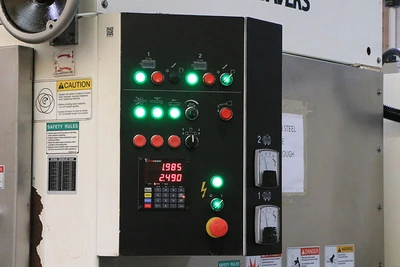

Main motor load meter
23" infeed loading area
Four (4) bed jacks
Quick release outbound support
Through-beam abrasive belt tracking
8" min. part length
Infeed stop bar
20 H.P. Grinding Belt Head Motor
15 H.P. Brush Head Motor
Compressed Air Requirements: 2 CFM @ 90 PSI
Wired Presently for 3/60/208 Volts, Max. Full Load Amps is 126.7
Approx. Weight: 9,300 Lbs.
Link to Video: https://youtu.be/0pJMNxDJFBI?si=LNqQr3a1f3q0u3HY
** Inspect Under Power in our Harrison, NJ Warehouse **
** Superior Condition & Appearance - Low Use - Original Paint **
FOR MORE INFORMATION: Call Andy at 973-497-7600
