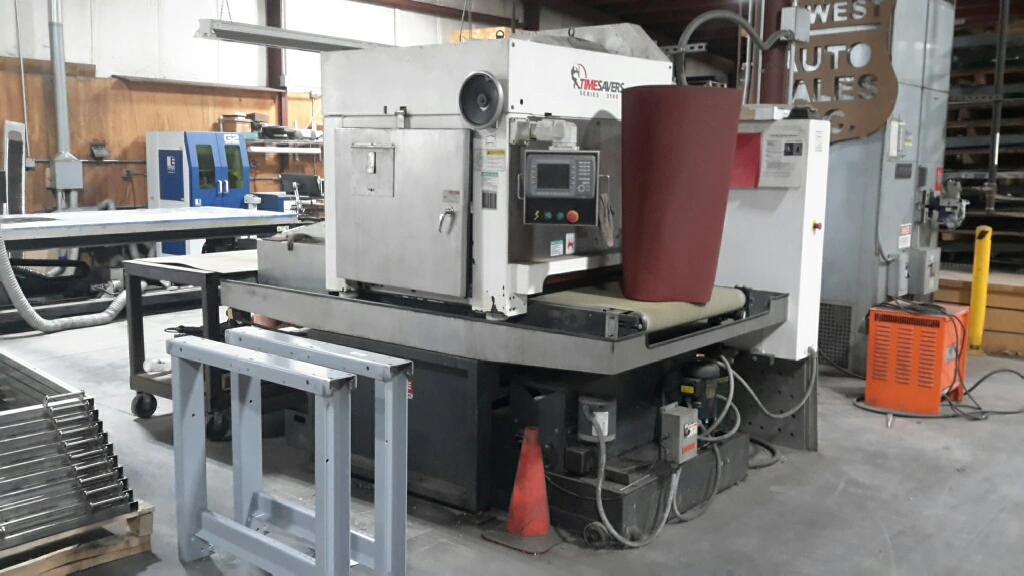

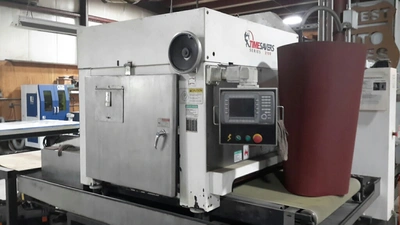

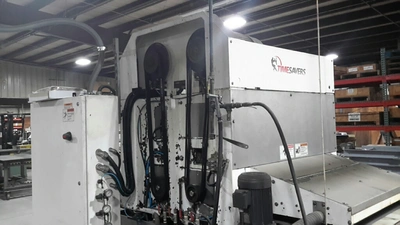

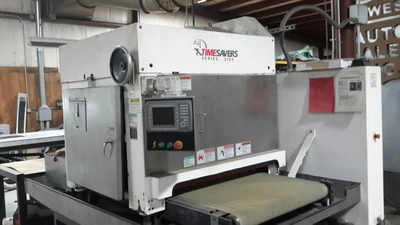

USED 2008 Timesaver 3121-13-04, LYNX, 2008, GRIND & BRUSH HEADS
Overview
Description
37" Width Timesaver 3121-13-04, LYNX, 2008, GRIND & BRUSH HEADS BELT GRINDER, WET
Specifications
37" TIMESAVER "3100 SERIES" "LYNX"
“WET” COMBINATION BELT/BRUSH
FINISHING MACHINE
MODEL: 3121-13-04 S/N: 31072 NEW: 2008
SPECIFICATIONS:

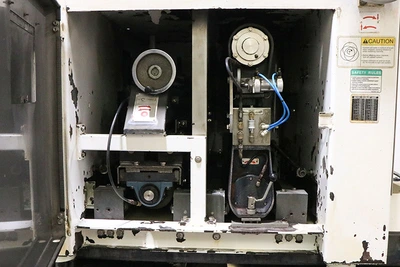

Drum head type standard
6" diameter drum & brush
60" belt length
Disc brakes on main motor
Mitsubishi M700 PLC Control,

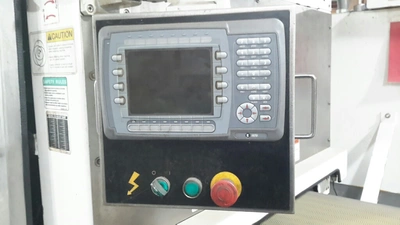

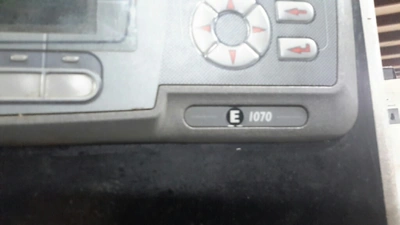

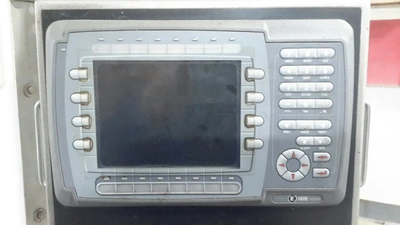

- Color graphical interface (HMI)
Digital thickness readout
0 to 8" opening (30" to 38" constant passline)

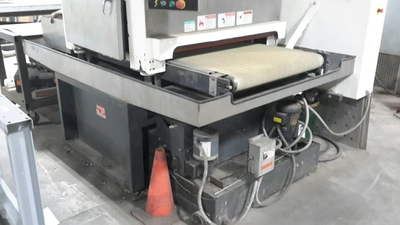

Double infeed & outfeed holdown rolls
15-45 FPM feed speed A/C (reversing)
Auto lube on high speed bearings
Air knife dryer
Conveyor belt tracking
Coolant/filter system (APF 40LP)
Stainless steel construction where needed
Hour meter
Main motor load meter
23" infeed loading area
Four (4) bed jacks
Quick release outbound support
Through-beam abrasive belt tracking
8" min. part length
Infeed stop bar
UL listed controls
20 H.P. Sanding Head
15 H.P. Brush Head, with Oscillation
Machine is Wired for 3/60/460 Volts, 65.2 FLA
“Belt/brush model is suited for superior deburring
and finishing of parts in a wet machine.
The addition of a “Scotch-Brite” brush-on
combination model improves deburring
of edges and punched areas.”
* Superior Condition & Appearance **
** Machine has Many New Components **
** Inspect Under Power in our our Harrison, NJ Warehouse **
FOR MORE INFORMATION: Call Andy at 973-497-7600
