USED Setco SPL, CAN BE USED WITH (2) GRINDING BELTS PER SIDE

7.5HP Motor Setco SPL, CAN BE USED WITH (2) GRINDING BELTS PER SIDE BUFFER POLISHER, BACK STANDS

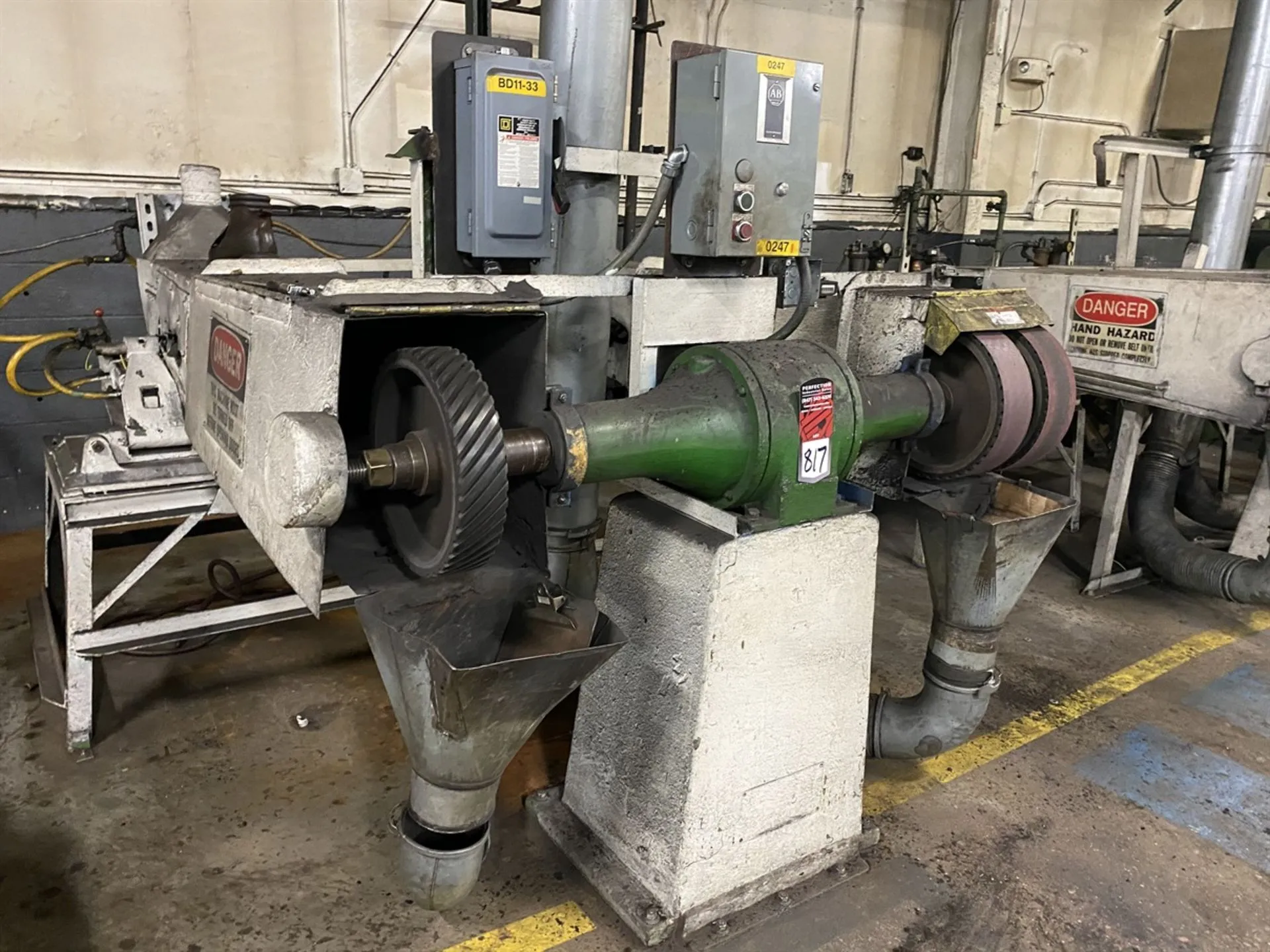

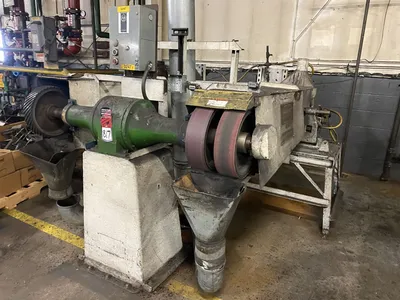

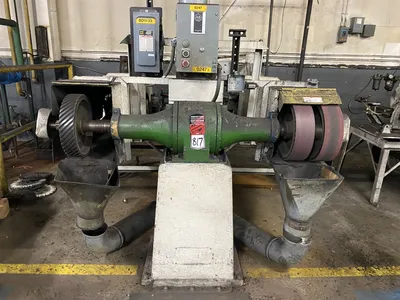

SETCO MODEL SPL TWO SPINDLE SINGLE SPEED

 POLISHING LATHE WITH GUARDING & BACK STANDS,

 SET-UP TO BE USED WITH (2) GRINDING BELTS PER SIDE

MACHINE SERIAL NUMBER 77087

OVERALL SPINDLE LENGTH, END TO END ........ 65"

DISTANCE BETWEEN WHEELS PRESENT SET-UP .... 45"

ARBOR DIA. x WIDTH BETWEEN FLANGES ........ 1- 1/2" x 12" LONG

APPROX. MACHINE DIMENSIONS .............. 96”"L-R x 96"D x 68"H

APPROX. MACHINE WEIGHT .................. 1,100 LBS.

EQUIPPED WITH:

WHEEL COVERS FOR LEFT & RIGHT SPINDLES

BACK STANDS MADE FOR A TOTAL OF (4) BELTS, (2) ON EACH SIDE.

 SEPARATE AIR-TENSIONING UNITS FOR EACH BELT.

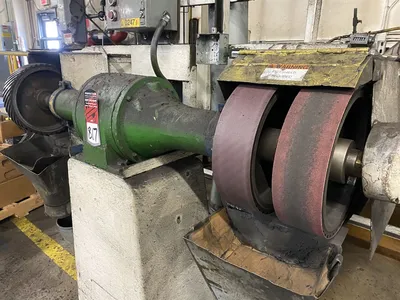

RIGHT-HAND SIDE HAS (2) BELT SET-UPS, WITH (2) CONTACT WHEELS THAT

 ARE 14" DIAMETER x 4" WIDE, AND (2) IDLER WHEELS THAT ARE 8" x 4.5" WIDE.

 THE TWO R.H. WHEELS ARE 2.5" APART.

LEFT-HAND SIDE HAS TWO BELT SET-UPS, WITH (1) CONTACT WHEELS THAT

 IS 14" DIAMETER x 3" WIDE, AND (2) IDLER WHEELS THAT ARE 8" x 4.5" WIDE.

SET UP TO ACCEPT DUST COLLECTION

7.5 H.P. 3/60/230-460 VOLT MOTOR AND ELECTRICAL CONTROLS

SPINDLE SPEED IS SINGLE SPEED, NOT VARIABLE

PUSH BUTTON STARTER/OFF

MACHINE IS WIRED FOR 460 VOLT OPERATION, 10 AMPS SERVICE REQUIRED

** EXCELLENT CONDITION AS TAKEN FROM SERVICE **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
