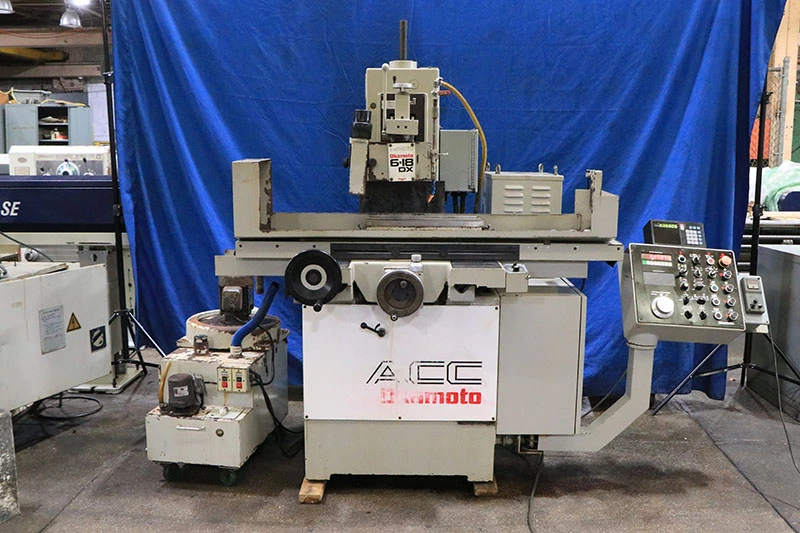

USED 1995 Okamoto ACC-618DX3, 1995, PROG. AUTO IDF, 3X AUTO FEEDS

6" Width 18" Length Okamoto ACC-618DX3, 1995, PROG. AUTO IDF, 3X AUTO FEEDS SURFACE GRINDER, EMC, DRO, OTW DRESSER, COOLANT

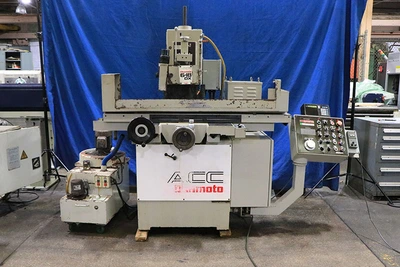

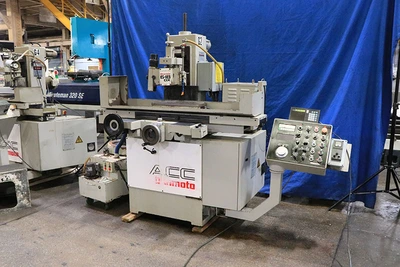

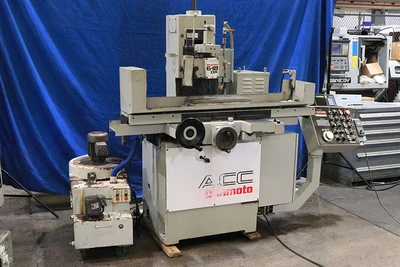

  6" X 18" OKAMOTO "HIGH-PRECISION" URFACE GRINDER

   WITH "DX" PROGRAMMABLE AUTO INCREMENTAL DOWNFEED,

   WITH MANY OPTIONAL ACCESSORIES (SEE BELOW)

 MODEL: ACC-618-DX3     S/N: 45183     NEW: 1995

NOMINAL GRINDING CAPACITY ............ 6" x 18"

MAXIMUM HEIGHT UNDER 8" WHEEL ........ 11.7"

TABLE SPEED, INFINITELY VARIABLE ..... UP TO 82' FPM

MAX. LONGITUDINAL TABLE MOVEMENT,

 MANUAL .............................. 24"

AUTO CROSS FEED INCREMENT ............ 0.002" TO 0.40"

AUTO CONINOUS CROSSFEED .............. 4' TO 40' FPM

CROSSFEED, MANUAL,

  HAND FEED PER REV. ................. 0.25"

  GRAD. OF HANDWHEEL ................. 0.0004"

FINE FEED KNOB FOR CROSSFEED,

  GRAD. .............................. 0.00002"

MAX. CROSSFEED, MANUAL ............... 7"

AUTO INCREMENTAL DOWNFEED,

 INCREMENTS ........................ 0.00005" TO .0015"

POWER RAPID WHEEL POSITIONING RATE ... 16" IPM

SPINDLE MOTOR ........................ 2 H.P.

INFINITELY VARIABLE SPINDLE SPEEDS ... YES

WHEEL SIZE ...................... 8"DIA. x 1"W x 1.25"B

APPROX. DIMS. FOR OPERATION ........ 85" x 63"D x 70"H

APPROX. MACHINE WEIGHT ............... 2,500 LBS.

  EQUIPPED WITH:

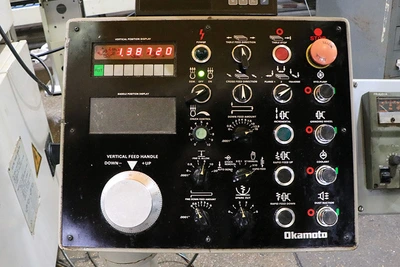

PROGRAMMABLE ELECTRONIC AUTO INCREMENTAL DOWNFEED:

-SERVO DRIVEN DOWNFEED

-AUTO INCREMENTAL DOWNFEED FOR BOTH SURFACE & PLUNGE

  OPERATIONS

-DUAL RATE AUTO DOWNFEED W/COARSE & FINE SELECTIONS

-DIGITAL DISPLAY OF VERTICAL AXIS ON THE CONSOLE

-SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK AT

  COMPLETION OF GRIND CYCLE

-ELECTRONIC HANDWHEEL FOR MANUAL VERTICAL MOVEMENT

  W/EACH GRAD. EQUIVALENT TO .00001", .0001" OR .001"

-POWER RAPID WHEEL POSITIONING

HYDRAULIC TABLE TRAVERSE & AUTOMATIC CROSSFEED

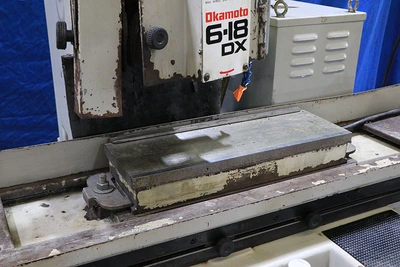

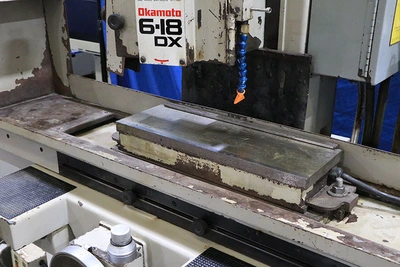

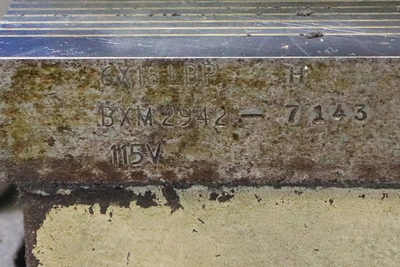

6" X 18" O.S. WALKER "LBP" FINE-DIVISION ELECTRO-MAGNETIC CHUCK

VARIABLE POWER NEUTROFIER CONTROL, FROM THE CONSOLE CONTROL

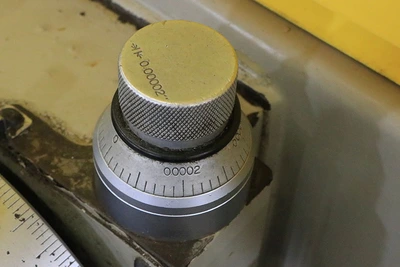

FINE FEED KNOB FOR CROSSFEED, .00002" GRADUATION

MANUAL OVER-THE-WHEEL DRESSER,

  WITH MICROMETER ADJUSTMENT OF THE FEED

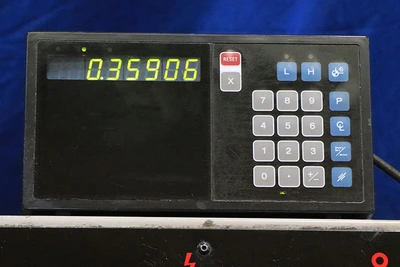

SEPARATE "SONY" 1-AXIS DIGITAL READOUT FOR THE CROSS AXIS,

 WITH 0.00001" RESOLUTION

COMBINATION COOLANT SYSTEM & DUST COLLECTOR

GUARDING FOR USING THE COOLANT

INLET BY THE WHEEL GUARD, FOR DRY GRINDING

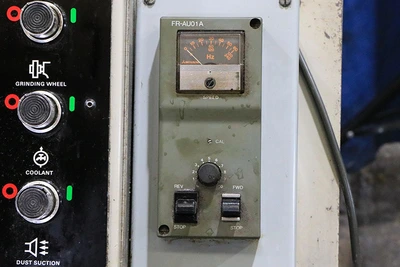

"FUJI" FVR-K5" ELECTRONIC VARIABLE SPEED CONTROL,

 FOR THE SPINDLE SPEEDS, WITH "MITSUBISHI" FR-AU01A"

 RHEOSTAT CONTROL FOR THE SPEED, WITH SPEED DISPLAY.

2 H.P./230-460 VOLT SPINDLE MOTOR

MACHINE IS WIRED FOR 3/60/220 VOLTS

LINK TO VIDEO: https://youtu.be/Zrd29n500Co?si=lRWMpkUPWRfXDz6n

** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
