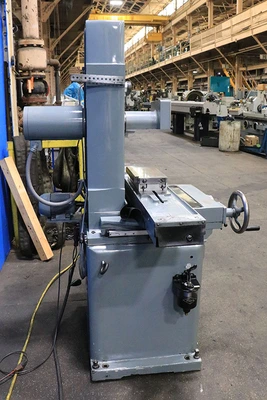

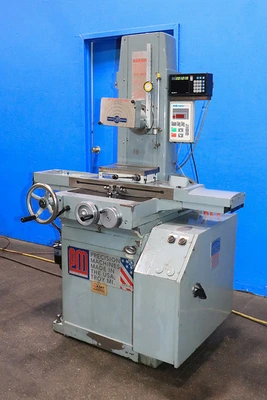

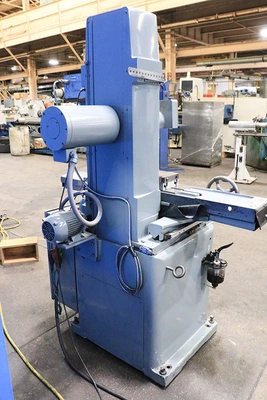

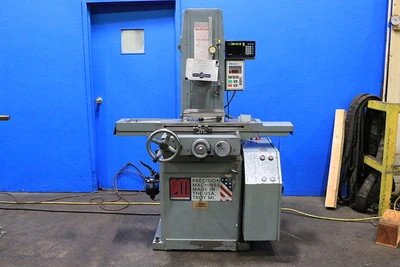

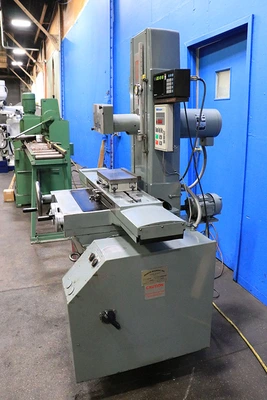

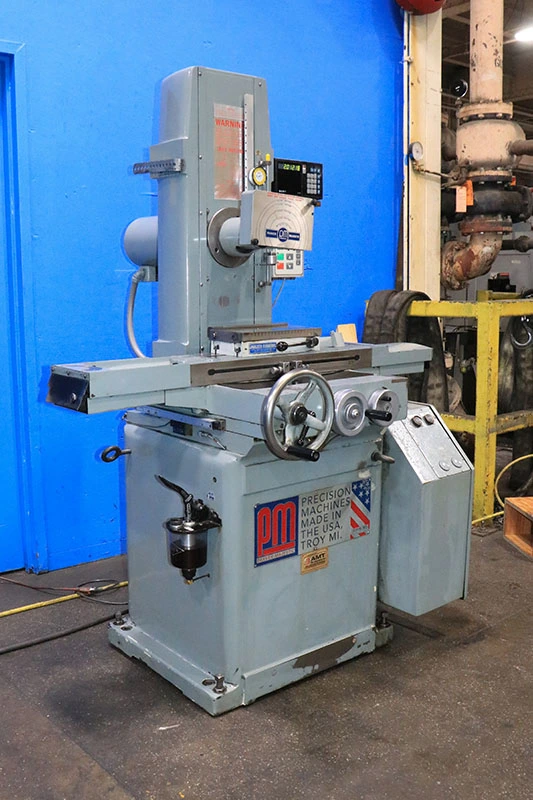

USED 1994 Parker-Majestic 2Z, POWER ELEV., DRO, VARI-SPD SPINDLE

6" Width 18" Length Parker-Majestic 2Z, POWER ELEV., DRO, VARI-SPD SPINDLE SURFACE GRINDER, PMC

          6" X 18" PARKER-MAJESTIC

            "SUPER-PRECISION"

              "MADE IN USA"

        HAND FEED SURFACE GRINDER

  ** "SONY" #LH-31A SINGLE-AXIS DIGITAL READOUT,

             FOR THE CROSS FEED,

     HIGH RESOLUTION, READS TO 0.00002" **

 ** "VOLKMANN" #AD-2 ELECTRONIC VARIABLE SPEED

      CONTROL, FOR THE GRINDING WHEEL SPINDLE **

MODEL: #2Z      S/N: 5934ZV-94      NEW: 1994

LONGITUDINAL TABLE TRAVEL .................... 18"

TABLE TRAVEL PER ONE REV. OF HANDWHEEL ....... 3"

TRANSVERSE TABLE TRAVEL ...................... 6"

CROSS HANDWHEEL GRAD. ........................ 0.0001"

VERTICAL HANDWHEEL GRAD. ..................... 0.001"

VERTICAL HANDWHEEL VERNIER TYPE INDICATOR .... 0.0001"

ONE REV. OF VERT. HANDWHEEL IS ............... 0.010"

VERTICAL TRAVEL (FROM TABLE TOP TO SPINDLE

CENTERLINE) .................................. 20"

APPROXIMATE MACHINE WEIGHT ................... 1,800 LBS

STANDARD MACHINE FEATURES:

ALL THREE HANDWHEELS @ OPERATOR'S HIP LEVEL

POWER ELEVATION OF WHEELHEAD MOVEMENT

STANDARD HAND FEED W/STEEL TAPES WOUND AROUND

 STEEL DRUMS.

TEFLON ON WAYS

CROSS FEED SADDLE LOCK

"BIJUR" LUBRICATOR

EQUIPPED WITH:

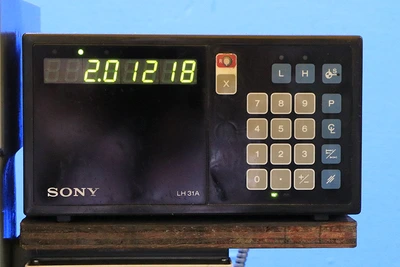

"SONY" #LH-31A SINGLE-AXIS DIGITAL READOUT,

 FOR THE CROSS FEED,

 HIGH RESOLUTION, READS TO 0.00002"

"PARKER-MAJESTIC", "SUPER-PRECISION",

 1.5 H.P./3/60/230-460 VOLT, DIRECT DRIVE SPINDLE

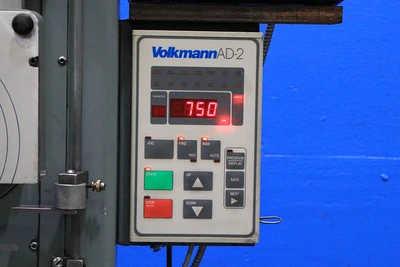

"VOLKMANN" #AD-2 ELECTRONIC VARIABLE SPEED DRIVE,

 PROVIDING INFINITELY VARIABLE SPINDLE SPEEDS

ORIGINAL P-M GRINDING WHEEL COVER

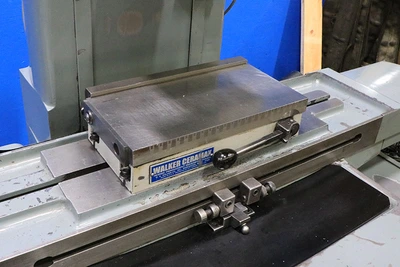

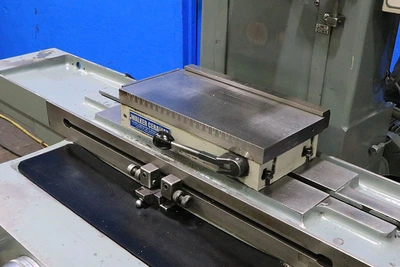

O.S. WALKER FINE-DIVISION PERMANENT MAGNETIC CHUCK

MACHINE IS WIRED FOR 3/60/220 VOLTS

** EXCEPTIONAL CONDITION & APPEARANCE - ORIGINAL PAINT **

** SUPER QUIET SPINDLE !! **

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
