USED 1994 Chevalier FSG-3A1020, 1994, NEW SPINDLE, 3X AUTO FEEDS
Overview
Description

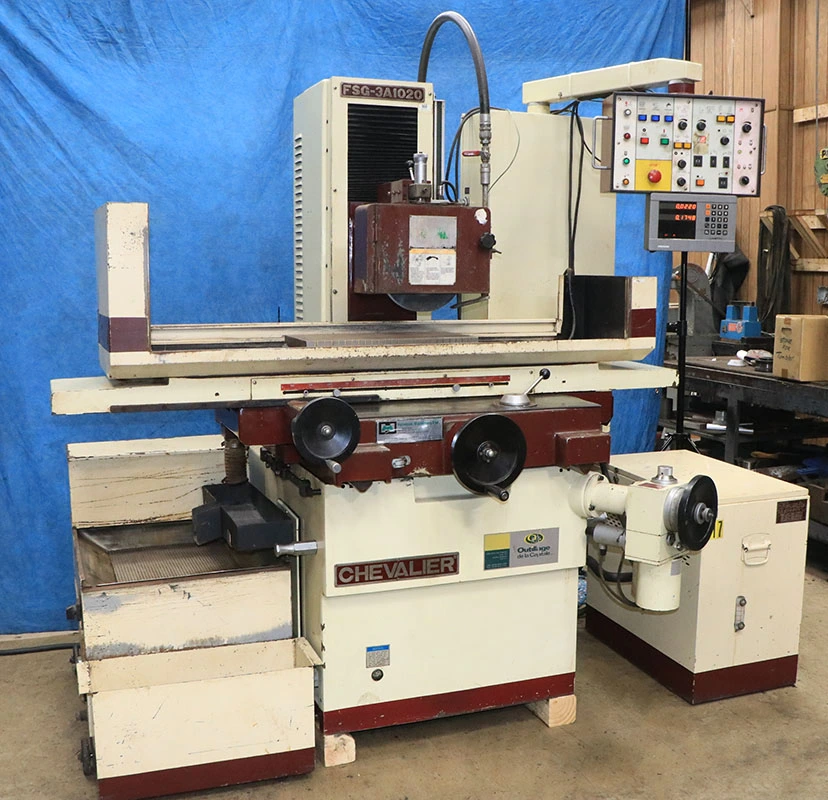

10" Width 20" Length Chevalier FSG-3A1020, 1994, NEW SPINDLE, 3X AUTO FEEDS SURFACE GRINDER, EMC, COOLANT, OTW DRESSER
Specifications

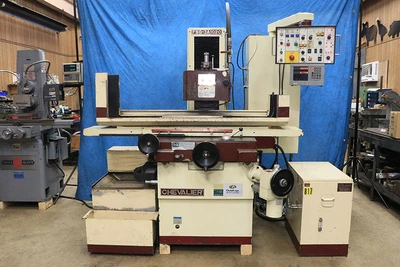

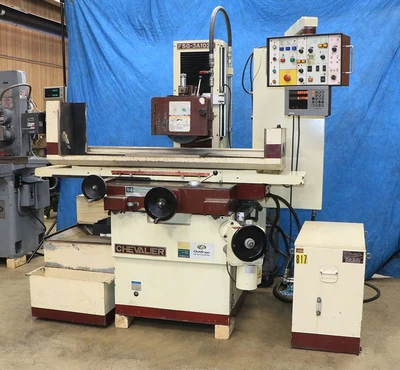

10" X 20" CHEVALIER PRECISION SURFACE GRINDER,
PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED,
12" GRINDING WHEEL,
WITH BRAND NEW SPINDLE!
MODEL: FSG-3A1020 S/N: N383C004 NEW: 1994
NOMINAL GRINDING CAPACITY ................... 10" X 20"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC ... 22- 7/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ...... 24- 3/8"
MAX. CROSSFEED TRAVEL, AUTOMATIC ............ 11- 7/16"
MAX. CROSSFEED TRAVEL, MANUAL ............... 11- 3/4"
DIST. FROM SPINDLE CENTER TO TABLE .......... 21- 1/2"
VARIABLE TABLE SPEED, HYDRAULIC .......... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ............ 0.02" TO 0.4"
POWER RAPID TRAVERSE (CROSS) ................ 48" IPM
CROSSFEED HANDWHEEL, PER GRADUATION ......... 0.001"
PER REVOLUTION .............................. 0.02"
AUTOMATIC INCREMENTAL DOWNFEED ......... 0.0001" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ........... 0.0005"
PER REVOLUTION .............................. 0.1"
MICROFEED ................................... 0.0001"
RAPID TRAVERSE RATE ......................... 13" IPM
SPINDLE MOTOR ............................... 3 HP
STANDARD GRINDING WHEEL ......... 12" DIA. x 1- 1/4" x 3"B
APPROX. WEIGHT .......................... 3,306 LBS.
APPROX. DIMENSIONS ...................... 85" X 48" X 65"H
MACHINE FEATURES:

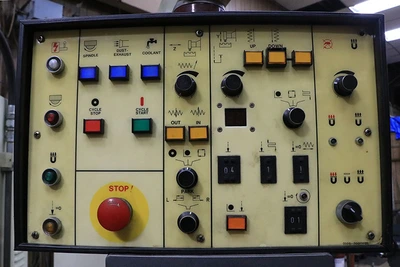

FULLY PROGRAMMABLE MICROPROCESSOR AUTO-CYCLE
CONTROL W/DIGITAL DISPLAY
AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE & SURFACE)
SPARKOUT CYCLE W/AUTOMATIC WHEELHEAD RETRACTION
@ COMPLETION OF GRIND CYCLE
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
ELECTRONIC CROSS & VERTICAL FEEDS
MICRO-DOWNFEED (.0001" GRAD.)
12" GRINDING WHEEL
EQUIPPED WITH:

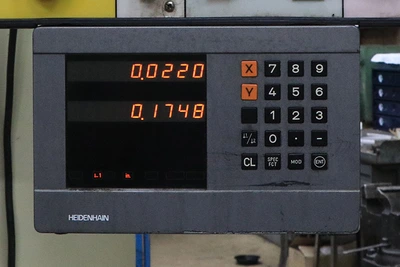

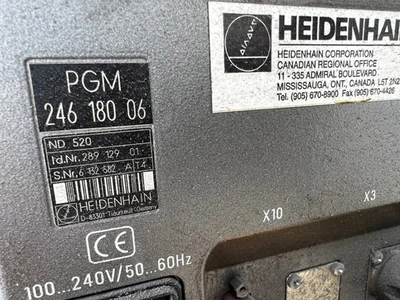

"HEIDENHAIN" MODEL ND 520 HIGH ACCURACY
"MADE IN GERMANY" 2-AXIS DIGITAL READOUT DISPLAY.

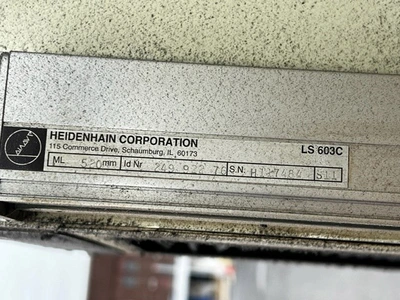

HEIDENHAIN HIGH ACCURACY "MADE IN GERMANY"
GLASS SCALES, MODEL LC 603C.
GRADUATIONS ON OUR MACHINE ARE IN METRIC (mm).

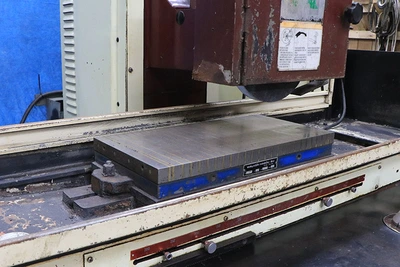

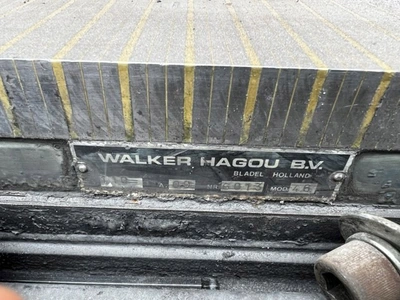

10" X 20" "WALKER-HAGOU" MADE IN THE NETHERLANDS
ELECTRO-MAGNETIC CHUCK
W/VARIABLE HOLD NEUTROFIER CONTROL ON THE MACHINE
CONTROL CONSOLE

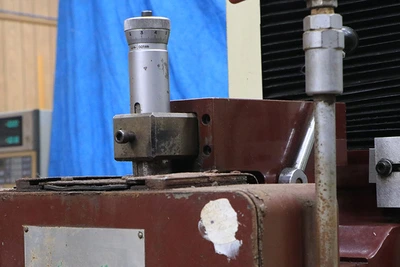

OVER-THE-WHEEL WHEEL DRESSER
COOLANT SYSTEM w/PAPER FILTRATION
EXTERNAL HYDRAULIC SYSTEM
AUTO LUBE SYSTEM
12" GRINDING WHEEL
5 H.P SUPER-PRECISION DIRECT DRIVE SPINDLE
MACHINE IS WIRED FOR 3/60/575 VOLTS.
TRANSFORMER FOR 230 OR 460 VOLTS AVAILABLE
TO PURCHASE FOR $675.
SPECIAL NOTE:
THIS MACHINE HAS A BRAND NEW SPINDLE INSTALLED!
https://youtu.be/jGRmPp4QS84?si=NLfHIuqrvMkEFoC7
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** ORIGINAL PAINT - EXCELLENT CONDITION **

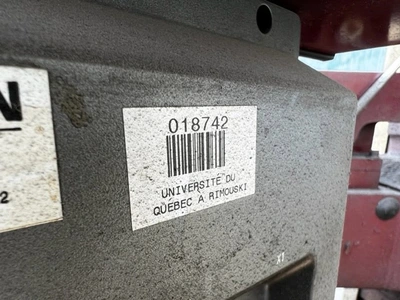

** FROM THE "UNIVERSITE DU QUEBEC" IN RIMOUSKI **
FOR MORE INFORMATION: Call Andy at 973-497-7600
