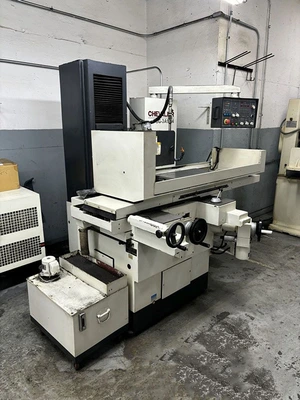

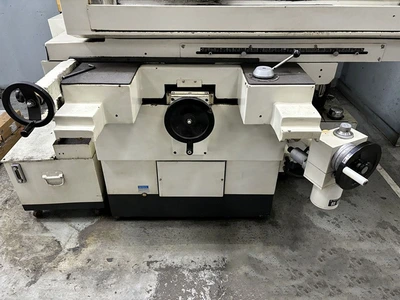

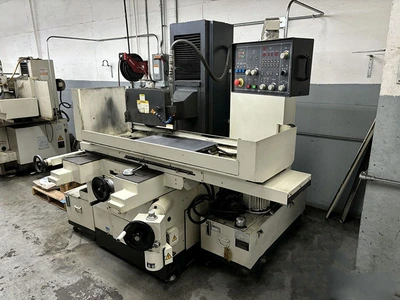

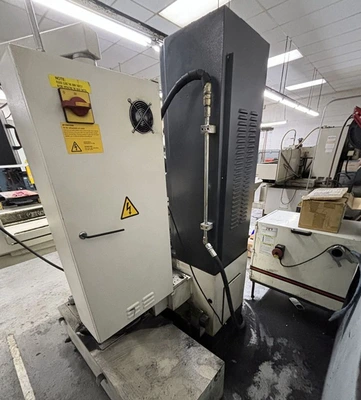

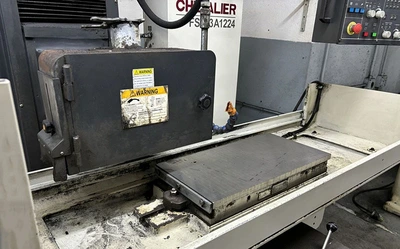

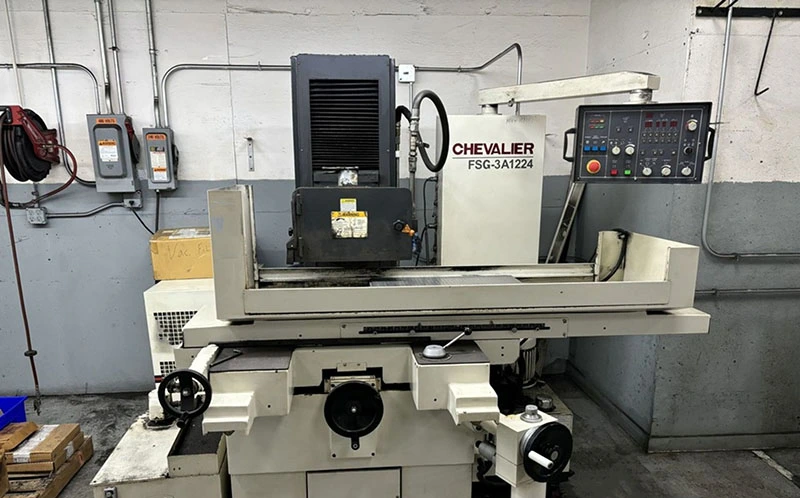

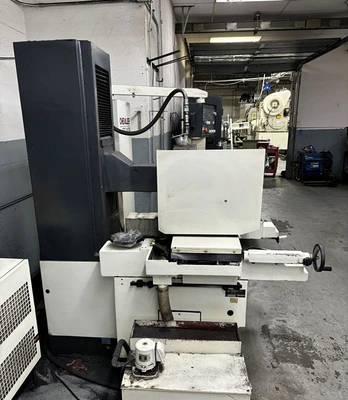

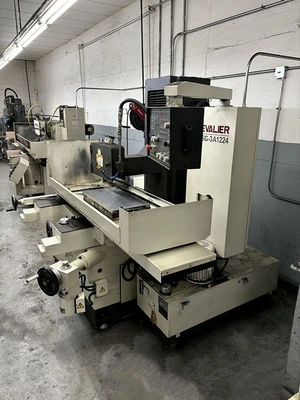

USED 2013 Chevalier FSG-3A1224, 2013, 3X AUTO FEEDS, PROG. AUTO IDF
Overview
Description
12" Width 24" Length Chevalier FSG-3A1224, 2013, 3X AUTO FEEDS, PROG. AUTO IDF SURFACE GRINDER, EMC, COOLANT
Specifications
12" X 24" CHEVALIER PRECISION SURFACE GRINDER
WITH PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED
MODEL: FSG-3A1224 S/N: PP3134002 NEW: 2013
MAX. GRINDING CAPACITY .............. 12" X 24"
MAX. LONGITUDINAL TABLE TRAVEL ...... 27- 1/2"
MAX. CROSSFEED TRAVEL ............... 14- 1/2"
DIST. FROM SPINDLE CENTER TO TABLE .. 24- 3/4"
VARIABLE TABLE SPEED, HYDRAULIC ..... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ....... 0.04" TO 0.6"
CROSSFEED HANDWHEEL, PER GRAD. ...... 0.001"
CROSSFEED HANDWHEEL, PER REV. ....... 0.2"
AUTOMATIC INCREMENTAL DOWNFEED ...... 0.0001" TO .002"
DOWNFEED HANDWEHEEL, PER GRAD ....... 0.0005"
DOWNFEED HANDWEHEEL, PER REV. ....... 0.001"
RAPID TRAVERSE RATE ................. 13" IPM
SPINDLE MOTOR ....................... 5 HP
STANDARD GRINDING WHEEL ....... 14" DIA. x 1-2"W x 5"B
APPROX. WEIGHT ...................... 4,630 LBS.
APPROX. DIMS. .................. 105"L-R x 71.25"D x 75"H
EQUIPPED WITH:

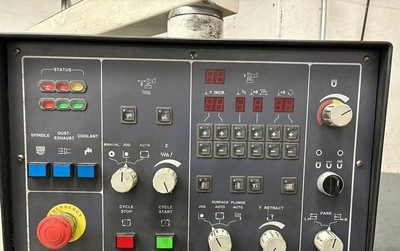

FULLY PROGRAMMABLE MICROPROCESSOR AUTO-CYCLE CONTROL
-AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE & SURFACE)
-SPARKOUT CYCLE ADJUSTABLE FRO 0 TO 9 TIMES
-POWER RAPID WHEELHEAD POSITIONING
-AUTOMATIC WHEELHEAD RETRACTION @ COMPLETION OF CYCLE
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED
ALL SLIDEWAYS ARE LAMINATED WITH TURCITE-B & PRECISELY
HAND-SCRAPED FOR ACCURACY.
FINE FEED FOR VERTICAL AXES (.0001" GRAD.)
12" X 24" CHEVALIER STD. CROSS POLE

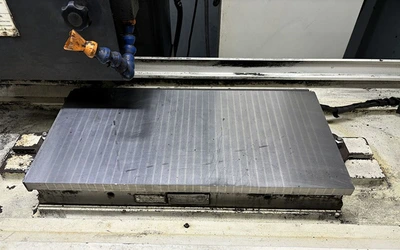

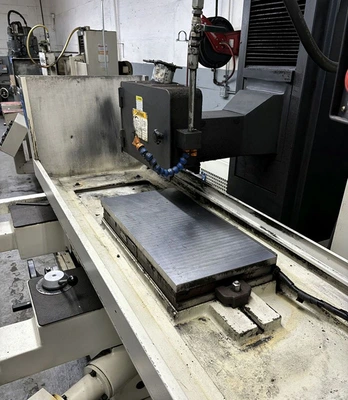

ELECTRO-MAGNETIC CHUCK (MODEL FLC-3060C)
VARIABLE HOLD NEUTROFIER CONTROL
COOLANT SYSTEM
EXTERNAL HYDRAULIC SYSTEM
AUTO LUBE SYSTEM
5 H.P SUPER-PRECISION DIRECT DRIVE SPINDLE
3/60/230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS
** FOB OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **
FOR MORE INFORMATION: Call Andy at 973-497-7600
