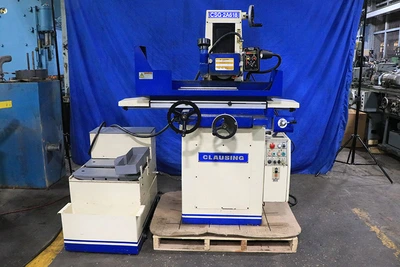

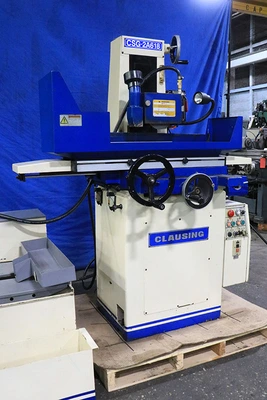

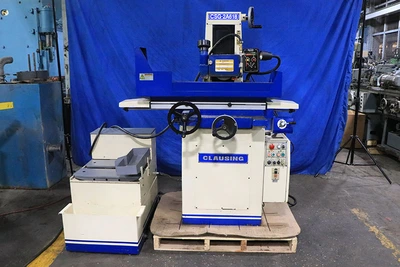

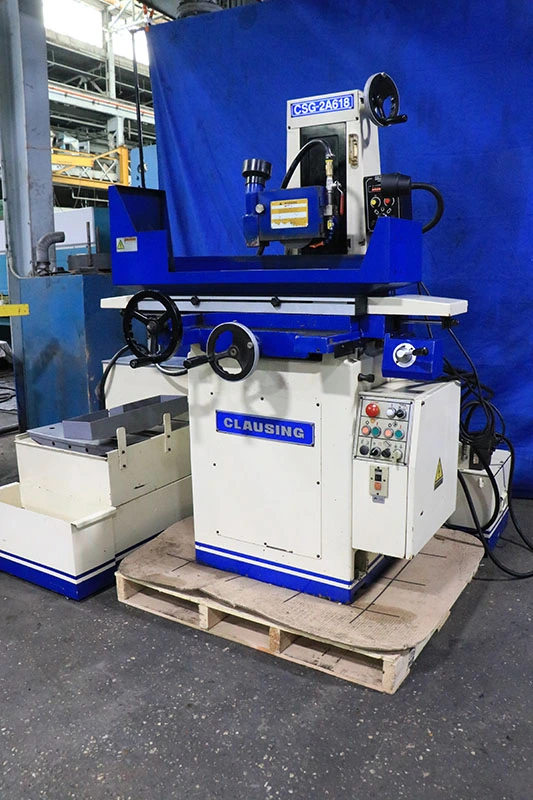

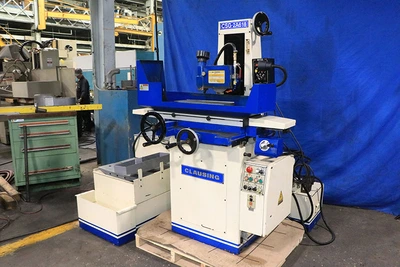

USED 1998 Clausing CSG-2A618, 1998, TWO-AXIS AUTO FEEDS, EMC, COOLANT

6" Width 18" Length Clausing CSG-2A618, 1998, TWO-AXIS AUTO FEEDS, EMC, COOLANT SURFACE GRINDER

  6" x 18" CLAUSING "EQUIPTOP"

TWO-AXIS AUTOMATIC SURFACE GRINDER

    HYDRAULIC TABLE TRAVERSE

& POWER CROSSFEED BY ELECTRIC MOTOR

MODEL NO. CSG-2A618    S/N: 207074    NEW: 1998

TABLE SIZE ...................... 6" x 18"

MAX. GRINDING LENGTH ............ 19"

MAX. GRINDING WIDTH ............. 6- 5/8"

MAX. DISTANCE FROM TABLE

 TO SPINDLE CENTERLINE .......... 18"

LONGITUDINAL TABLE TRAVEL,

 MANUAL ......................... 20”

LONGITUDINAL TRABLE TRAVEL,

 HYD. ........................... 19”

TABLE SPEED, INFIN. VARIABLE .... 196" TO 984" IPM

AUTO CROSSFEED INCREMENT ........ 0.04" TO .4"

MAX AUTO CROSSFEDD TRAVEL ....... 7"

MAX MANUAL CROSS TRAVEL ......... 7- ¾”

CROSSFEED HANDWHEEL,

 ONE REV. = ..................... 0.2"

CROSSFEED HANDWHEEL,

 GRAD. .......................... 0.001"

VERTICAL HANDWHEEL,

 ONE REV. = ..................... 0.04"

VERTICAL HANDWHEEL, GRAD. ....... 0.0002"

GRINDING SPINDLE DRIVE SPEED .... 3450 RPM

STD. GRINING WHEEL .............. 8" x 3/4" x 1.25"B

APPROX. FLOOR SPACE FOR OPS ..... 71" x 45" x 65"H

APPROX WEIGHT ................... 1,800 LBS.

 MACHINE FEATURES:

HYDRAULIC TABLE FEED

ELECTRONIC CROSSFEED

TURCITE-B ON TABLE& SADDLE WAYS FOR INCREASED

 WAY LIFE & LOW FRICTION

 EQUIPPED WITH:

2 H.P./230-460 VOLT GRINDING SPINDLE MOTOR

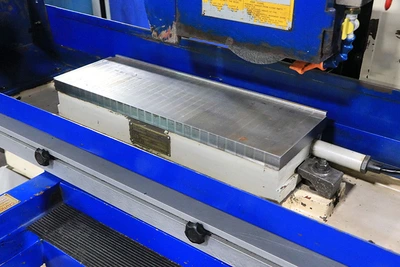

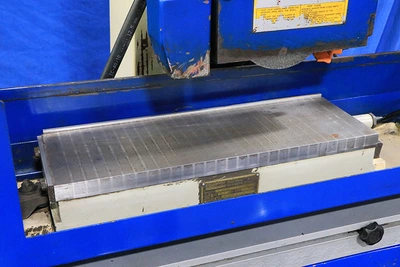

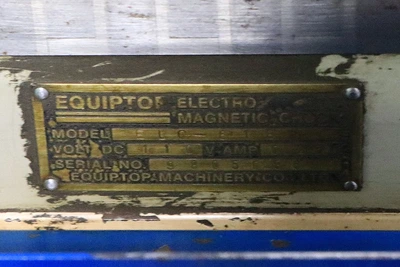

6" x 18" "EQUITOP" ELECTRO-MAGNETIC CHUCK

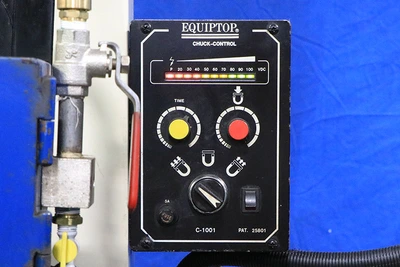

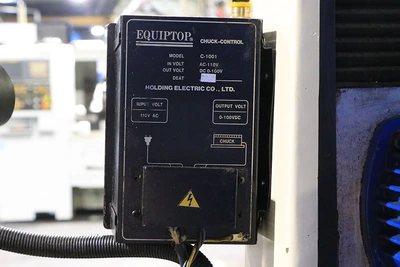

"EQUITOP" VARIABLE HOLD NEUTROFIER

COOLANT SYSTEM WITH PAPER FILTRATION

MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **

** SMALL FOOTPRINT, COMPACT, VERY NICE DESIGN **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
