USED 1994 Kent SGS-1224 AHD, 1994, AUTO IDF, 3X AUTO FEEDS,
Overview
Description

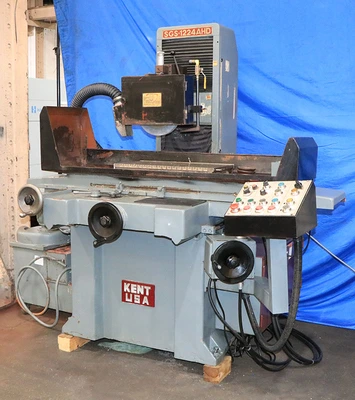

12" Width 24" Length Kent SGS-1224 AHD, 1994, AUTO IDF, 3X AUTO FEEDS, SURFACE GRINDER, EMC, COOLANT & DUST COLLECTOR, OTW DRESSER
Specifications

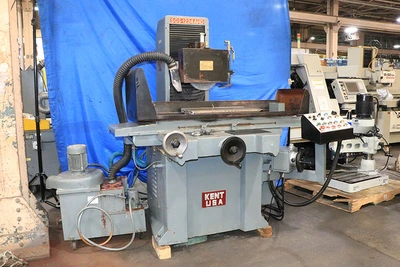

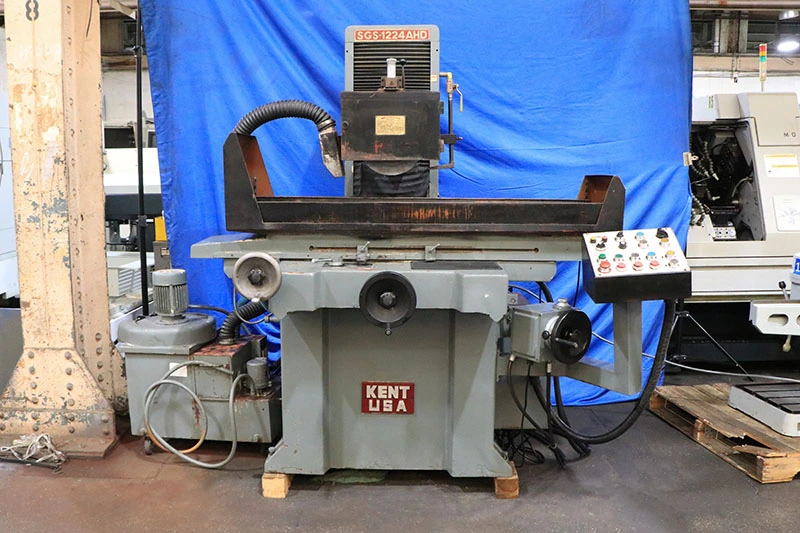

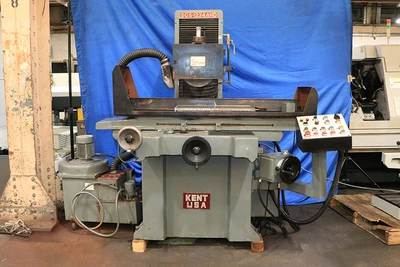

12" X 24" KENT HYDRAULIC SURFACE GRINDER
W/AUTOMATIC INCREMENTAL DOWNFEED
MODEL: SGS-1224AHD S/N: 459019 NEW: 1994
MAX. GRINDING CAPACITY ............... 12" X 24"
DIST. FROM SPINDLE CENTER TO TABLE ... 23- 1/2"
LONGITUDINAL TABLE TRAVEL ............ 28"
CROSS TRAVEL ......................... 13- 1/2"
VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 80' FPM
AUTOMATIC CROSSFEED INCREMENT ........ 0 TO 5/8"
RAPID CROSS TRAVERSE RATE ............ 35" IPM
AUTO INCREMENTAL DOWNFEED ............ 0.001" TO .0001"
DOWNFEED HANDWHEEL PER GRADUATION .... 0.0005"
PER REVOLUTION ....................... 0.1"
CROSSFEED HANDWHEEL PER GRADUATION ... 0.001"
PER REVOLUTION ............. ......... 0.2"
SPINDLE MOTOR ........................ 5 H.P.
STANDARD GRINDING WHEEL .............. 14"D x 1.5" x 5"
APPROX. WEIGHT ....................... 4,180 LBS
EQUIPPED WITH:
AUTO INCREMENTAL DOWNFEED (SURFACE& PLUNGE)
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED

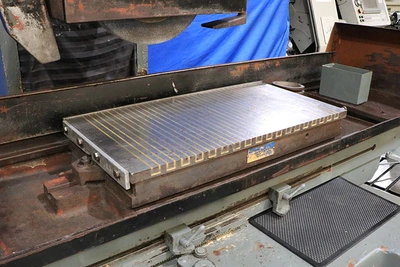

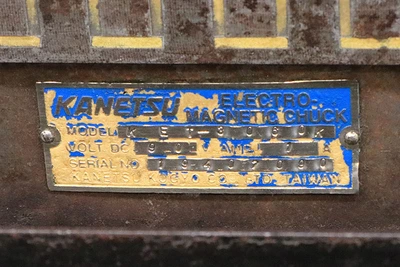

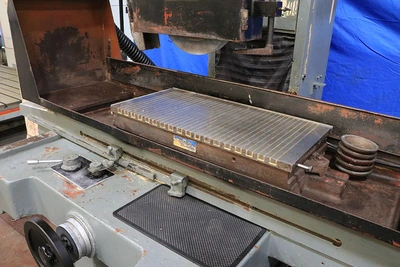

12" X 24" KANETSU STD. DIVISION, CROSS POLE,
ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL

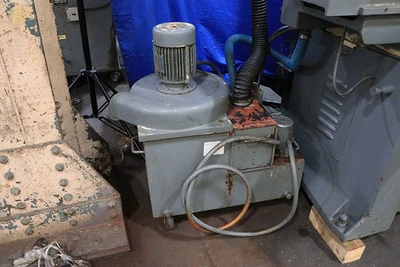

COMBINATION COOLANT SYSTEM & DUST COLLECTOR
MEEHANITE CASTING
VEE & FLAT TURCITE WAYS FOR SMOOTH LONGITUDINAL TRAVEL
CENTRALIZED LUBRICATION SYSTEM
EXTERNAL HYDRAULIC SYSTEM
MOTORS ARE 3/60/220-440 VOLTS
MACHINE IS WIRED PRESENTLY FOR 3/60/440 VOLTS
LINK TO VIDEO: https://youtu.be/RxnTkklrPEk?si=u8qbq-KHaKFmsUfr
** ORIGINAL PAINT, EXCELLENT CONDITION **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
