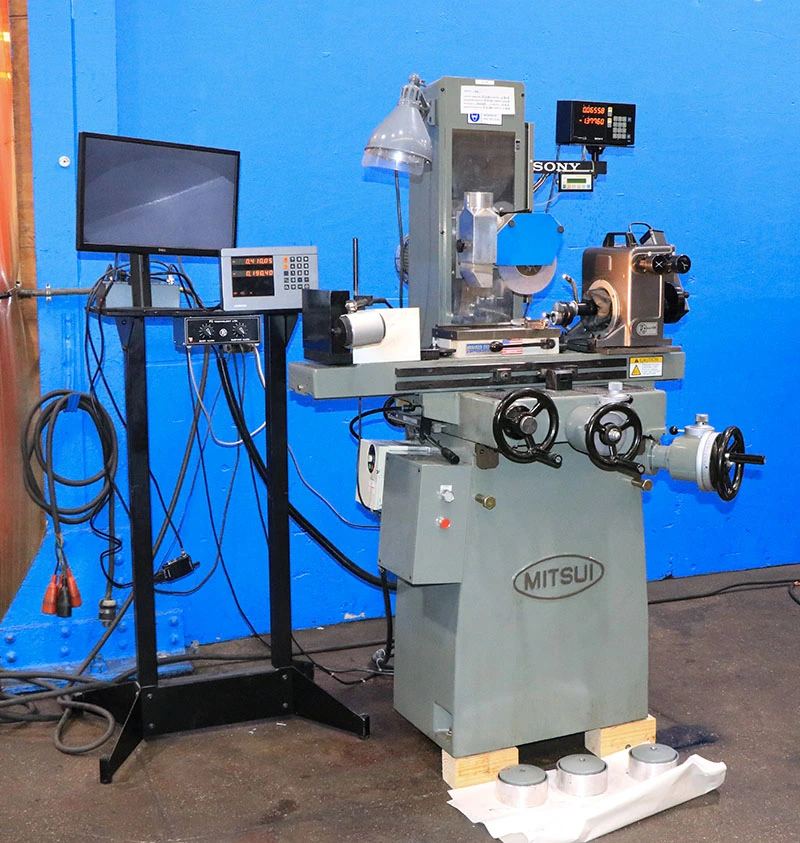

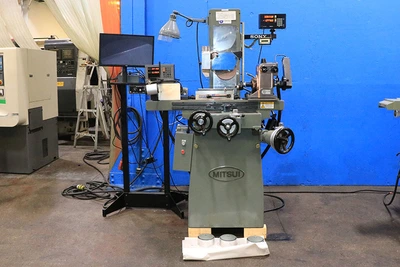

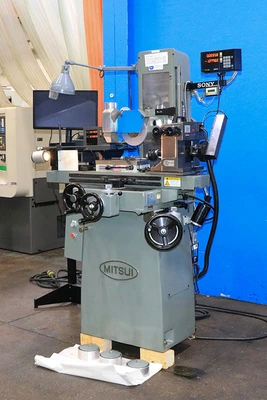

USED 2004 MITSUI MSG-200MH, '04, PG 620 VISUAL GRIND, 0.00001" VERT

6" Width 12" Length MITSUI MSG-200MH, '04, PG 620 VISUAL GRIND, 0.00001" VERT SURFACE GRINDER, 2X DRO, PMC,

      6" X 12" MITSUI (NEW 2004)

   "HIGH-PRECISION" (MADE IN JAPAN)

      HAND FEED SURFACE GRINDER

        w/ROLLER BEARING TABLE

MODEL: MSG-200MH    S/N: 20040110197

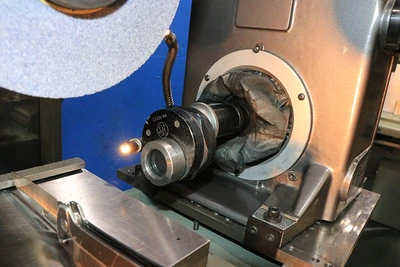

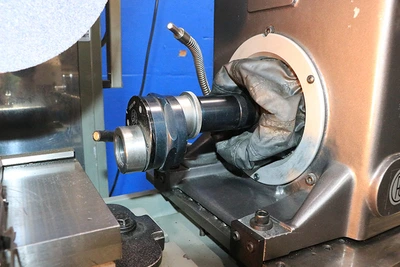

 PG TECHNOLOGY MODEL #620 IN-PROCESS INSPECTION

       VISUAL GRIND SYSTEM (S/N: 721-0198

"The System 620 eliminates ‘down time’ and

  off machine inspection. A versatile closed

  circuit camera/monitor system, with precison

  slides and digital read-out designed to

  complement Optidress E to give ‘on machine’

  high precision non-contact measuring and

  checking, of wheel and workpiece, through

  to completion of the grinding operation."

  ** FINE FEEDS FOR CROSS & VERTICAL AXES

     (.000050" GRAD. FOR THE CROSS AXIS)

     (.000010" GRAD. FOR THE VERTICAL AXIS)

  **  SONY 2-AXIS DIGITAL READOUT DISPLAY,

       0.000020" DISPLAY RESOLUTION **

LINK TO VIDEO:

https://youtu.be/wLOLw8xgrCs?si=P9f1GY9_EcD4BVHq

WIDTH& LENGTH GROUND .......... 6" X 12"

TABLE TO SPINDLE CENTER ....... 18"

HEIGHT UNDER 8" WHEEL TO

 CHUCK SURFACE ................ 11"

LONGITUDINAL TABLE TRAVEL ..... 15"

CROSS TRAVEL .................. 8"

GRINDING WHEEL CAPACITY ....... 8" x 3/4" x 1-1/4"

CROSS FEED PER REV. OF

  HANDWHEEL(.001" GRAD.) ...... 0.100"

VERTICAL FEED PER REV. OF

 HANDWHEEL (.0001" GRAD.) ..... 0.0500"

FINE FEED SYSTEM FOR CROSS

 FEED, GRAD. TO ............... 0.00005"

FINE FEED SYSTEM FOR VERT.

 FEED, GRAD. TO ............... 0.00001"

APPROX. WEIGHT ................ 1,500 LBS.

APPROX. DIMS. FOR THE

 MACHINE ONLY ................. 58" x 46" x 71"H

  EQUIPPED WITH:

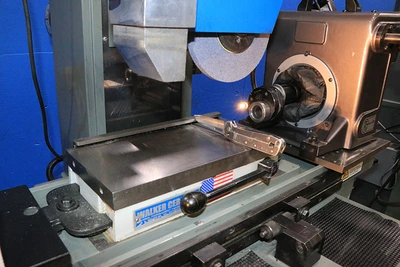

  PG TECHNOLOGY MODEL #620 IN-PROCESS VISUAL GRIND

   INSPECTION SYSTEM (S/N: 721-0198)

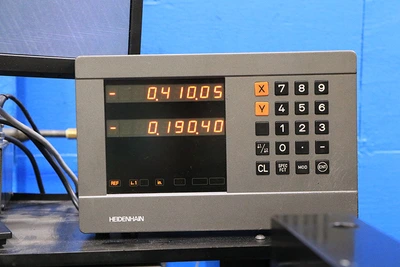

  "HEIDENHAIN" 2-AXIS DIGITAL READOUT DISPLAY,

    FOR DISPLAY OF X & Y AXIS MOVEMENTS, FOR

    THE PG TECHNOLOGY 620 VISUAL GRIND SYSTEM

    0.000050" RESOLUTION DISPLAY, FOR THE X & Y

    AXIS MOVEMENTS OF THE ATTACHMENT

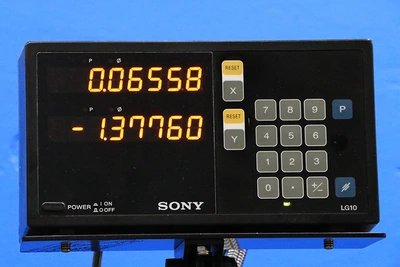

  "SONY" 2-AXIS DIGITAL READOUT DISPLAY,

    0.000020" RESOLUTION DISPLAY, FOR THE CROSS

    AND VERTICAL AXIS MOVEMENTS, OF THE

    SURFACE GRINDER.

  "TOSHIBA" VFD, PROVIDES INFINITELY VARIABLE

     SPINDLE SPEEDS

  FINE FEED OPTION FOR CROSS AXIS, 0.000050" GRAD.

  FINE FEED OPTION FOR VERTICAL AXIS, 0.000010"

  TABLE MOVES ON LINEAR BALL BEARINGS (REMOVABLE)

  MOUNTED BETWEEN (3) VEE WAYS& (1) FLAT WAY ...

    DRIVEN BY CABLE SYSTEM

  HARDENED& REPLACEABLE STEEL WAYS ON TABLE,

  CARRIAGE/SADDLE& COLUMN

  CROSS FEED HANDWHEEL (.0001" VERNIER)

  PRECISION CARTRIDGE SPINDLE DESIGN

  1-1/3 HP SPINDLE MOTOR

  AUTOMATIC LUBRICATION SYSTEM

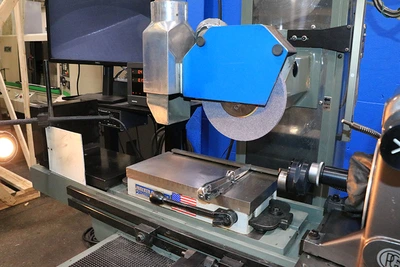

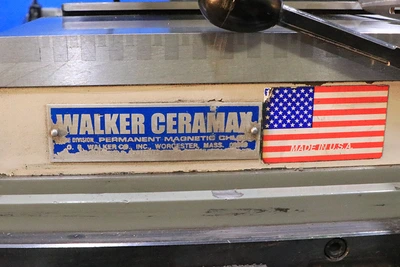

  6" X 12" "O.S. WALKER" "CERAMAX" FINE-DIVISION

  PERMANENT MAGNETIC CHUCK

  MACHINE IS WIRED FOR 3/60/460 VOLT ELECTRICS

SPECIAL NOTE:

"OPTI-DRESS" FACSTOR E "OVER-THE-WHEEL" DRESSER

  CAN BE PURCHASED FROM US, IN STOCK.

  THE UNIT HAS BEEN REFURBISHED

  BY THE USA REPRESENTATIVE FOR "OPTI-DRESS"

  (PRECISION INT'L).  PRICE IS $9,950.

  INCLUDES MOUNTING BRACKET FOR A MITSUI

  SURFACE GRINDER TOO!.

  ** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE **

  ** JUST BEAUTIFUL - ORIGINAL PAINT **

  ** EXCEPTIONAL CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
