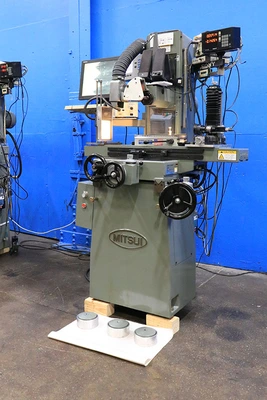

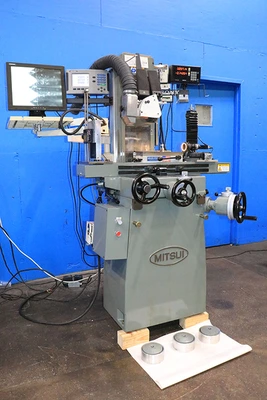

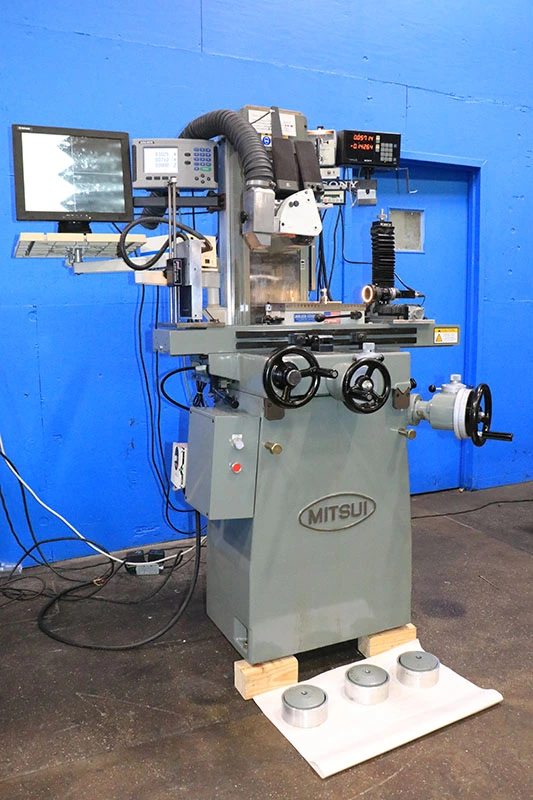

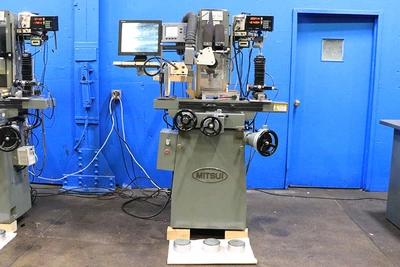

USED 2006 MITSUI MSG-200MH, 2006, VISUAL GRIND SYSTEM, FINE FEEDS

6" Width 12" Length MITSUI MSG-200MH, 2006, VISUAL GRIND SYSTEM, FINE FEEDS SURFACE GRINDER, TWO DRO'S, PMC, VARI-SPEED SPINDLE

  6" X 12" MITSUI (NEW 2006)

   "HIGH-PRECISION" (MADE IN JAPAN)

      HAND FEED SURFACE GRINDER

      w/ROLLER BEARING TABLE

MODEL: MSG-200MH    S/N: 20060210408

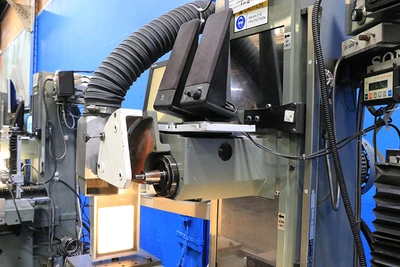

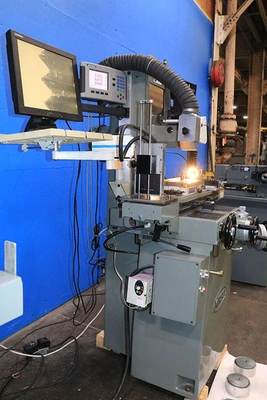

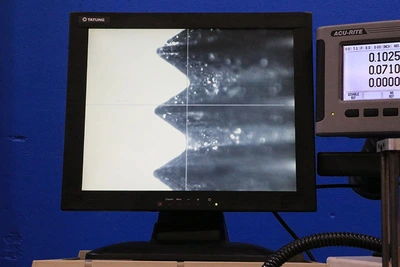

** VISUAL GRIND SYSTEM WITH 2X DRO, 2X SLIDES,

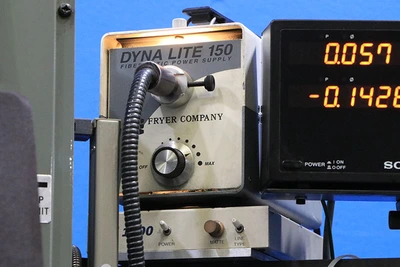

   LED LIGHTING & ANOTHER SEPARATE LIGHT SOURCE

  ** FINE FEEDS FOR CROSS & VERTICAL AXES

     (.000050" GRAD. FOR THE CROSS AXIS)

     (.000010" GRAD. FOR THE VERTICAL AXIS)

  **  SONY 2-AXIS DIGITAL READOUT DISPLAY,

       0.000020" DISPLAY RESOLUTION **

WIDTH& LENGTH GROUND .......... 6" X 12"

TABLE TO SPINDLE CENTER ....... 18"

HEIGHT UNDER 8" WHEEL TO

 CHUCK SURFACE ................ 11"

LONGITUDINAL TABLE TRAVEL ..... 15"

CROSS TRAVEL .................. 8"

GRINDING WHEEL CAPACITY ....... 8" x 3/4" x 1-1/4"

CROSS FEED PER REV. OF

  HANDWHEEL(.001" GRAD.) ...... 0.100"

VERTICAL FEED PER REV. OF

 HANDWHEEL (.0001" GRAD.) ..... 0.0500"

FINE FEED SYSTEM FOR CROSS

 FEED, GRAD. TO ............... 0.00005"

FINE FEED SYSTEM FOR VERT.

 FEED, GRAD. TO ............... 0.00001"

APPROX. WEIGHT ................ 1,500 LBS.

APPROX. DIMS. FOR THE

 MACHINE ONLY ................. 58" x 46" x 71"H

  EQUIPPED WITH:

** VISUAL GRIND SYSTEM WITH 2X DRO, 2X SLIDES,

   LED LIGHTING & ANOTHER SEPARATE LIGHT SOURCE.

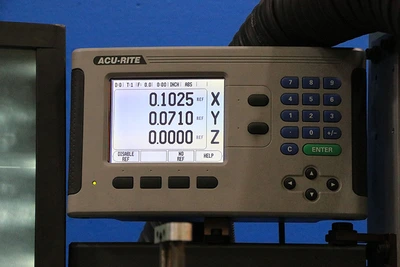

   "ACU-RITE" 2-AXIS DIGITAL READOUT DISPLAY,

    FOR DISPLAY OF X & Y AXIS MOVEMENTS,WITH

    0.00050" RESOLUTION DISPLAY, FOR THE X & Y

    AXIS MOVEMENTS OF THE ATTACHMENT FOR

    THE RIGHT HAND "LED" LIGHT.  THK LINEAR

    SLIDES.

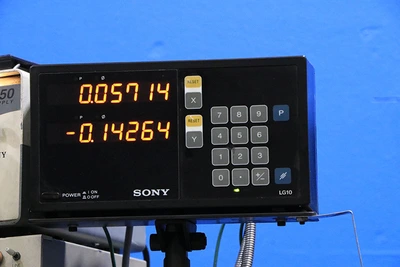

  "SONY" 2-AXIS DIGITAL READOUT DISPLAY,

    0.000020" RESOLUTION DISPLAY, FOR THE CROSS

    AND VERTICAL AXIS MOVEMENTS, OF THE

    SURFACE GRINDER.

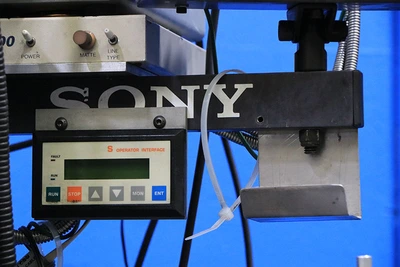

  "TOSHIBA" VFD, PROVIDES INFINITELY VARIABLE

     SPINDLE SPEEDS

  FINE FEED OPTION FOR CROSS AXIS, 0.000050" GRAD.

  FINE FEED OPTION FOR VERTICAL AXIS, 0.000010"

  TABLE MOVES ON LINEAR BALL BEARINGS (REMOVABLE)

  MOUNTED BETWEEN (3) VEE WAYS& (1) FLAT WAY ...

    DRIVEN BY CABLE SYSTEM

  HARDENED& REPLACEABLE STEEL WAYS ON TABLE,

  CARRIAGE/SADDLE& COLUMN

  CROSS FEED HANDWHEEL (.0001" VERNIER)

  PRECISION CARTRIDGE SPINDLE DESIGN

  1-1/3 HP SPINDLE MOTOR

  AUTOMATIC LUBRICATION SYSTEM

  6" X 12" "O.S. WALKER" "CERAMAX" FINE-DIVISION

    PERMANENT MAGNETIC CHUCK

  MACHINE IS WIRED FOR 3/60/460 VOLT ELECTRICS

SPECIAL NOTE:

"OPTI-DRESS" FACSTOR E "OVER-THE-WHEEL" DRESSER

  CAN BE PURCHASED FROM US, IN STOCK.

  THE UNIT HAS BEEN REFURBISHED

  BY THE USA REPRESENTATIVE FOR "OPTI-DRESS"

  (PRECISION INT'L).  PRICE IS $9,950.

  INCLUDES MOUNTING BRACKET FOR A MITSUI

  SURFACE GRINDER TOO!.

LINK TO VIDEO https://youtu.be/YJj5q-yyxsw?si=KqcSkZuKRnrms-aa

  ** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE **

  ** JUST BEAUTIFUL - ORIGINAL PAINT **

  ** EXCEPTIONAL CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
