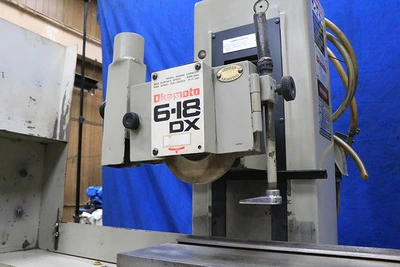

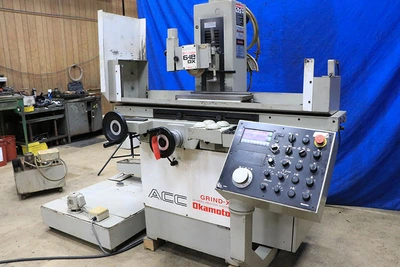

USED 2003 Okamoto ACC-618-DX3, 2003, 3X AUTO FEEDS, PROG. AUTO IDF
Overview
Description
6" Width 18" Length Okamoto ACC-618-DX3, 2003, 3X AUTO FEEDS, PROG. AUTO IDF SURFACE GRINDER, FINE-DIV. "LBP" EMC, COOLANT
Specifications

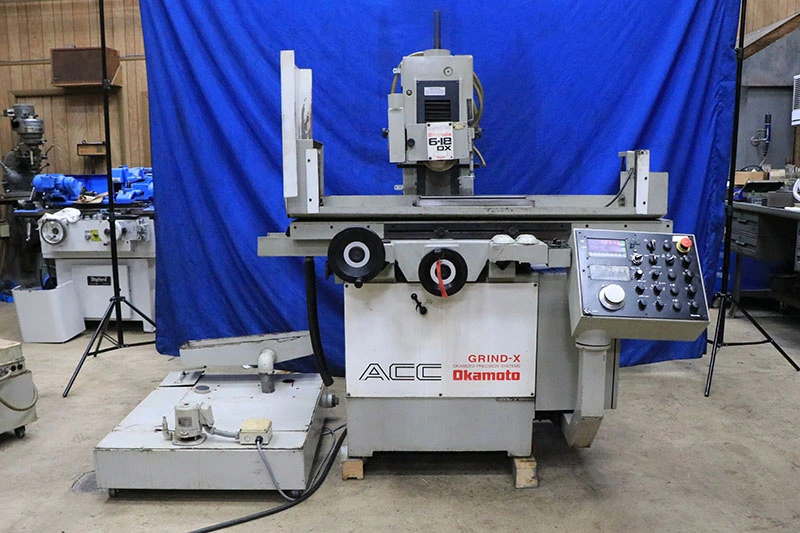

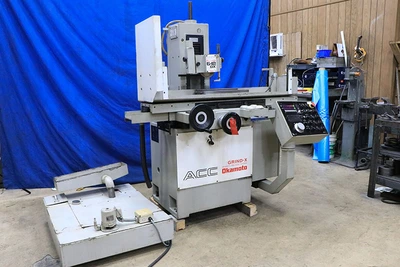

6" X 18" OKAMOTO "HIGH-PRECISION" SURFACE GRINDER
W/"DX" SERIES PROGRAMMABLE AUTO INCREMENTAL DOWNFEED
MODEL: ACC-618-DX3 S/N: 45640 NEW: 2003
NOMINAL GRINDING CAPACITY .................. 6" x 18"
MAXIMUM HEIGHT UNDER 8" WHEEL .............. 11.7"
TABLE SPEED, INFINITELY VARIABLE ........... UP TO 82' FPM
MAX. LONGITUDINAL TABLE MOVEMENT, MANUAL ... 24"
AUTO CROSS FEED INCREMENT .................. 0.002" TO 0.40"
AUTO CONINOUS CROSSFEED .................... 4' TO 40' FPM
CROSSFEED, MANUAL, HAND FEED PER REV. ...... 0.25"
GRAD. OF HANDWHEEL ...... 0.0004"
FINE FEED KNOB FOR CROSSFEED, GRAD. ........ 0.00002"
MAX. CROSSFEED, MANUAL ..................... 7"
AUTO INCREMENTAL DOWNFEED INCREMENTS ....... 0.00005" TO .0015"
POWER RAPID WHEEL POSITIONING RATE ......... 16" IPM
SPINDLE MOTOR .............................. 2 H.P.
WHEEL SIZE ................................. 8"DIA. x 1"W x 1.25"B
APPROX. DIMS. FOR OPERATION ................ 85" x 63"D x 70"H
APPROX. MACHINE WEIGHT ..................... 2,500 LBS.
EQUIPPED WITH:
"DX" SERIES PROGRAMMABLE ELECTRONIC AUTO INCREMENTAL DOWNFEED:
-AC SERVO DRIVEN DOWNFEED
-AUTO INCREMENTAL DOWNFEED FOR BOTH SURFACE & PLUNGE
OPERATIONS
-DUAL RATE AUTO DOWNFEED W/COARSE & FINE SELECTIONS

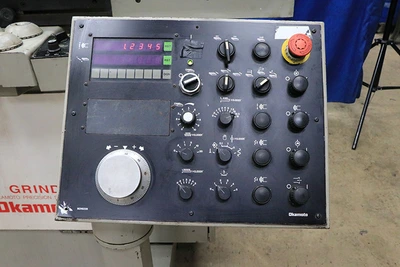

-DIGITAL DISPLAY OF VERTICAL AXIS
-SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK AT
COMPLETION OF GRIND CYCLE

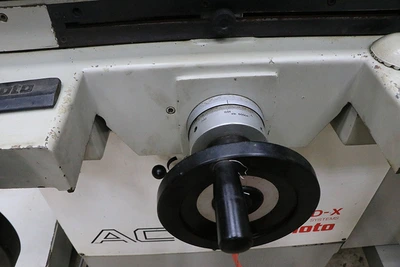

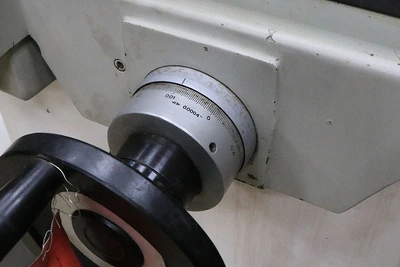

-ELECTRONIC HANDWHEEL FOR MANUAL VERTICAL MOVEMENT
W/EACH GRAD. EQUIVALENT TO .00001", .0001" OR .001"
-POWER RAPID WHEEL POSITIONING

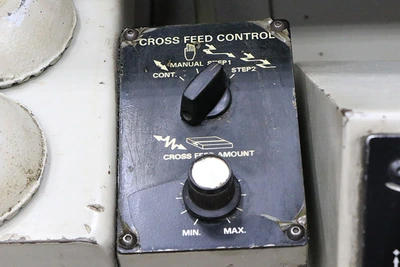

HYDRAULIC TABLE TRAVERSE & AUTOMATIC CROSSFEED

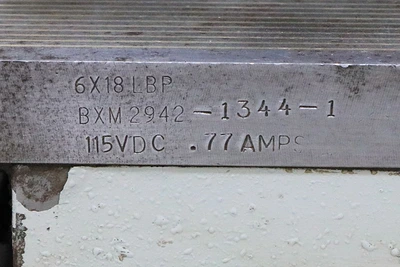

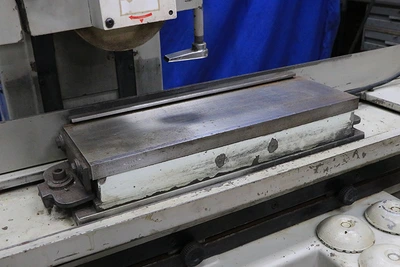

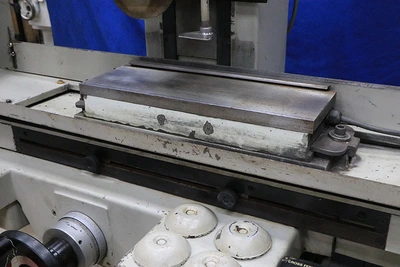

6" X 18" "LBP" FINE-DIVISION ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL ON MACHINE'S CONSOLE
COOLANT SYSTEM
2 H.P./220-230-440-460 VOLT SPINDLE MOTOR
MACHINE IS PRESENTLY SET UP FOR 460 VOLTS, 2.8 KVA
LINK TO VIDEO: https://youtu.be/8rnMNsXR07s?si=c4fRt90Vc-7yFWgB
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
