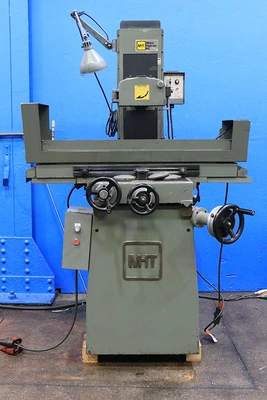

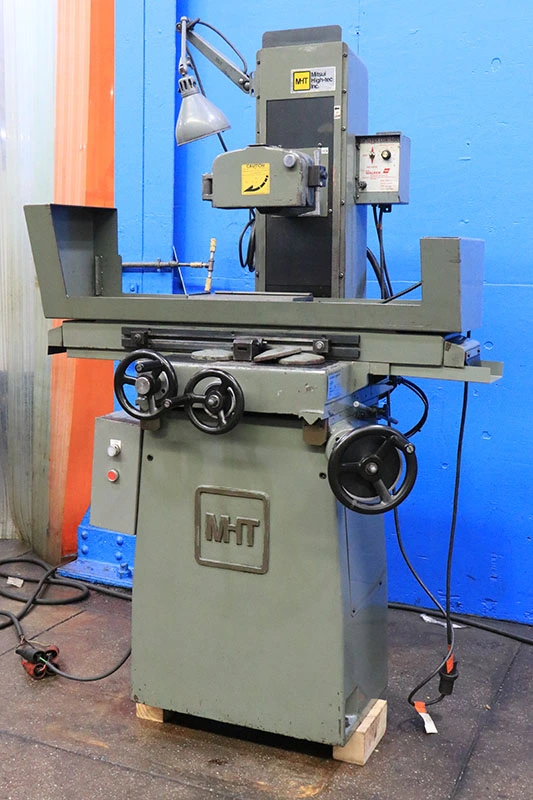

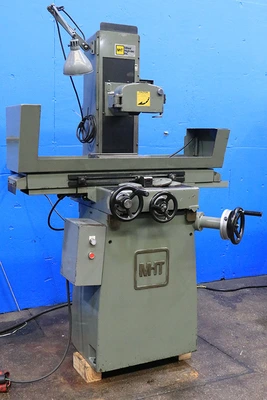

6" Width 12" Length MITSUI MSG-200MH, 2000 SURFACE GRINDER
6" X 12" MITSUI
"HIGH-PRECISION" (MADE IN JAPAN)
HAND FEED SURFACE GRINDER w/ROLLER BEARING TABLE

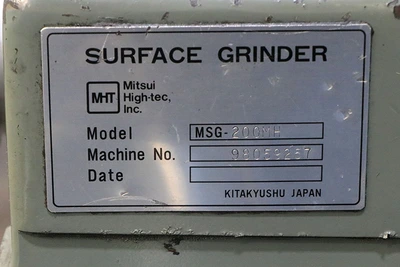

MODEL: MSG-200MH NEW: 2000
WIDTH& LENGTH GROUND .................... 6" X 12"
TABLE TO SPINDLE CENTER ................. 18"
HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE .. 11"
LONGITUDINAL TABLE TRAVEL ............... 15"
CROSS TRAVEL ............................ 8"
GRINDING WHEEL CAPACITY .......... 8" x 3/4" x 1-1/4"

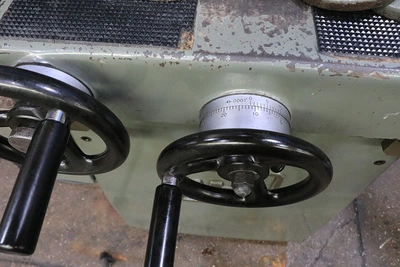

CROSS FEED PER REV. OF HANDWHEEL
(.001" GRAD.) ........................... 0.100"

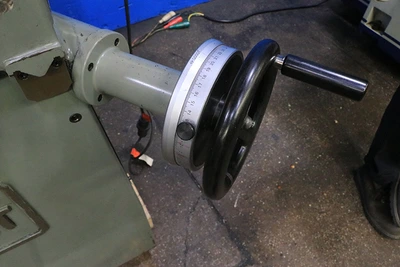

VERTICAL FEED PER REV. OF HANDWHEEL
(.0001" GRAD.) .......................... 0.0500"
APPROX. WEIGHT .......................... 1,500 LBS.
APPROX. DIMENSIONS ............... 58" x 46" x 71"H
EQUIPPED WITH:
TABLE MOVES ON LINEAR BALL BEARINGS (REMOVABLE)
MOUNTED BETWEEN (3) VEE WAYS& (1) FLAT WAY,
DRIVEN BY CABLE SYSTEM
HARDENED & REPLACEABLE STEEL WAYS ON TABLE,
CARRIAGE/SADDLE & COLUMN
CROSS FEED HANDWHEEL (.0001" VERNIER)
PRECISION CARTRIDGE SPINDLE DESIGN
1/3 HP SPINDLE MOTOR

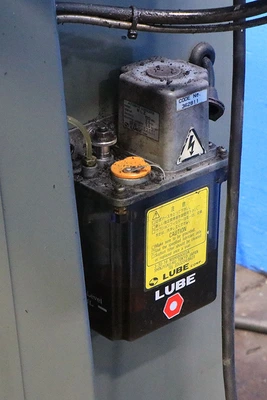

AUTOMATIC LUBRICATION SYSTEM

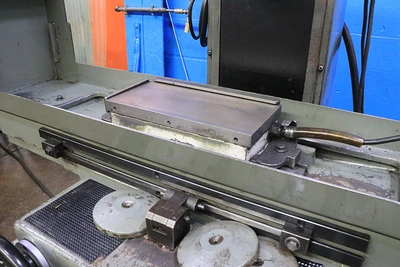

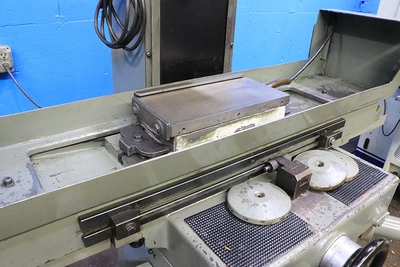

6" X 12" "O.S. WALKER" "FINE-DIVISION"
"LBP" ELECTRO-MAGNETIC CHUCK

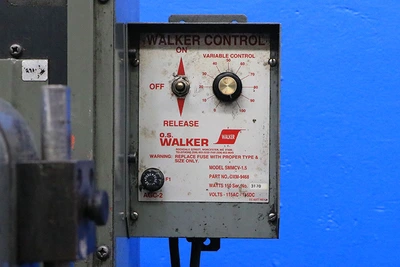

"O.S. WALKER" VARIABLE HOLD NEUTOFIER CHUCK CONTROL
MACHINE IS WIRED FOR 3/60/220 VOLT ELECTRICS
LINK TO VIDEO: https://youtu.be/pM-zzdfRVCw?si=TFVZap8ekKe_zNUf
** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE **
** - ORIGINAL PAINT - VERY PRESENTABLE, CLEAN CONDITION **
FOR MORE INFORMATION: Call Andy at 973-497-7600
