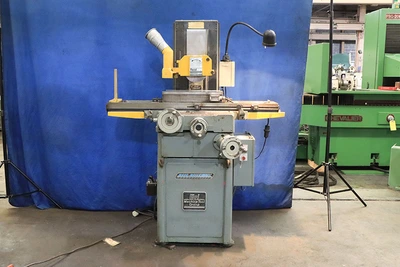

USED 1986 Reid 618 ROLLERWAY, 1986, ROLLER BEARING TABLE, EMC,

6" Width 18" Length Reid 618 ROLLERWAY, 1986, ROLLER BEARING TABLE, EMC, SURFACE GRINDER

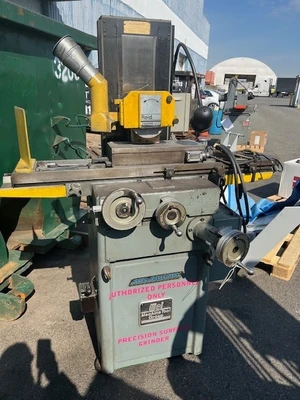

          6" X 18" REID "ROLLERWAY"

           PRECISION (MADE IN USA)

        HAND FEED, ROLLER BEARING TABLE

              SURFACE GRINDER

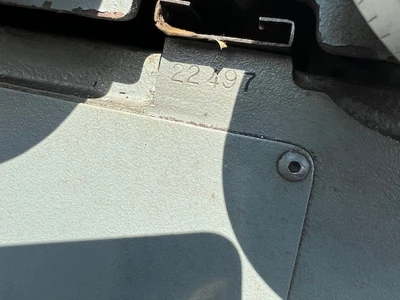

MODEL: ROLLERWAY      S/N: 22497      NEW: 1986

WORK CAPACITY ............................. 6" X 18"

WORK HEIGHT (UNDER 7" WHEEL TO TABLE) ..... 15"

MAXIMUM LONGITUDINAL TRAVEL ............... 20"

MAXIMUM CROSS TRAVEL ...................... 7"

CROSSFEED HANDWHEEL, GRAD. ................ 0.0005"

VERTICAL HANDWHEEL GRAD. .................. 0.0005"

TRAVEL PER REV. OF HANDWHEEL, TABLE ....... 3- 5/16"

TRAVEL PER REV. OF HANDWHEEL, CROSS ....... 0.100"

TRAVEL PER REV. OF HANDWHEEL, VERTICAL .... 0.050"

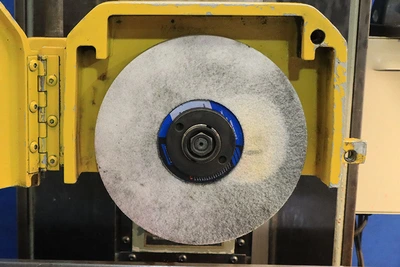

STD. WHEEL SIZE ...................... 7" x 1/2" x 1.25"B

FLOOR SPACE ............................... 71" X 46" X 68"H

APPROXIMATE WEIGHT ........................ 1,525 LBS

MACHINE FEATURES:

REID "ROLLERWAY" - ROLLER BEARING TABLE

LOCKING MECHANISM FOR THE CROSS-SLIDE

"BIJUR" ONE-SHOT LUBRICATOR

 OPTIONS/EQUIPPED WITH:

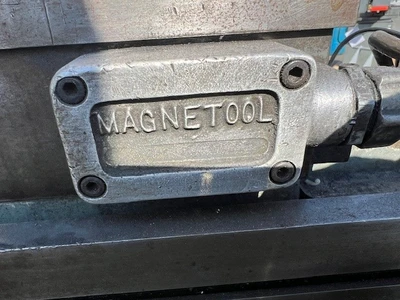

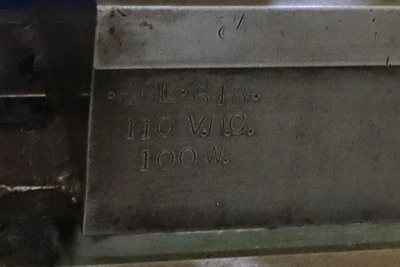

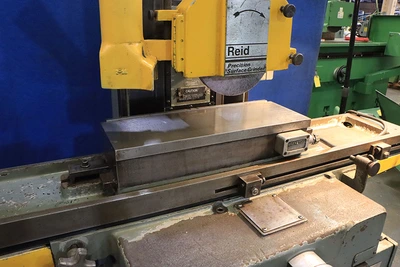

6" X 18" "MAGNETOOL" MODEL CL-618 "LBP"

 FINE-DIVISION ELECTRO-MAGNETIC CHUCK

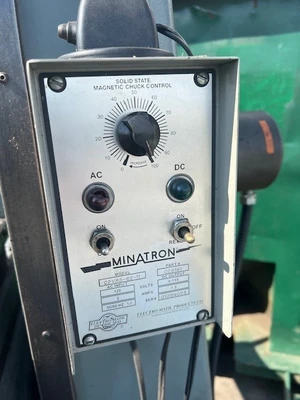

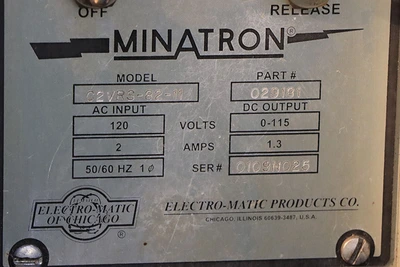

"MAGNETOOL" NEUTROFIER CONTROL WITH VARIABLE HOLD POWER

BIJUR ONE-SHOT LUBRICATOR

2 H.P. 3/60/230-460 VOLT SUPER-PRECISION"

  DIRECT DRIVE SPINDLE

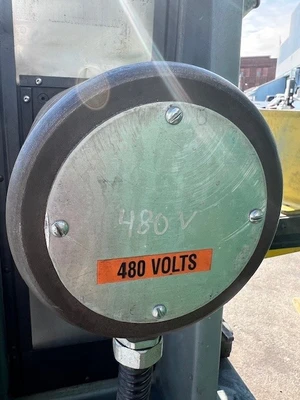

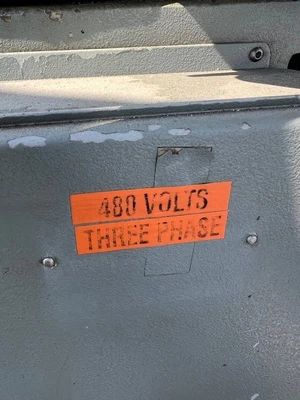

MACHINE IS PRESENTLY WIRED FOR 480 VOLTS

LINK TO VIDEO: https://youtu.be/fUzWOdZX41U?si=pJXLAQU4H8EExPjV

* INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE *

** EXCELLENT CONDITION & APPEARANCE  **

FOR MORE INFORMATION: Call Andy at 973-497-7600
