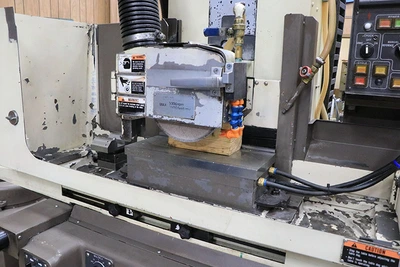

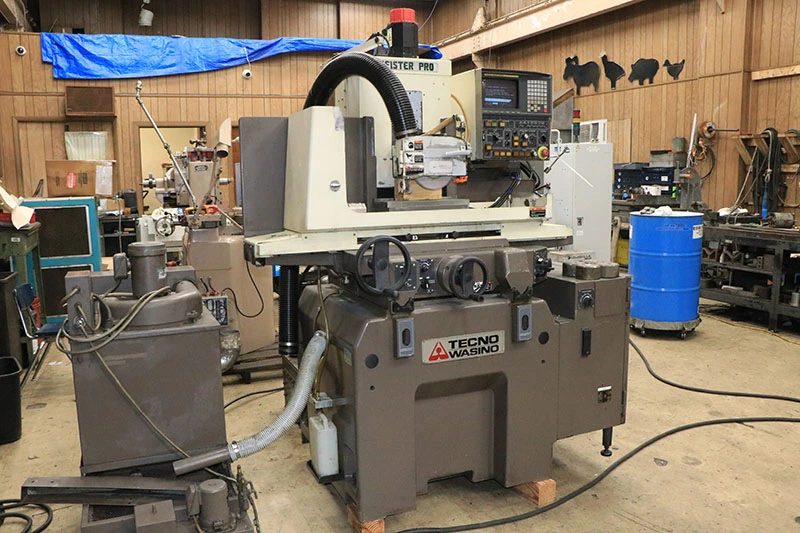

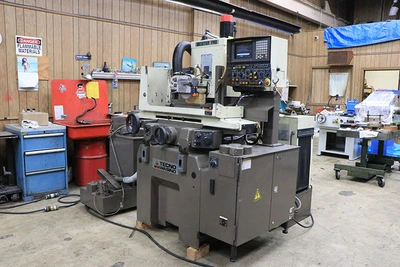

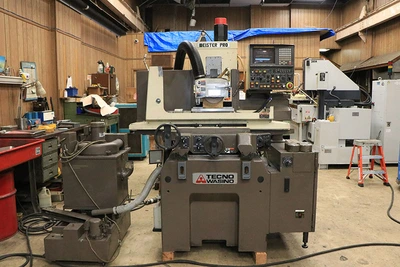

USED 1999 Amada Meister, 1999, FANUC 20-FA, 3-POINT DRESSER, EMC

6" Width 18" Length Amada Meister, 1999, FANUC 20-FA, 3-POINT DRESSER, EMC SURFACE GRINDER, COOLANT

    Amada-Wasino "Meister" "CNC"

         "MADE IN JAPAN"

 "HIGH PRECISION - HIGH PRODUCTIVITY"

     SURFACE & PROFILE GRINDER

S/N:  22101039     NEW:  1999

SPECIFICATIONS:

TABLE WORKING SURFACE ....... 17- 3/4" x 5- 7/8"

MAX. LONGITUDINAL TRAVEL .... 18- 7/8"

MAX. CROSS TRAVEL ........... 7- 1/16""

SPINDLE CENTER TO TABLE ..... 5- 1/18" TO 15- 3/4"

LONGITUDINAL TABLE SPEED .... 3.3' - 164' FPM

MAX. No. OF TABLE

 MRECIPROCATIONS WITH

 19/32" STROKE .............. 250

CROSS/SADDLE FEED:

RAPID CROSS FEED, JOG (3).... 0 - 1312FT./MIN.

                              1,640 FT./MIN.

                              3,280 FT.MIN.

 HANDLE FEED, PER REV. ...... 0.0004", 0.004",

                               0.04", 0.15"

 HANDLE FEED,PER GRAD. ...... 0.000004", 0.00004",

                               0.0004", 0.0015"

MINIMUM FEED INCREMENT ...... 0.0000010"

POSITION DETECTION SYSTEM ... GLASS SCALE/0.05um

WHEELHEAD:

RAPID WHEELHEAD FEED (JOG) .. 3.9"/MIN. & 39"/MIN.

 HANDLE FEED, PRE REV. ...... 0.0004", 0.004",

                               0.04", 0.15"

HANDLE FEED,PER GRAD. ....... 0.000004", 0.00004",

                               0.0004", 0.0015"

MINIMUM FEED INCREMENT ...... 0.0000010"

POSITION DETECTION SYSTEM ... LINEAR SCALE/0.05um

WHEEL SPINDLE:

SIZE (OD x WIDTH x BORE) .... 8" x 1/4" x 1- 1/4"

WHEEL SPINDLE SPEED,

  INF. VAR. ................. 500 - 5,000 RPM

MOTOR ....................... 3 H.P.

FLOOR SPACE ................. 74" x 64" x 77"H

APPROX. MACHINE WEIGHT ...... 4,400 LBS.

MACHINE FEATURES:

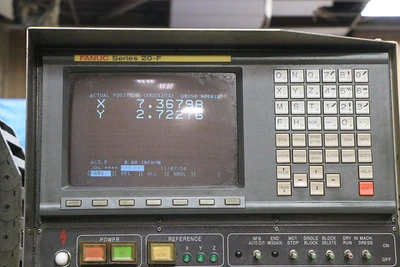

FANUC 20-FA CNC

- AMADA WASINO "MEISTER" VER. 1.28 SOFTWARE

- SIMULTANEOUS 2-AXIS + 1 AXIS

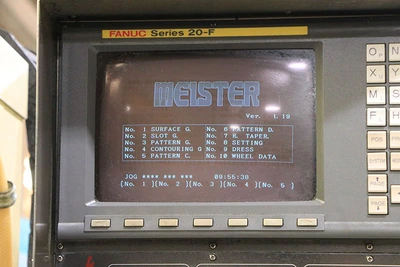

- CRT GRAPHIC DISPLAY

- EASY TO USE CONVERSATIONAL SOFTWARE

- (1) SURFACE GRINDING

  (2) SLOT GRINDING

  (3) PATTERN GRINDING

  (4) CONTOURING GRIND

  (5) PATTERN C.

  (6) PATTERN D.

  (7) R. TAPER

  (8) SETTING

  (9) DRESS

  (10) WHEEL DATA

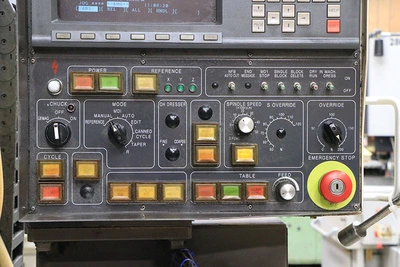

  - FULL KEYPAD WITH G-CODE PROGRAMMING

 -  ORIGINAL SOFTWARE (MEISTER VERSI0N 1.19)

   ALLOWS OPERATOR TO BE PRODUCTIVE

   WITHOUT HAVING TO KNOW COMPLEX

   CNC PROGRAMMING.

- PATTERN GRINDING COMPLEX SHAPES CAN BE

   PROCESSED EASILY BY COMBINING FIVE PATTERNS.

   THE COMBINATION OF PLUNGE AND TRAVERSE

   OPTIONS MAKES SELECTING THE APPROPRIATE

   PROCESSING EASY.

- CONTOUR GRINDING CAN BE IMPLEMENTED BY

   INPUTTING THE GRAPHIC DATA OF ARBITRARY

   SHAPES. ROUGH GRINDING BY PLUNGE

   GRINDING CAN ALSO BE IMPLEMENTED,

   AND THE CREATED DATA CAN BE SAVED

   IN THE CNC AREA.

- PATTERN DRESSING BY INPUTTING THE DIMENSIONS

   REQUIRED FOR THE BASIC SHAPE ON THE SCREEN,

   THE GRINDSTONES PERFORM THE MOLDING USING

   A SIMPLE PROFILE DRESSER.  THE GRINDSTONES

   CAN ALSO PERFORM THE MOLDING DURING THE

   PROCESSING AND INTERRUPT DRESSING.

- HIGH SPEED TABLE RECIPROCATION, AMADA WASINO's

   PROPRIETARY POSITIONING SCALE AND HYDRAULIC SERVO

   SYSTEM CAN ACHIEVE 250 TABLE REVERSALS PER MINUTE,

   A SIGNIFICANT INCREASE IN GRINDING EFFICIENCY.

-  TABLE FEATURES "V-FLAT" SLIDEWAYS WITH HOLLOW

   RUNNERS FOR HIGH SPEED AND ACCURACY.  MEISTER

   SERIES GRINDERS SUPPORT RECIPROCATION SPEEDS

   TWO TO THREE TIMES FASTER THAN ANY FORMER

   MODEL, GREATLY IMPROVING EFFICIENCY.

- FANUC AC SERVO DRIVES

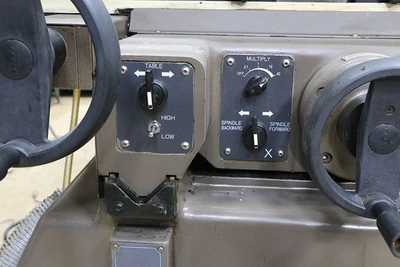

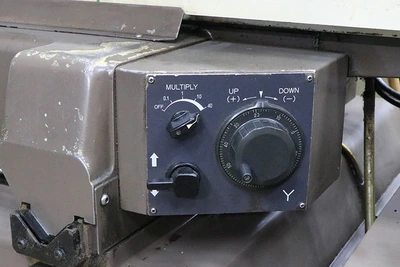

- HANDWHEELS FOR TABLE & SADDLE MOVEMENTS,

   CROSS FEED HANDWHEEL IS ELECTRONIC,

   MANUAL PULSE GENERATOR MOUNTED ON RIGHT

   OF TABLE AT ERGONIC HEIGHT, FOR EASE

   OF OPERATION.

EQUIPPED WITH:

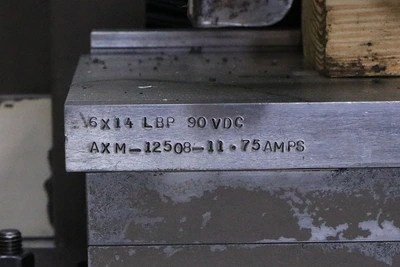

6" X 14" O.S. WALKER "LBP" FINE-DIVISION

 ELECTRO-MAGNETIC CHUCK

VARIABLE HOLD NEUTROFIER CONTROL

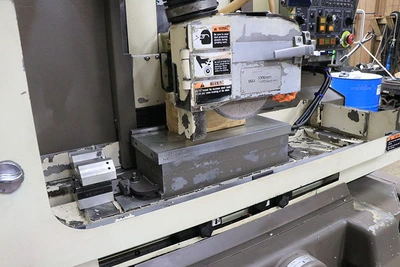

3-DRESSER ARRAY MOUNTED ON TABLE,

 LOCATED TO THE LEFT OF THE CHUCK

AUTOMATIC LUBRICATION SYSTEM, WITH WINDOW FOR

 VIEWING OF OIL FLOW.

COMBINATION COOLANT SYSTEM & FUJI DUST COLLECTOR

"DAIKIN" OIL COOLING UNIT, MOUNTED WITH

 HYDRAULIC EXTERNAL HYDRAULIC SYSTEM,

 FOR EASY ACCESS & NO THERMAL INTRUSION INTO

 THE MACHINE.

FACTORY COOLANT GUARDING

WORK LIGHT

SET OF MANUALS

HYDRALIC SERVO TABLE - TABLE SPEED IS PROVIDED BY

  A DIAL ON THE FANUC CNC CONTROL

2 HP AC MOTOR WITH INVERTER DRIVE, PROVIDING

  INFINITLEY VARIABLE SPINDLE SPEEDS.

  OPERATOR TURNS A DIAL ON THE FANUC CONTROL,

  OR PROGRAMS USING S CODE.

ELECTRICAL CABINET ON MACHINE, NOT SEPARATE

MACHINE IS WIRED FOR 3/60/220 VOLTS

https://youtu.be/q9LfUtHsdRU?si=n52C3BrcCd2Cf4-4

** SUPERIOR CONDITION - ORIGINAL PAINT - EXCEPTIONAL APPEARANCE **

            ** SO QUIET, SO SMOOTH -  RUNS BEAUTIFULLY! **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

https://youtu.be/q9LfUtHsdRU?si=QBXqZTYmSrC5w9LQ

FOR MORE INFORMATION: Call Andy at 973-497-7600
