USED 2000 Gallmeyer & Livingston 373, USA MADE, 2000, AUTO IDF, 3X AUTO
Overview
Description
12" Width 24" Length Gallmeyer & Livingston 373, USA MADE, 2000, AUTO IDF, 3X AUTO SURFACE GRINDER, EMC, COOLANT, POWER OTW DRESSER
Specifications

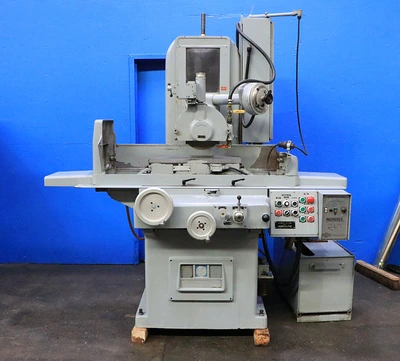

12" X 24" GALLMEYER & LIVINGSTON "GRAND RAPIDS"
"MADE IN USA" - BEAUTIFULLY MADE

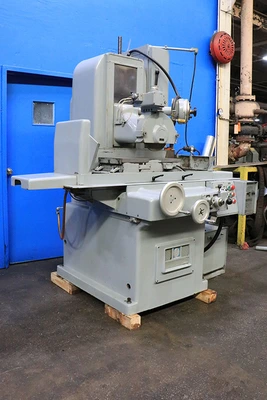

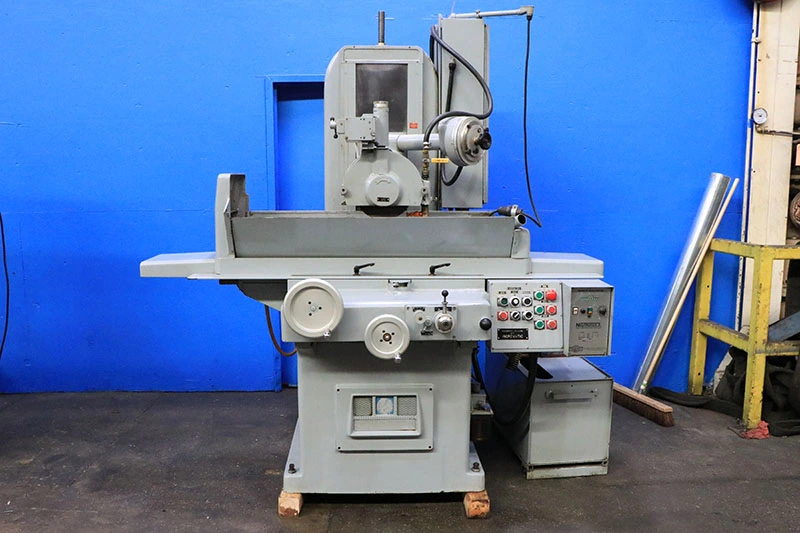

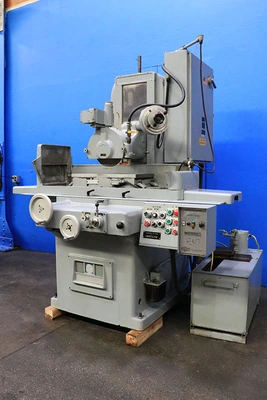

3-AXIS AUTOMATIC PRECISION HYDRAULIC SURFACE GRINDER
WITH EXTRA VERTICAL CAPACITY
*** ENTIRELY ORIGINAL, VIRTUALLY UNUSED CONDITION
FROM AN R & D SHOP - HOLY COW!! **
MODEL: 373 S/N: 373-489 NEW: 2000
WORKING SURFACE OF TABLE ................. 12" X 24"
HYDRAULIC TABLE TRAVEL, LONGITUDINAL ….... 29-1/2"
HYDRAULIC TABLE TRAVEL, CROSS ............ 13-1/4"

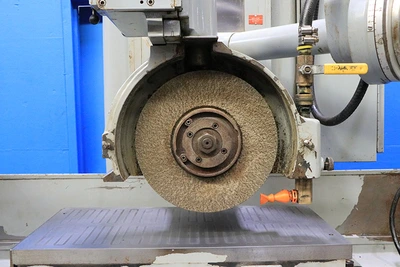

WHEEL SIZE ............................... 12" X 1" X 3"
GRINDING WHEEL SPEEDS (2) ................ 2000 & 2400 RPM
LONGITUDINAL TABLE SPEEDS ................ 3" - 150" IPM
AUTO CROSS FEED TO TABLE PER STROKE ...... 0.01" TO 1/2"
CONTINUOUS CROSS SPEED ................... 120" IPM
AUTO INCREMENTAL DOWNFEED INCREMENTS ..... 0.001" TO .0001"
MAX. TOTAL DOWNFEED FEED AMOUNT .......... 0.050"
VERTICAL MOVEMENT OF WHEELHEAD ........... 19"
MAXIMUM DISTANCE FROM WHEEL TO TABLE ..... 18"
APPROXIMATE FLOOR SPACE ............... 109"W x 73"D x 93"H
APPROXIMATE WEIGHT ....................... 5,700 LBS
EQUIPPED WITH:
EXTRA 3" VERTICAL CAPACITY, HIGHER COLUMN, NOT A RISER BLOCK

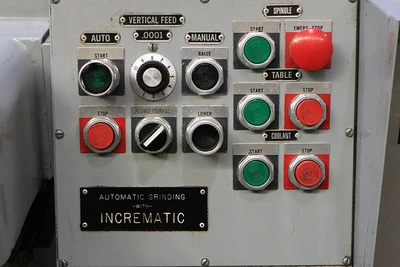

AUTOMATIC GRINDING WITH "INCREMATIC" (SEE SCANNED LITERATURE)
AUTOMATIC INCREMENTAL DOWNFEED (SURFACE& PLUNGE)
AUTO WHEEL RETRACTION @ COMPLETION OF GRIND CYCLE
AUTO TABLE LOAD POSITION
SPARKOUT TIMER ADJUSTABLE 0 TO 99 PASSES
HYDRAULIC LONGITUDINAL AND CROSS FEEDS
POWER RAPID WHEELHEAD POSITIONING
POWER RAPID CROSS POSITIONING
SADDLE LOCK

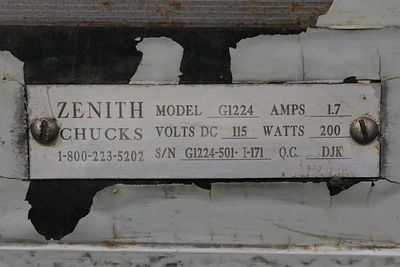

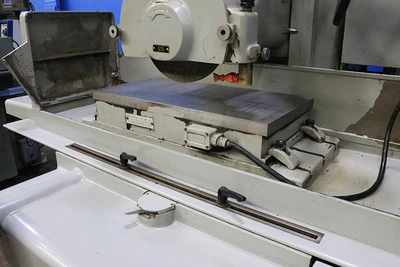

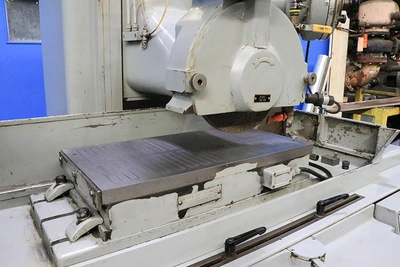

12" X 24" "HEAVY HOLDING POWER" ELECTRO-MAGNETIC CHUCK

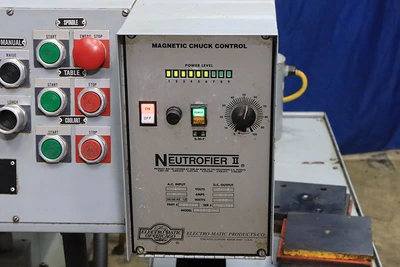

"ELECTRO-MATIC "NEUTROFIER II" VARIABLE HOLD NEUTROFIER CONTROL,
300 WATT POWER SUPPLY

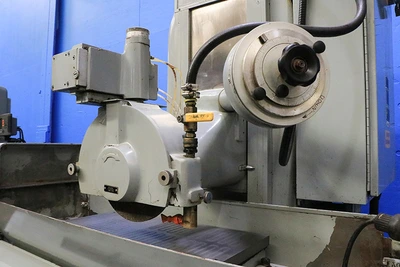

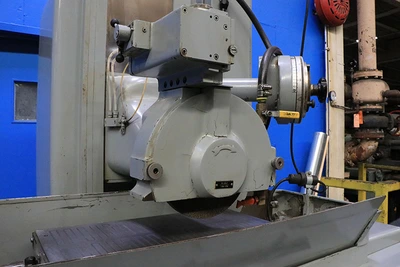

POWER OVER-THE-WHEEL DRESSER
COOLANT SYSTEM W/TANK/PUMP/SPLASH GUARDS
WORK LIGHT
SELF-CONTAINED HYDRAULIC SYSTEM MOTOR
3 HP 3/60/230-460 VOLT SPINDLE DRIVE
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS
LINK TO VIDEO: https://youtu.be/ifMkwLCPJ8o?si=yDbijsYMMocLa9y7
** ABSOLUTELY BEAUTIFUL - SUPERIOR CONDITION & APPEARANCE **
** - ORIGINAL PAINT - INCREDIBLY LOW USEAGE!!**
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
