USED 1987 MITSUI MSG-250MH, 2X DRO, WALKER LBP FINE-DIV. EMC,

8" Width 18" Length MITSUI MSG-250MH, 2X DRO, WALKER LBP FINE-DIV. EMC, SURFACE GRINDER, VAC-U-GUARD, COOLANT, POWER ELEVATION

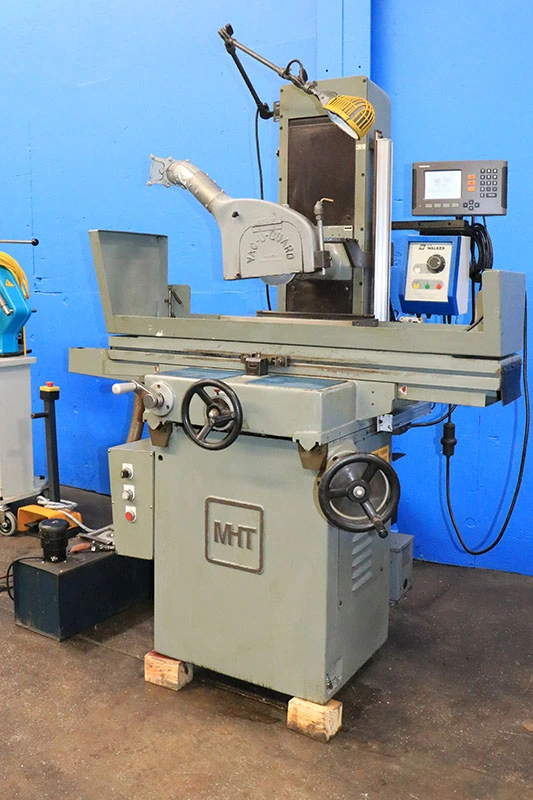

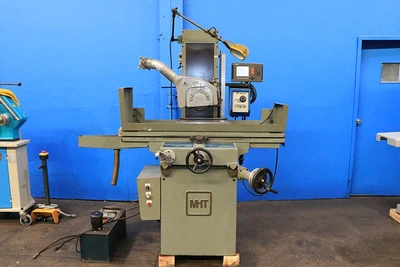

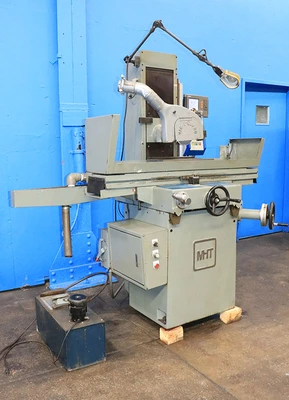

     8" X 18" MITSUI "SUPER-PRECISION"

             (MADE IN JAPAN)

HAND FEED SURFACE GRINDER WITH ROLLER BEARING TABLE

*** HEIDENHAIN 2-AXIS DIGITAL READOUT ***

MODEL: MSG250-MH     S/N: 87105133      NEW: 1987

TABLE WORK SURFACE ................. 8" x 19"

LONGITUDINAL TABLE MOVEMENT ........ 20"

CROSS TABLE TRAVEL ................. 10"

HEIGHT, TABLE TO SPINDLE CENTER .... 20"

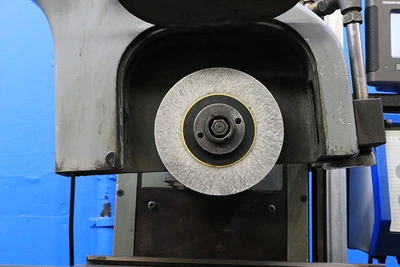

GRINDING WHEEL ..................... 8" DIA. MAX.

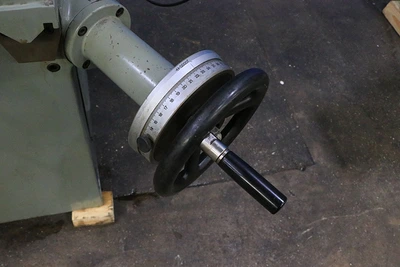

HANDWHEEL FOR CROSS FEED:

 PER ONE REV. REVOLUTION ........... 0.1"

 PER ONE DIVISION .................. 0.001"

 BY VERNIER ........................ 0.0001"

HANDWHEEL FOR VERTICAL FEED:

 PER ONE REV. REVOLUTION ........... 0.05"

 PER ONE DIVISION .................. 0.0001"

 BY VERNIER ........................ 0.00001"

APPROX. WEIGHT ..................... 2,200 LBS.

STANDARD MACHINE FEATURES:

HAND FEEDS, ALL 3 AXES ARE ROLLER BEARING SLIDES,

  WITH VERY LOW FRICTION & EASE OF USE

HARDENED & GROUND WAYS (REMOVEABLE) ON TABLE,

  CARRIAGE/SADDLE& COLUMN

TABLE, SADDLE & COLUMN MOVE ON LINEAR BALL BEARINGS

HIGH COLUMN DESIGN

AUTOMATIC ONE SHOT LUBRICATION SYSTEM

EQUIPPED WITH:

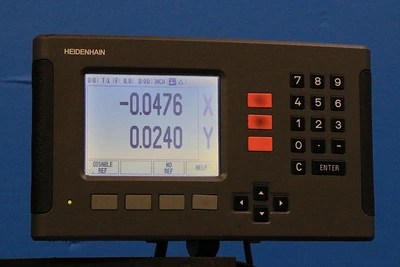

"HEIDENHAIN" 2-AXIS DIGITAL READOUT

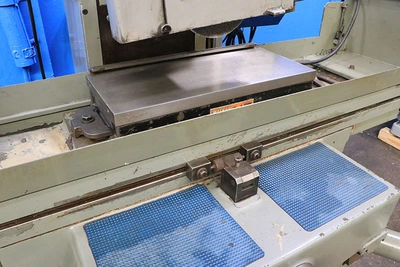

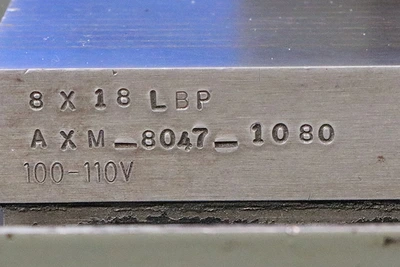

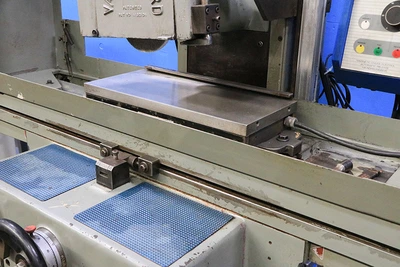

8" X 18" "O.S. WALKER" "LBP" "FINE-DIVISION"

  ELECTRO-MAGNETIC CHUCK

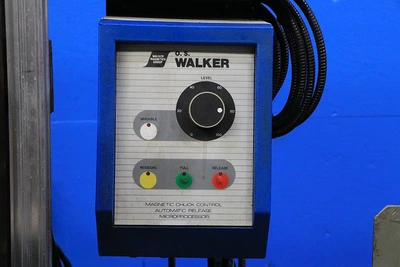

"O.S. WALKER" "SMART SERIES" VARIABLE HOLD NEUTROFIER CONTROL

OPTIONAL POWER RAPID POSITIONING OF THE GRINDING WHEEL,

 UP & DOWN, BY A SWICH ABOVE THE ON & OFF PUSHBUTTONS

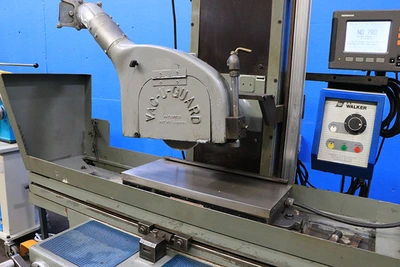

"VAC-U-GUARD' WHEEL COVER, WITH INLET FOR DRY GRINDING

SPLASH GUARDS AND COOLANT TANK FOR WET GRINDING

"GRAYMILLS" COOLANT TANK & PUMP

WORK LIGHT

MACHINE IS WIRED FOR 3/60/460 VOLTS

** "SUPERIOR" CONDITION & APPEARANCE (ORIGINAL PAINT) **

** FROM A FORTUNE 500 COMPANY - LOW USEAGE **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call David at 973-497-7570
