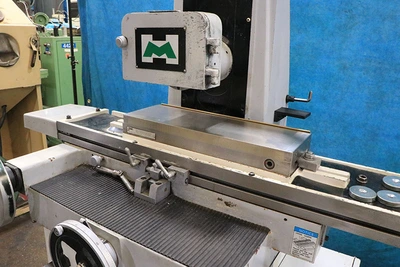

USED 2017 Chevalier FSG-618M, 2017, ROLLER BEARING TABLE,

6" Width 18" Length Chevalier FSG-618M, 2017, ROLLER BEARING TABLE, SURFACE GRINDER, ULTRA FINE-DIV. PMC

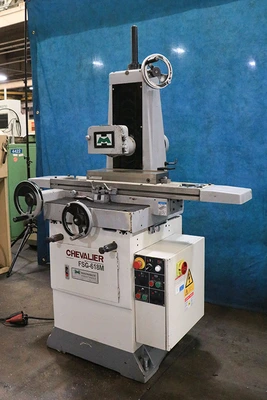

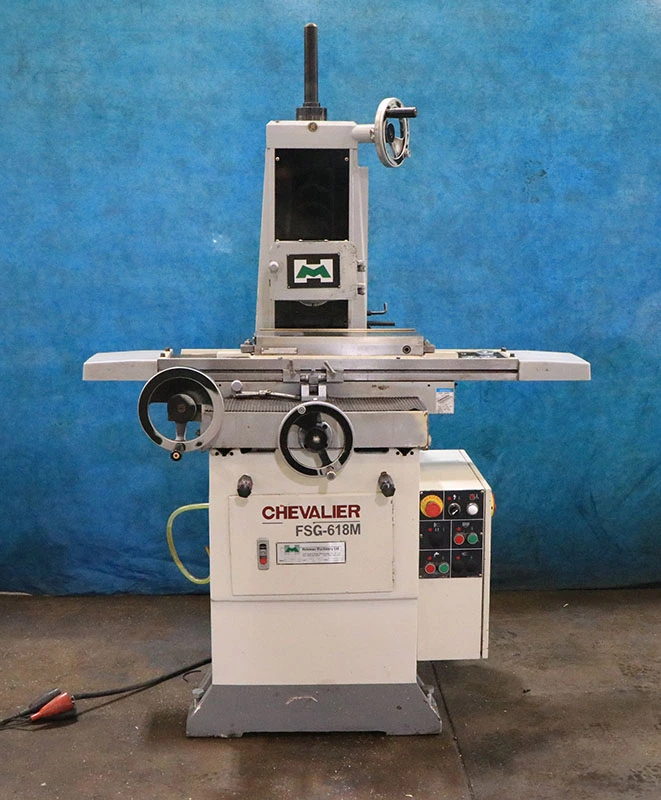

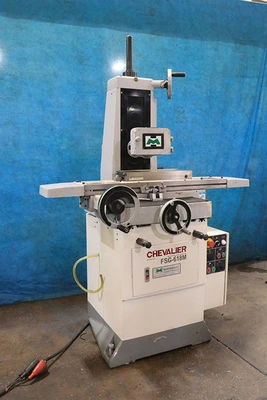

 6" x 18" Chevailer Hand Feed Surface Grinder

          with Roller Bearing Table

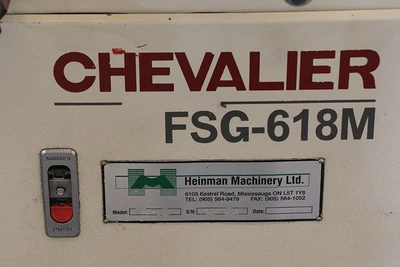

Model: FSG-618M     S/N: FA3173008    New: 2017

Maximum grinding length:............... 18"

Maximum grinding width:................ 6"

Maximum table travel,

 longitudinal: ........................ 19"

 cross: ............................... 7"

Maximum distance from table

 working surface to spindle center .... 18"

Cross handwheel graduations: .......... 0.0005"

Cross handwheel per rev. .............. 0.100"

Downfeed handwheel graduations ........ 0.0001"

Vertical handwheel per rev. ........... 0.050"

Spindle speed:......................... 3,450 RPM

Wheel size:...................... 8" x 1/2"W x 1-1/4"B

Approximate weight: ................... 1,500 lbs

Approximate Dimensions: ......... 41"W x 47"D x 76"H

Equipped with:

All meehanite cast iron construction

Hardened and ground table guideways with steel balls

Double V Guideways laminated with Turcite-B for saddle travel

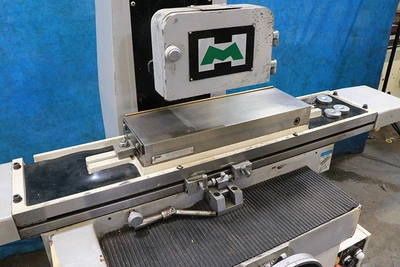

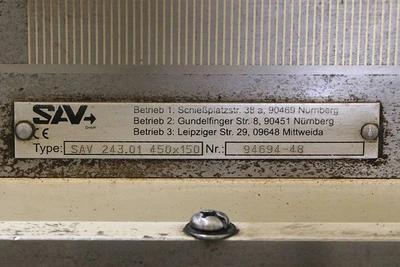

"SAV Gmbh", Made in Germany, 6" x 18" "Ultra Fine Division"

  permanent magnetic chuck

Work light

Automatic lubrication of leadscrews and ways

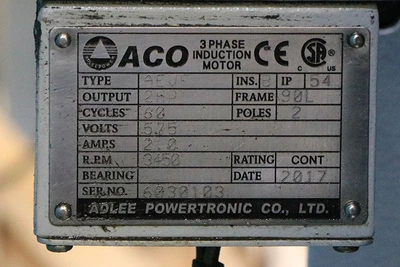

2 HP 3/60/575 volt spindle motor

Transformer available for $475, to provide 220 or 44o Volts

LINK TO VIDEO: https://youtu.be/XbsgcTpJGDs?si=LHO5gTMwA7ozkyfE

** "Near New"  Condition & Appearance (Original Paint) **

** Inspect Under Power in our Harrison, NJ Warehouse **

FOR MORE INFORMATION: Call Andy at 973-497-7600
