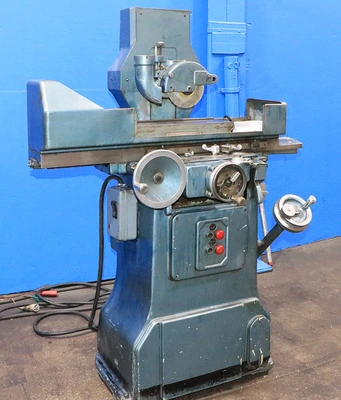

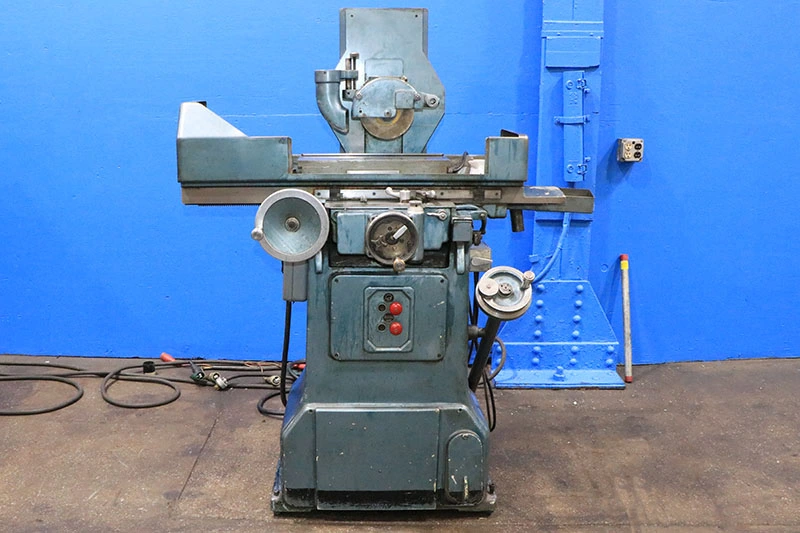

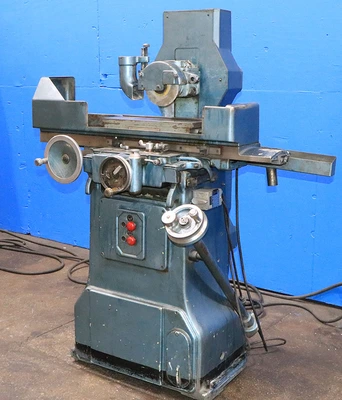

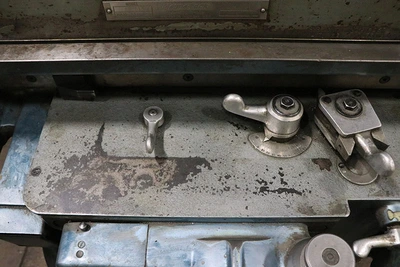

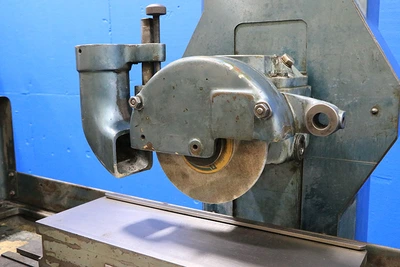

USED 1960 Jones & Shipman 540, HYD. TABLE & POWER CROSSFEED,
Overview
Description
6" Width 18" Length Jones & Shipman 540, HYD. TABLE & POWER CROSSFEED, SURFACE GRINDER, FINE DIV. LBP EMC,
Specifications
6" X 18" JONES & SHIPMAN
MADE IN ENGLAND "PRECISION"
HYDRAULIC SURFACE GRINDER
MODEL: 540P S/N: 46182 NEW: 1960
WIDTH & LENGTH GROUND ................. 6" X 18"
LONGITUDINAL TABLE TRAVEL ............. 19"
CROSS TRAVEL .......................... 6- 3/4"
LONGITUDINAL TABLE SPEED .............. 5' TO 40' FPM
ONE REV. OF HANDWHEEL, LONGITUDINAL ... 4.9"
AUTOMATIC CROSS FEED INCREMENT ........ 0.01" TO 0.07"

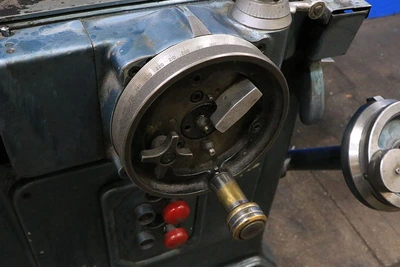

CROSSFEED HANDWHEEL GRADUATED TO ...... 0.001"
FINE CROSS FEED KNOB GRADUATED IN ..... 0.0001"
VERTICAL FEED GRADUATED TO ............ 0.0001"
MAX. VERTICAL MOVEMENT OF WHEELHEAD ... 11"
STANDARD GRINDING WHEEL ............... 7" x 1/2"W x 1- 1/4"B
SPEED OF GRINDING WHEEL ............... 3,400 RPM
SPINDLE MOTOR ......................... 2 H.P
HYDRAULIC MOTOR ....................... 1 H.P
APPROX. MACHINE WEIGHT ................ 2,000 LBS
WHEELHEAD SLIDE OPERATES ON PRELOADED, GREASE PACKED,
BALL BEARING ROLLERS RUNNING ON PRECISION BAR GUIDES.
AUTOMATIC LUBRICATION TO THE TABLE & CROSSFEED WAYS,
PROVIDED BY THE HYDRAULIC SYSTEM.
EQUIPPED WITH:
HYDRAULIC LONGITUDINAL & CROSS FEEDS
SELF-CONTAINED HYDRAULIC SYSTEM
WHEELHEAD SLIDE OPERATES ON PRELOADED, GREASE PACKED,
BALL BEARING ROLLERS RUNNING ON PRECISION BAR GUIDES.
AUTOMATIC LUBRICATION TO THE TABLE & CROSSFEED WAYS,
PROVIDED BY THE HYDRAULIC SYSTEM.
SUPER-SENSITIVE WHEELHEAD SLIDE - WHEELHEAD SLIDE

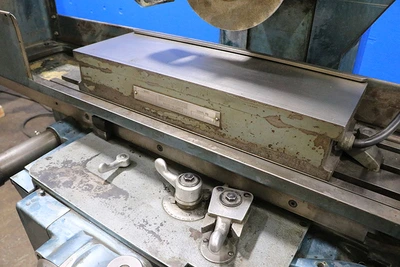

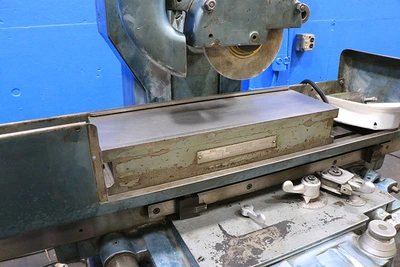

6" X 18" "MAGNETOOL" FINE-DIVISION LBP ELECTRO-MAGNETIC CHUCK
"MAGNETOOL" NEUTROFIER CHUCK CONTROL
3/60/220-440 VOLT ELECTRICS
MACHINE IS PRESENTLY IS WIRED FOR 3/60/220 VOLTS
SPECIAL NOTE:
MACHINE WAS USED "DRY". IF YOU WOULD LIKE TO HAVE THE
MACHINE EQUIPPED TO GRIND "WET", WE CAN EQUIP OUR
MACHINE WITH A NEW COOLANT TANK & PUMP, AND WIRE IT
INTO THE MACHINE. PRICE FOR THAT OPTION WOULD BE
$650 ADDITIONAL.
** FROM A SHOP IN SOMEONE'S HOUSE **
** LOW USEAGE, TRULY EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDWER POWER IN OUR HARRISON, NJ WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
