USED 2001 Chevalier FSG-1640ADII, 2001, 3X AUTO FEEDS, AUTO IDF
Overview
Description

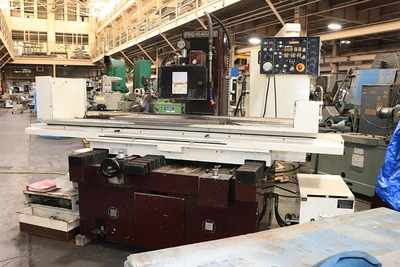

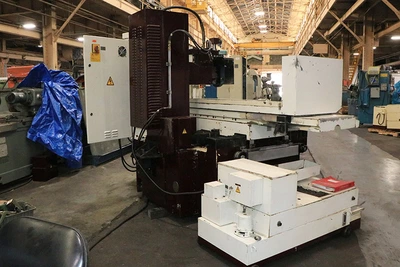

16" Width 40" Length Chevalier FSG-1640ADII, 2001, 3X AUTO FEEDS, AUTO IDF SURFACE GRINDER, EMC, COOLANT, POWER OTW DRESSER
Specifications

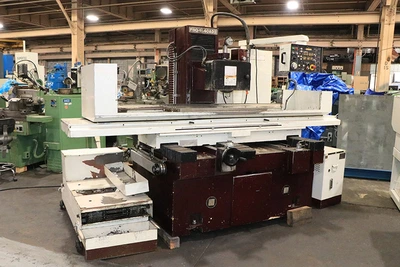

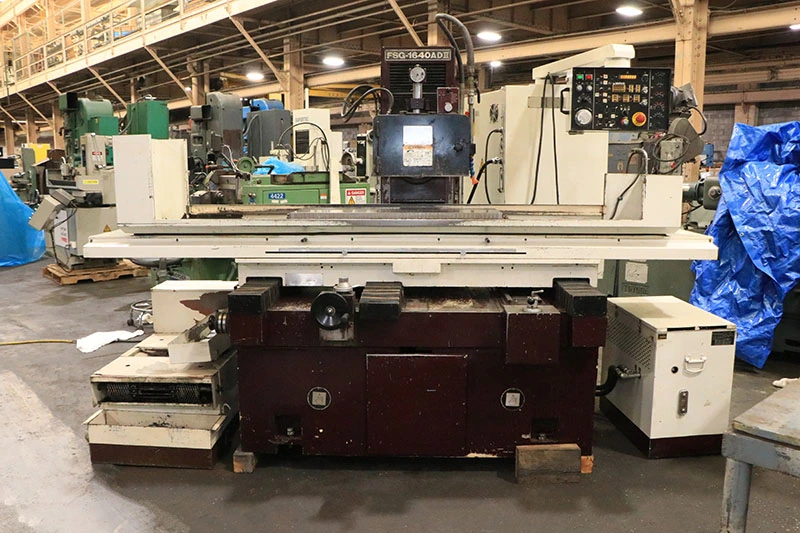

16" X 40" CHEVALIER PRECISION SURFACE GRINDER
W/PROGRAMMABLE MICROPROCESSOR AUTOMATIC
INCREMENTAL DOWNFEED CONTROL (PENDANT MOUNTED)
MODEL: FSG-1640ADII S/N: GC908003 NEW: 2001
TABLE SIZE............................ 15-3/4" x 39-5/8"
MAX. GRINDING CAPACITY ............... 16" x 40"
DIST. FROM SPINDLE CENTER TO TABLE ... 24-3/8"
MAX. LONGITUDINAL TABLE TRAVEL,
HYDRAULIC .......................... 41-5/16"
MAX. LONGITUDINAL TABLE TRAVEL,
MANUAL ............................. 43-1/4"
VARIABLE TABLE SPEED, HYDRAULIC ..... 16' TO 82' FPM
MAX. CROSSFEED TRAVEL, AUTOMATIC .... 16"
MAX. CROSSFEED TRAVEL, MANUAL ....... 18"
CROSS RAPID TRAVEL .................. 12' FPM
AUTOMATIC CROSSFEED INCREMENT ....... 1/8" TO 1-1/4"
HANDWHEEL PER REV. .................. 0.25"
HANDWHEEL PER GRADUATION ............ 0.0025"
MICROFEED- PER REV. ................. 0.005"
MICROFEED- PER GRAD. ................ 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED ...... 0.000050" TO .002"
VERTICAL RAPID TRAVERSE RATE ........ 8" IPM
SPINDLE MOTOR ....................... 5 HP
STANDARD GRINDING WHEEL ............. 14"DIA. x 2"W x 5"B
SPINDLE SPEED ....................... 1,750 RPM
APPROX. WEIGHT ...................... 9,240 LBS
APPROX. DIMENSIONS .................. 120" x 68" x 76"H
APPROX. DIMS. REQUIRED FOR OPS. ..... 158" x 68" x 76"H
EQUIPPED WITH:
HYDRAULICALLY ACUTATED LONGITUDINAL TABLE FEED,
WITH HANDWHEEL FOR MANUAL TABLE MOVEMET
ELECTROMECHANICALLY ACTUATED FEED OF SADDLE

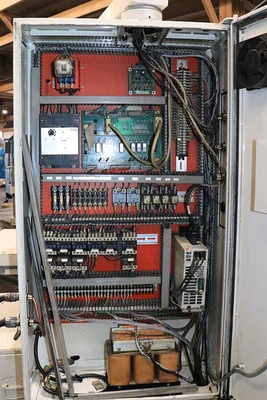

VERTICAL DRIVE BY AC SERVO MOTOR

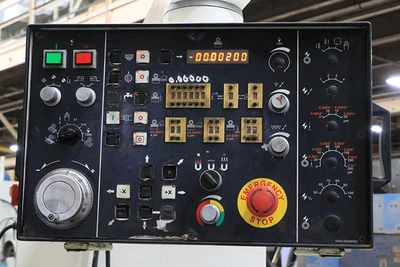

PENDANT MOUNTED AND MICROPROCESSOR CONTROLLED AUTOMATIC
INCREMENTAL DOWNFEED OF GRINDING WHEELHEAD FROM
0.00005" T0 0.002" IN SURFACE OR PLUNGE MODES OF
OPERATION. FULLY AUTOMATIC GRINDING CYCLE
INCLUDING RAPID ADVANCE OF GRINDING WHEELHEAD,
0 T0 7 SPARKOUT PASSES, AND RETRACTION OF WHEELHEAD
TO A PRE-SET DISTANCE AT THE COMPLETION OF THE CYCLE.
TABLE AND SADDLE GUIDE WAYS MADE OF SPECIAL STEEL RAILS
WITH HIGH ACCURACY STEEL ROLLERS
PRECISION NEEDLE ROLLER BEARINGS USED ON THE ELEVATING
GUIDE WAYS
FINE (MICRO) FEEDS GRADUATED TO .00005" FOR BOTH
VERTICAL & CROSS FEEDS

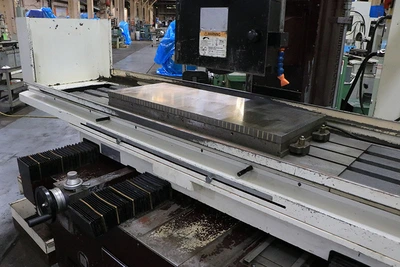

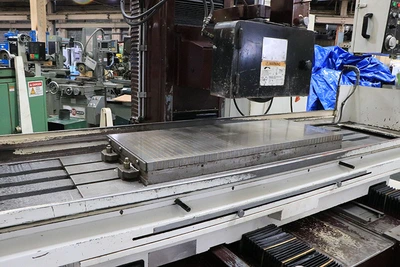

15-3/4" X 39-3/8" KANETSU MODEL KET-40100K
ELECTRO-MAGNETIC CHUCK WITH A PENDANT MOUNTED
POTENTIOMETER FOR VARIABLE HOLDING POWER AND A
SELECTOR SWITCH FOR AUTOMATIC DEMAGNETIZATION
OF WORK PIECE.

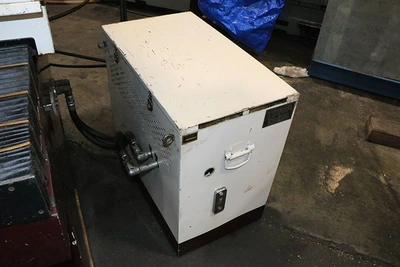

COOLANT SYSTEM w/PAPER FILTRATION

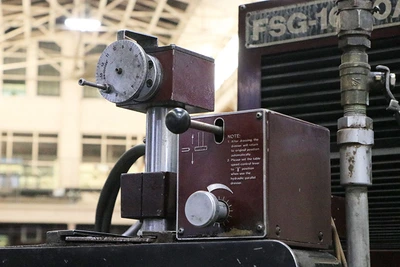

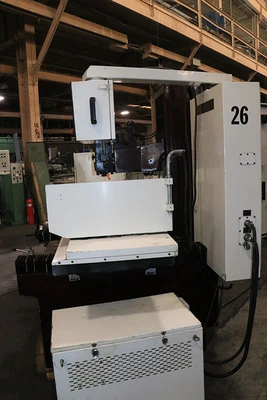

POWER "OVER-THE-WHEEL" DRESSER
EXTERNAL HYDRAULIC PUMP AND TANK
5 HP 3/60/575 VOLT DRIVE SPINDLE MOTOR
TRANSFORMER WILL BE PROVIDED, WIRED FOR 200, 208,
230, 240, 440, 460 OR 480 VOLTS. PLEASE SPECIFIY
YOUR VOLTAGE, AND WE WILL PROVIDE THE CORRECT
TRANSFORMER.
LINK TO VIDEO: https://youtu.be/UF8wksWJnl0?si=RfWyWrINF7_NZpUs
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
FOR MORE INFORMATION: Call Andy at 973-497-7600
