USED 1997 Okamoto LINEAR 6.18, 1997, ROLLER BEARING TABLE,

6" Width 18" Length Okamoto LINEAR 6.18, 1997, ROLLER BEARING TABLE, SURFACE GRINDER, WALKER FINE-DIV. "LBP" EMC,

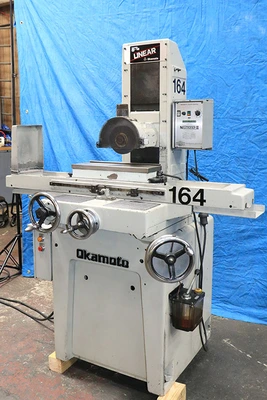

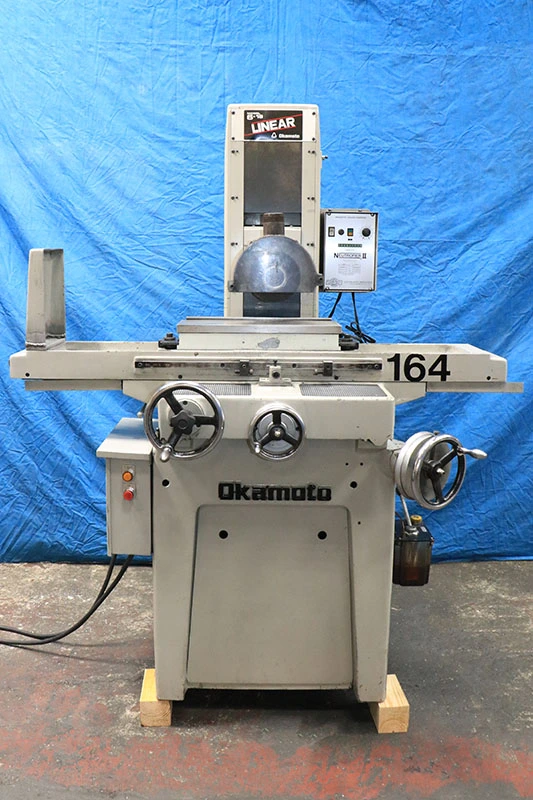

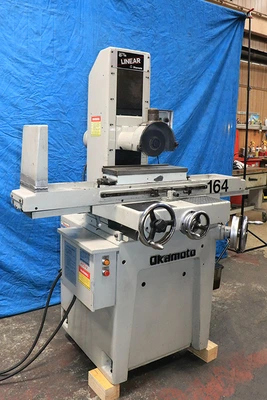

      6" x 18" OKAMOTO "HIGH-PRECISION"

       HANDFEED SURFACE GRINDER

     WITH ROLLER BEARING TABLE DESIGN

MODEL: LINEAR 618     S/N: 4990      NEW: 1997

WIDTH & LENGTH GROUND .....................6" x 18"

TABLE TO SPINDLE CENTER .................. 18"

HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE ... 11"

LONGITUDINAL TABLE TRAVEL ................ 19"

CROSS TRAVEL ............................. 8"

GRINDING WHEEL CAPACITY .......... 8" x 1" x 1-1/4"B

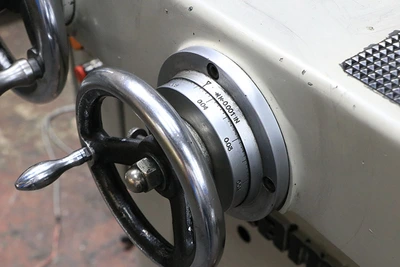

CROSS FEED PER REV. OF HANDWHEEL

(.001" GRAD.) ............................ 0.100"

CROSS FEED HANDWHEEL VERNIER READS TO .... 0.0001"

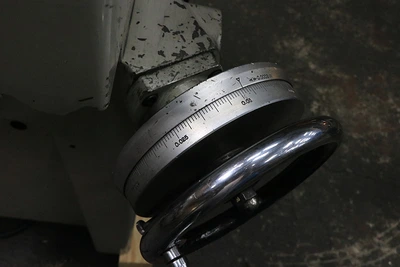

VERTICAL FEED PER REV. OF HANDWHEEL

(.0002" GRAD.) ........................... 0.0500"

APPROX. WEIGHT .......................... 2,020 LBS.

APPROX. DIMENSIONS ................ 58" x 46" x 71"H

  EQUIPPED WITH:

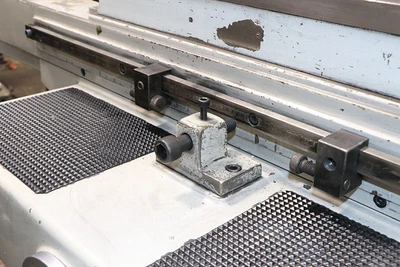

LONGITUDINAL TABLE TRAVEL ON LINEAR BALL

 BEARINGS DRIVEN BY CABLE SYSTEM

HARDENED AND GROUND WAYS ON TABLE, SADDLE AND COLUMN

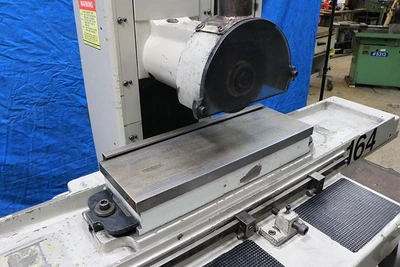

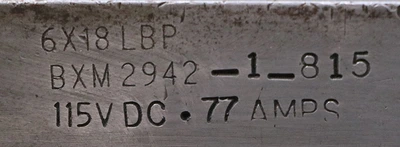

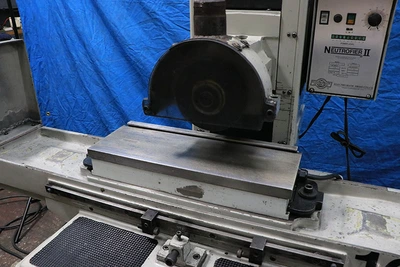

6" x 18" O.S. WALKER ELECTRO-MAGNETIC CHUCK,

 MODEL "LBP", FINE-DIVISION LINES

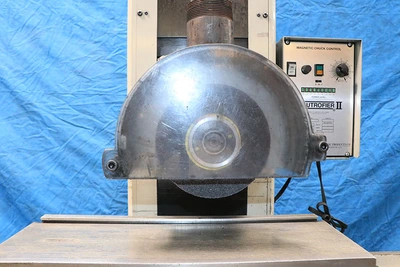

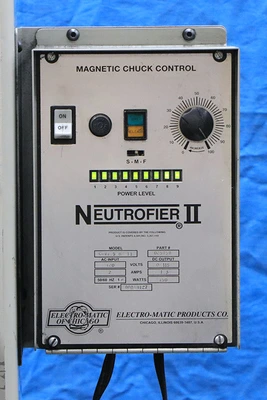

ELECTRO-MATIC "NEUTROFIER II" NEUTROFIER CONTROL,

 WITH VARIABLE HOLD POWER & DEMAG

MANUALLY OPERATED ONE SHOT LUBRICATION SYSTEM

2 H.P. 3/60/230-460 VOLT HIGH-PRECISION

 DIRECT DRIVE CARTRIDGE-TYPE SPINDLE

WORK LIGHT

MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLTS

Link to video: https://youtu.be/obweFFTdUMA

** ORIGINAL PAINT - VERY GOOD CONDITION **

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
