USED 1988 Mattison DIE BLOCK, S/N: 24468, NEW 1988, 3X AUTO FEEDS
Overview
Description
20" Width 48" Length Mattison DIE BLOCK, S/N: 24468, NEW 1988, 3X AUTO FEEDS SURFACE GRINDER, 15 H.P. SPINDLE, 20" x 3"W WHEEL, EMC, COOLANT
Specifications

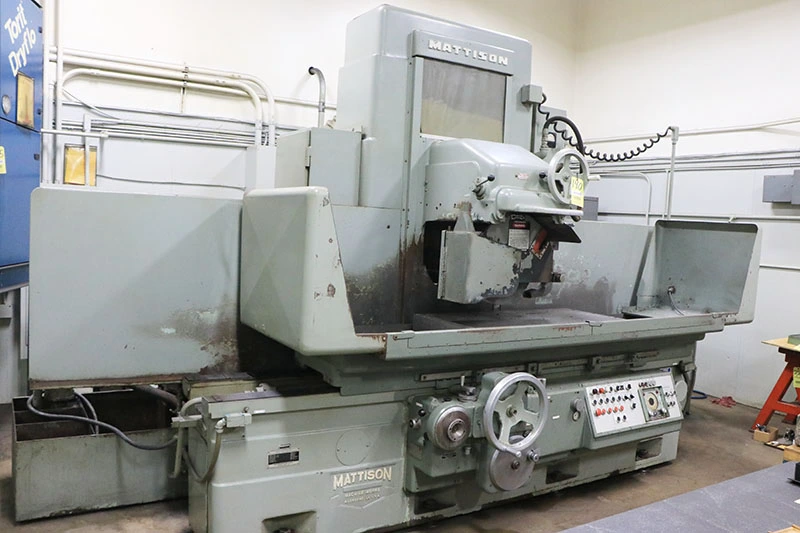

20" X 48" MATTISON 'Die Block' "Double Column"
Hydraulic Surface Grinder with Automatic Incremental Downfeed
Model: Die Block S/N: 24468 New: 1988
Specifications:
Width & length ground:...................... 20" x 48"
Vertical capacity under 20" diameter wheel:. 24"
Longitudinal table travel .................. 60"
Infinitely variable table traverse speeds:.. up to 125 F.P.M.
Auto crossfeed increment:................... 1/32" to 3"
Auto downfeed increment:.................... 0.004" to .0002"
Vertical handwheel graduation:.............. 0.0001"
Grinding wheel diameter x bore x width:..... 20" x 10" x 4"W
Approximate Weight (Machine Only): 25,700 Lbs.
Approximate Dimensions (Machine Only): 150"L-R x 86"F-B x 110"High
Equipped With:
Double box-type column construction
Hydraulically actuated table traverse
Automatic incremental downfeed of the grinding wheelhead

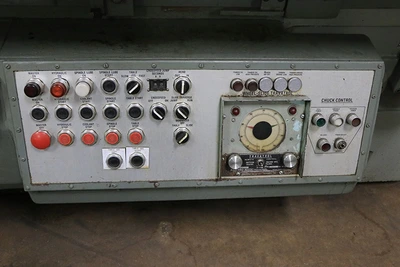

Trav-A-Trol electronic control of the cross-feed movement
Power rapid traverse to the grinding wheelhead
24" Vertical Capacity

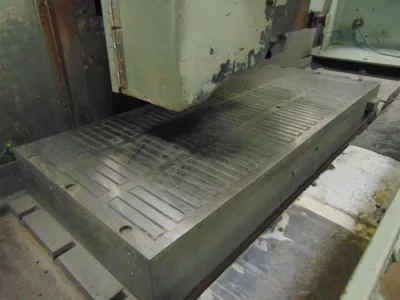

20" x 48" Electromagnetic chuck
Variable hold Neutrofier control
Built-in wheel dresser
Pressurized lubrication system
External coolant system, with magnetic separator

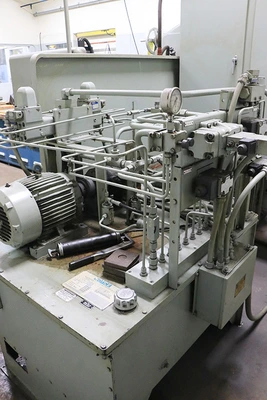

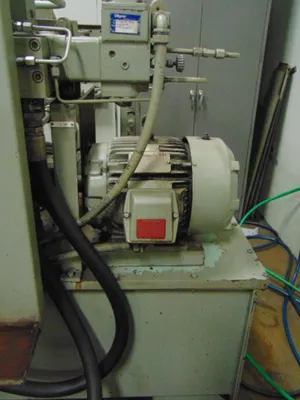

External hydraulic system with 10 H.P. 3/6-/230-460 volt pump motor
15 H.P. 3/60/230-460 volt direct drive spindle motor
Machine is wired for 460 volt operation, 37.56 Total Amps
Link to video: https://youtu.be/Z8RWMvELft0
** Inspect Under Power in Our Harrison, NJ Warehouse **
** Ways are Superb, Spindle is Dead Quiet,
Machine functions flawlessly **
** Superior Condition & Appearance **
FOR MORE INFORMATION: Call Andy at 973-497-7600
