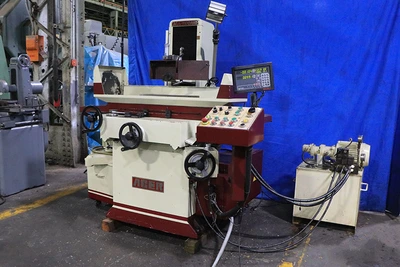

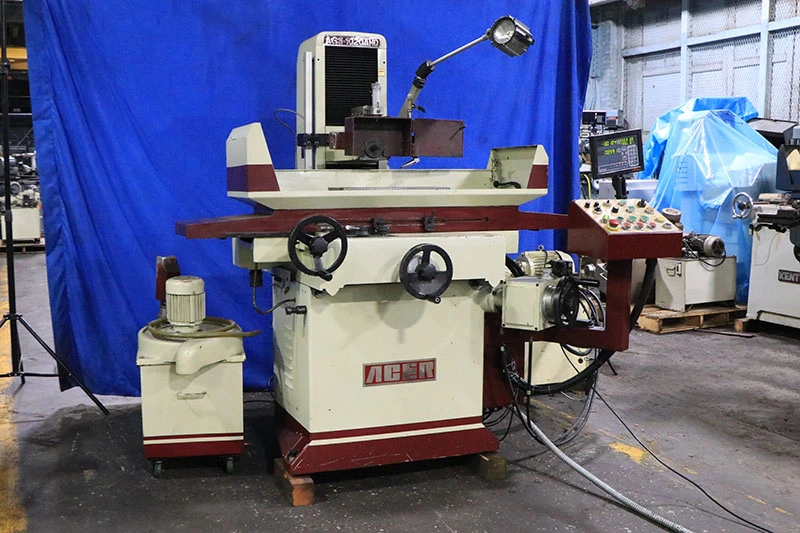

USED 2010 Acer AGS-1020AHD, NEW 2010, 3X AUTO FEEDS
Overview
Description

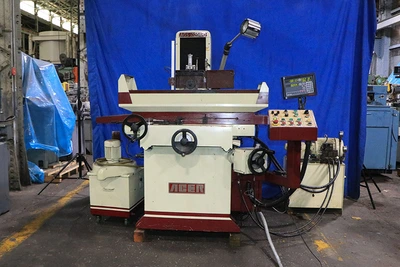

10" Width 20" Length Acer AGS-1020AHD, NEW 2010, 3X AUTO FEEDS SURFACE GRINDER, POWER ELEV., EMC, COOLANT, DRO
Specifications
8" X 18" ACER
3-AXIS AUTOMATIC FEEDS SURFACE GRINDER
WITH AUTOMATIC INCREMENTAL DOWNFEED
NEWALL TWO-AXIS DIGITAL READOUT DISPLAY
MODEL: AGS-1020AHD
S/N: N10080206-A
NEW: 2010
MAX. SURFACE GROUND .................. 10" X 20"
DIST. FROM SPINDLE CENTER TO TABLE ... 19- 1/2"
VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 80' FPM
MAX. TABLE TRAVEL .................... 20- 1/2"
AUTOMATIC CROSSFEED INCREMENT ........ 0" TO 1"
MAX. CROSSFEED TRAVEL ................ 11"
DOWNFEED HANDWHEEL PER GRADUATION .... 0.0005"
PER REVOLUTION ....................... 0.1"
CROSSFEED HANDWHEEL PER GRADUATION ... 0.001"
PER REVOLUTION ....................... 0.2"
AUTO INCREMENTAL DOWNFEED ............ 0.001" TO .0001"
SPINDLE MOTOR ........................ 2 H.P.
STANDARD GRINDING WHEEL .............. 8"D x 1/2" x 1- 1/4"
APPROX. WEIGHT ....................... 2,970 LBS
EQUIPPED WITH:
AUTOMATIC INCREMENTAL DOWNFEED (SURFACE & PLUNGE)
POWER RAPID WHEELHEAD POSITIONING OPTION BY
PUSHBUTTON ON CONSOLE, OUR MACHINE HAS THIS!
HYDRAULICALLY POWERED LONGITUDINAL FEED
POWER CROSSFEED
TURCITE-B ON THE LONGITUDINAL WAYS (LOW FRICTION & WEAR)

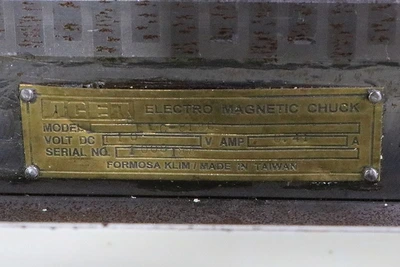

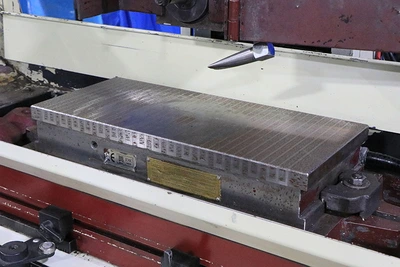

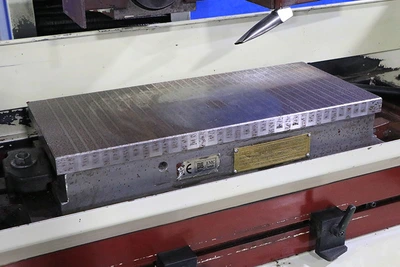

8" x 18" "ACER" ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL
ON THE MACHINE CONSOLE CONTROL
COMBINATION COOLANT SYSTEM & DUST COLLECTOR

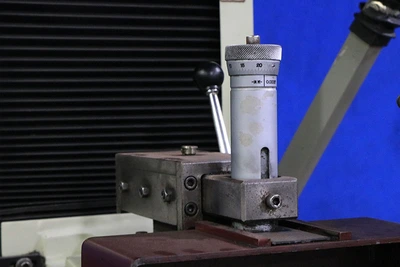

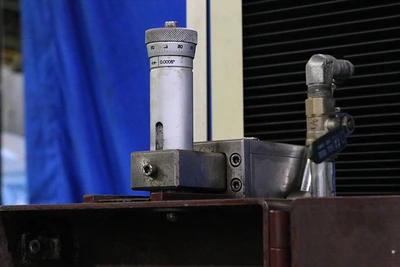

OVER-THE-WHEEL DRESSER

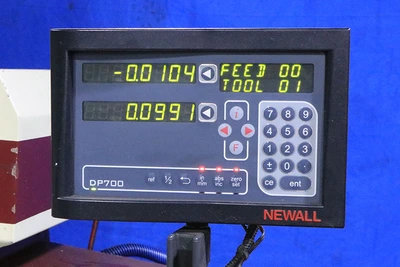

"NEWALL" 2-AXIS DIGITAL READOUT DISPLAY
MEEHANITE CASTING
AUTO LUBE SYSTEM
EXTERNAL HYDRAULIC SYSTEM
2 HP 3/60/230-460 VOLT EXTERNAL HYDRAULIC PUMP MOTOR & TANK
2 HP 3/60/230-460 VOLT SPINDLE MOTOR
MACHINE IS WIRED FOR 3/60/230 VOLTS
** EXCEPTIONAL CONDITION& APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
