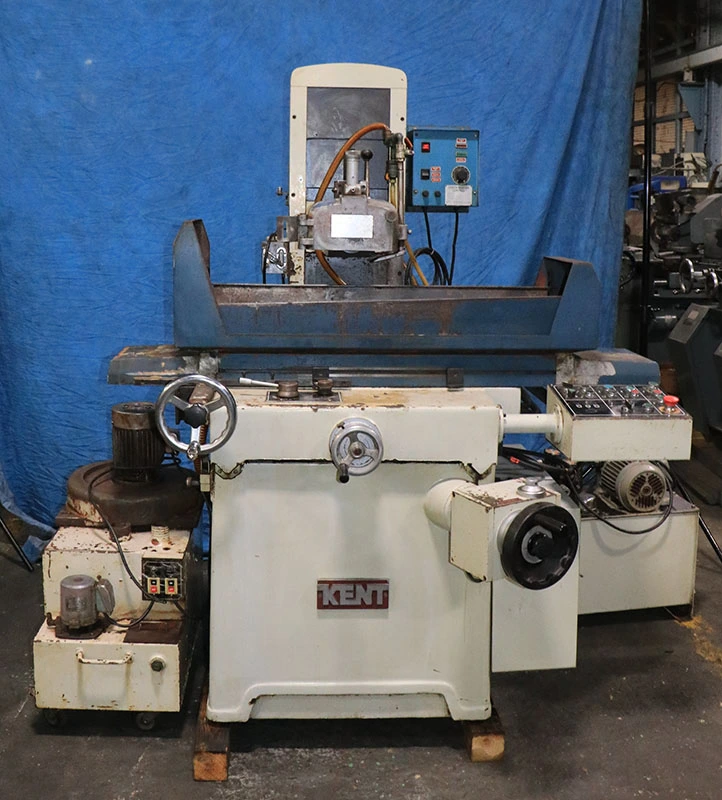

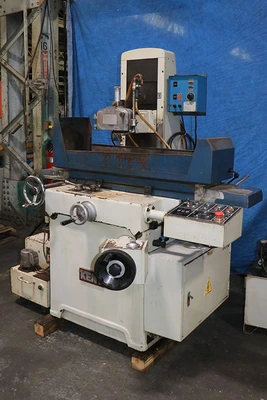

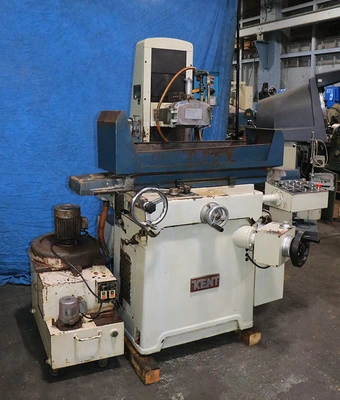

USED 1994 Kent KGS-250AHD, NEW 1994, AUTO IDF , 3X AUTO FEEDS,

8" Width 18" Length Kent KGS-250AHD, NEW 1994, AUTO IDF , 3X AUTO FEEDS, SURFACE GRINDER

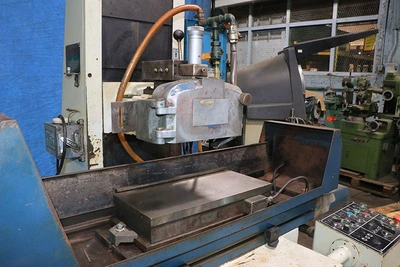

  8" X 18" KENT HYDRAULIC SURFACE GRINDER

  W/AUTOMATIC INCREMENTAL DOWNFEED

MODEL: KGS-250-AHD   S/N: 94065302    NEW: 1994

MAX. SURFACE GROUND ................ 10" X 20"

DIST. SPINDLE CENTER TO TABLE ...... 16"

VARIABLE TABLE SPEED, HYDRAULIC .... 16' TO 67' FPM

AUTOMATIC CROSSFEED INCREMENT ...... 0.04" TO 0.3"

CROSSFEED HANDWHEEL PER GRAD. ...... 0.001"

  PER REVOLUTION ................... 0.2"

  1 GRAD. .......................... 0.001"

  VERNIER SCALE .................... 0.0001"

AUTO INCREMENTAL DOWNFEED .......... 0.001" TO .0001"

VERTICAL RAPID POSITIONING RATE .... 35" IPM

VERTICAL DOWNFEED ON HANDWHEEL,

 1 REV. ............................ 0.1"

 1 GRAD. ........................... 0.0005"

 VERNIER SCALE ..................... 0.00005"

SPINDLE MOTOR ...................... 1.5 H.P.

STANDARD GRINDING WHEEL ............ 8"D X 1/2" X 1- 1/4"

APPROX. WEIGHT ..................... 2,860 LBS

FLOOR SPACE REQUIRED ............... 71" X 55"W X 70"H

  EQUIPPED WITH:

AUTOMATIC INCREMENTAL DOWNFEED (VARIABLE 10 STEPS)

POWER RAPID WHEELHEAD POSITIONING

HYDRAULIC TABLE TRAVERSE

POWER CROSSFEED

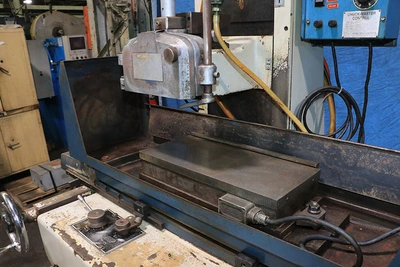

8" X 18" FINE-POLE ELECTRO-MAGNETIC CHUCK

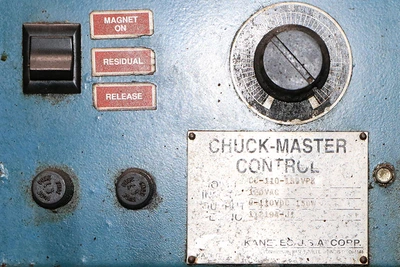

"KANETEC" VARIABLE HOLD NEUTROFIER CONTROL

DUST COLLECTOR & COOLANT SYSTEM

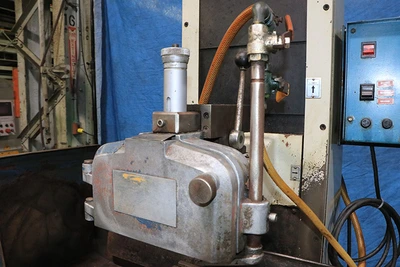

OVER-THE-WHEEL DRESSER

MEEHANITE CASTING

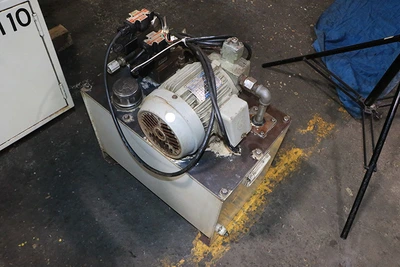

EXTERNAL HYDRAULIC SYSTEM

MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

  ** VERY GOOD CONDITION & APPEARANCE  **

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
