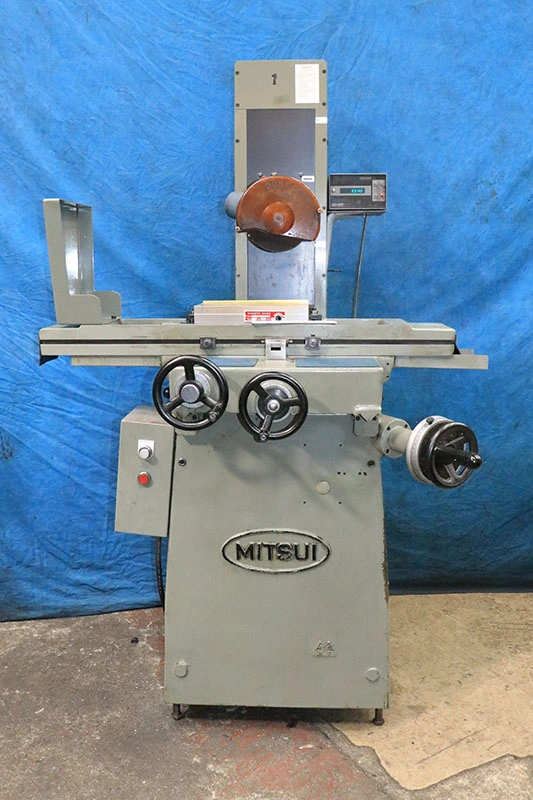

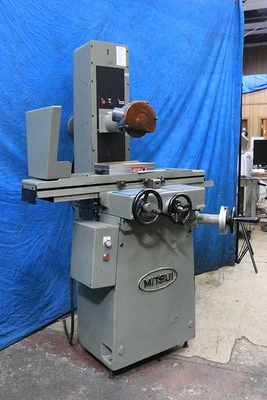

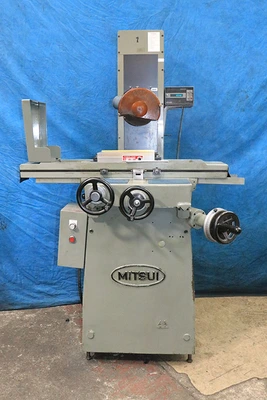

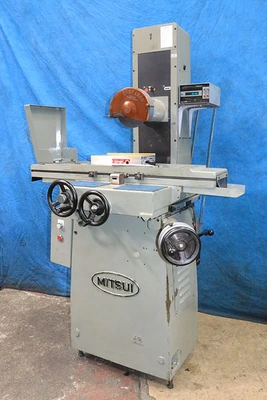

USED 1984 MITSUI MSG-200MH, 1984, 1-AXIS DRO, ROLLER BEARING TABLE

6" Width 12" Length MITSUI MSG-200MH, 1984, 1-AXIS DRO, ROLLER BEARING TABLE SURFACE GRINDER, PMC

  6" X 12" MITSUI "HIGH-PRECISION" (MADE IN JAPAN)

  HAND FEED SURFACE GRINDER w/ROLLER BEARING TABLE

  **  ACU-RITE 1-AXIS DIGITAL READOUT DISPLAY **

 MODEL: MSG-200MH      S/N: 84095336    NEW: 1984

  WIDTH& LENGTH GROUND ...................... 6" X 12"

  TABLE TO SPINDLE CENTER ................... 18"

  HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE .... 11"

  LONGITUDINAL TABLE TRAVEL ................. 15"

  CROSS TRAVEL .............................. 8"

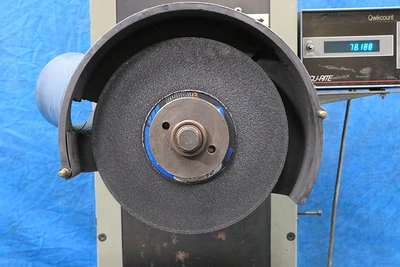

  GRINDING WHEEL CAPACITY ............. 8" x 3/4" x 1-1/4"

  CROSS FEED PER REV. OF HANDWHEEL

  (.001" GRAD.) ............................. 0.100"

  VERTICAL FEED PER REV. OF HANDWHEEL

  (.0001" GRAD.) ............................ 0.0500"

  APPROX. WEIGHT ........................ 1,500 LBS.

  APPROX. DIMENSIONS .................. 58" x 46" x 71"H

  EQUIPPED WITH:

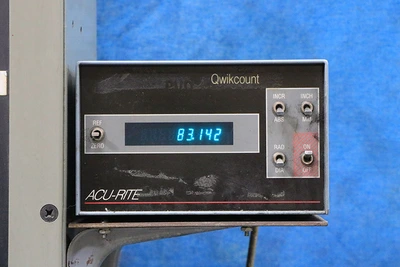

  "ACU-RITE" 1-AXIS DIGITAL READOUT DISPLAY

  TABLE MOVES ON LINEAR BALL BEARINGS (REMOVABLE)

  MOUNTED BETWEEN (3) VEE WAYS& (1) FLAT WAY ...

  DRIVEN BY CABLE SYSTEM

  HARDENED & REPLACEABLE STEEL WAYS ON TABLE,

  CARRIAGE/SADDLE & COLUMN

    CROSS FEED HANDWHEEL (.0001" VERNIER)

  PRECISION CARTRIDGE SPINDLE DESIGN

  1-1/3 HP SPINDLE MOTOR

  AUTOMATIC LUBRICATION SYSTEM

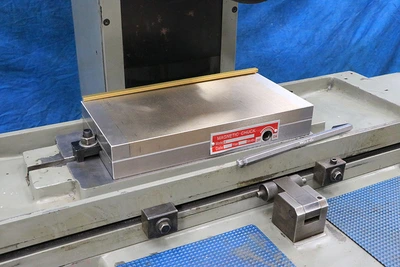

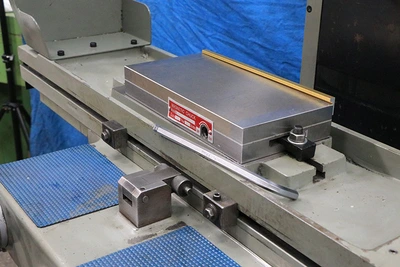

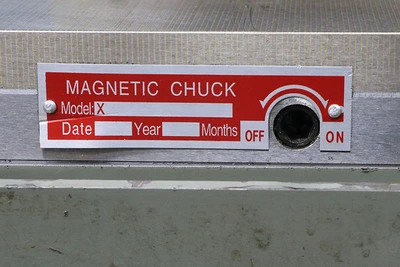

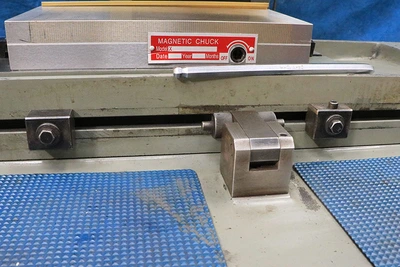

  6" X 12" "FINE-DIVISION PERMANENT MAGNETIC CHUCK

  MACHINE IS WIRED FOR 3/60/220 VOLT ELECTRICS

  ** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE **

  ** EXCLELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **

FOR MORE INFORMATION: Call Andy at 973-497-7600
