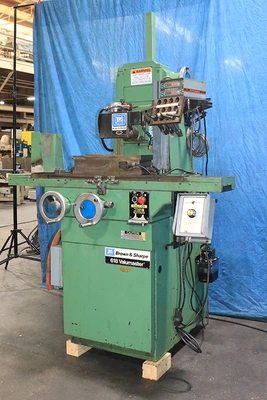

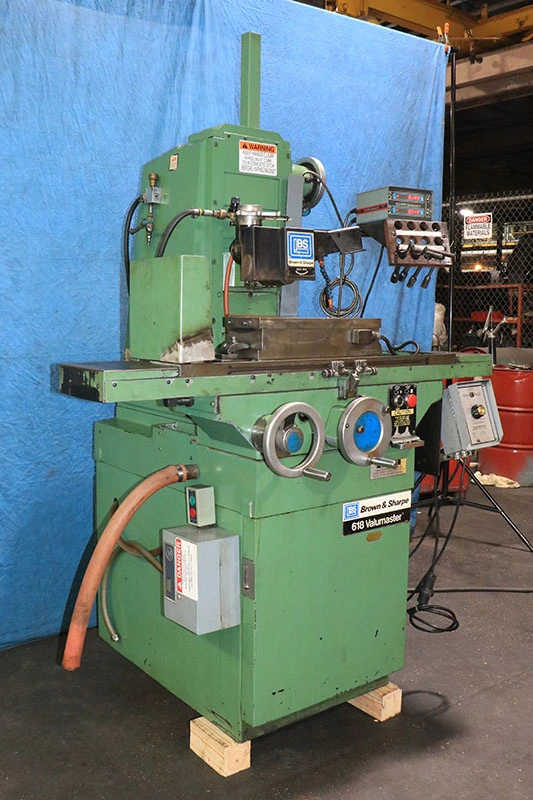

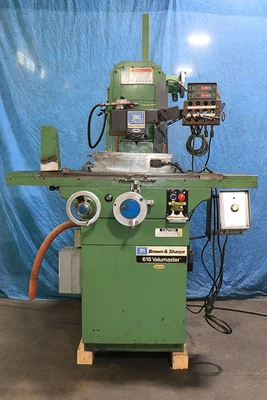

USED 1985 Brown & Sharpe 618 VALUEMASTER, MADE IN JAPAN BY AMADA IN 1985,

6" X 18" BROWN & SHARPE

(MADE IN JAPAN BY AMADA Co.)

"SUPER-PRECISION" HAND FEED SURFACE GRINDER

WITH 2-AXIS DIGITAL READOUT

MODEL: 618 VALUEMASTER

S/N: 523-2618-4055

NEW: 1985

EQUIPPED WITH:

COLUMN TYPE DESIGN -  COLUMN MOVES FOR CROSS FEED.

ROLLER BEARING TABLE

FINE FEED KNOBS FOR CROSS & VERTICAL FEEDS (.0001")

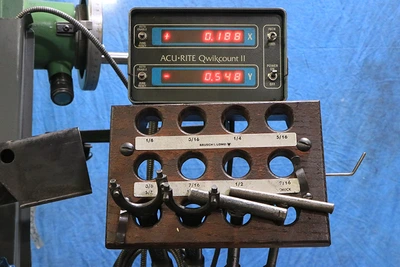

"ACU-RITE" "QWIKCOUNT" 2-AXIS DIGITAL READOUT

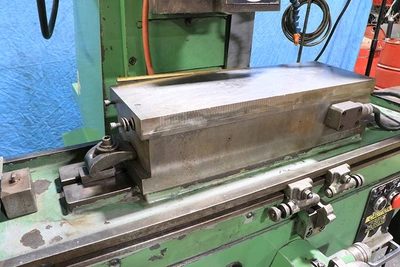

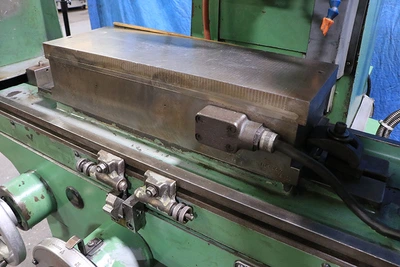

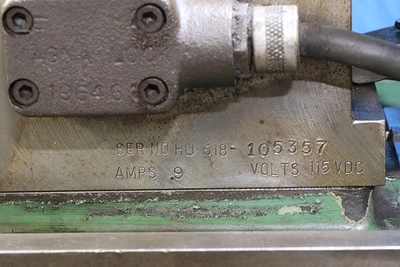

6" X 18" "MAGNUFLUX” “FINE-DIVISION” CROSS POLE

 ELELECTRO-MAGNETIC CHUCK

"MAGNA-LOCK" "FLUX-MASTER" 150 WATT VARIABLE HOLD NEUTROFIER

BIJUR ONE-SHOT LUBRICATOR

2 H.P. BROWN & SHARPE "ORIFLEX" BELT DRIVE

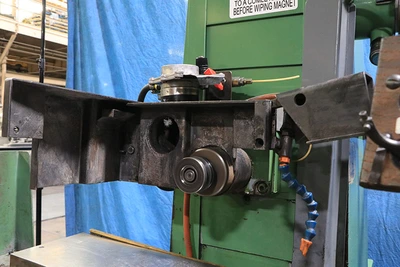

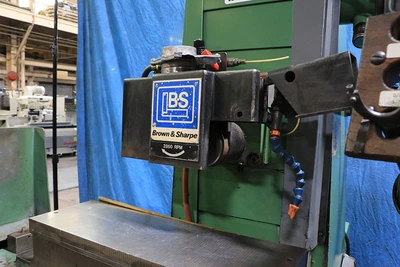

 SUPER-PRECISION SPINDLE DRIVE

3/60/230-460 VOLTS ELECTRICS

MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS

SPECIFICATIONS:

WIDTH & LENGTH GROUND ........................... 6" X 18"

HEIGHT OF WORK GROUND W/7" WHEEL ................ 15"

DISTANCE, CENTER OF WHEEL SPINDLE:

  TO TOP OF TABLE, MINIMUM ...................... 3-1/4"

                   MAXIMUM ...................... 18"

LONGITUDINAL TABLE TRAVEL ....................... 20"

CROSS TRAVEL .................................... 7"

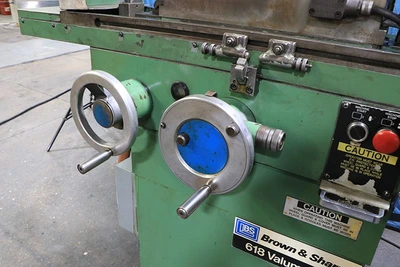

CROSS HANDWHEEL GRADUATED TO READ TO ...........  0.0002"

CROSS, FINE FEED KNOB GRADUATED TO READ TO ...... 0.0001"

VERTICAL ADJUSTMENT OF WHEEL SPINDLE ............ 15-1/2"

VERTICAL HANDWHEEL GRADUATED TO READ TO ......... 0.0002"

VERTICAL, FINE FEED KNOB GRADUATED TO READ TO ..  0.0001"

STD. GRINDING WHEEL SIZE ........................ 8" X 1/2"

APPROX. MACHINE EIGHT ......................... 1,725 LBS.

APPROX. MACHINE DIMENSIONS ............... 52" X 40" X 74"

LINK TO VIDEO: https://youtu.be/UExqugdgVyw

* INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE *

** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE  **

FOR MORE INFORMATION: Call Andy at 973-497-7600
