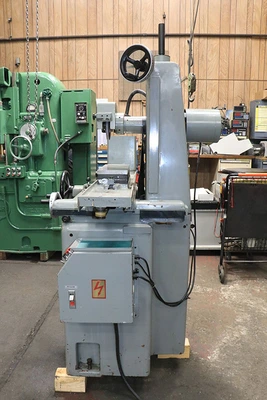

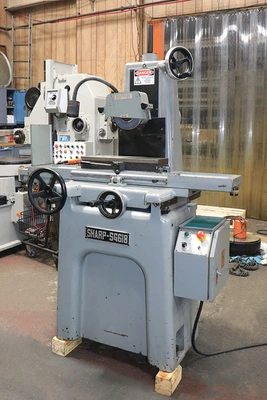

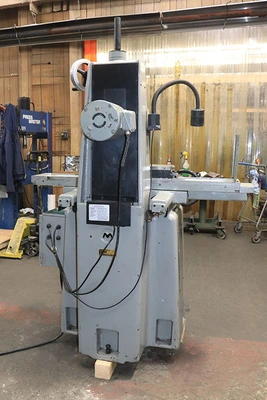

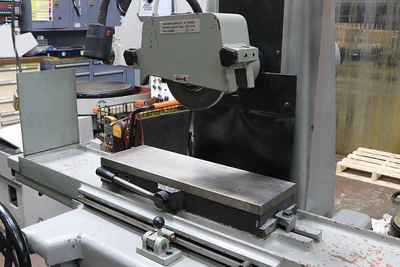

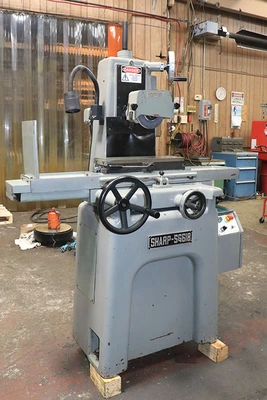

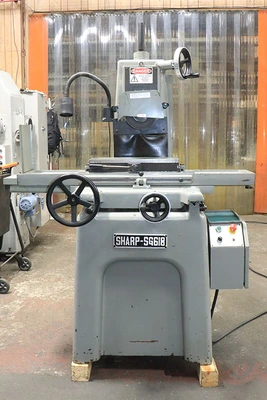

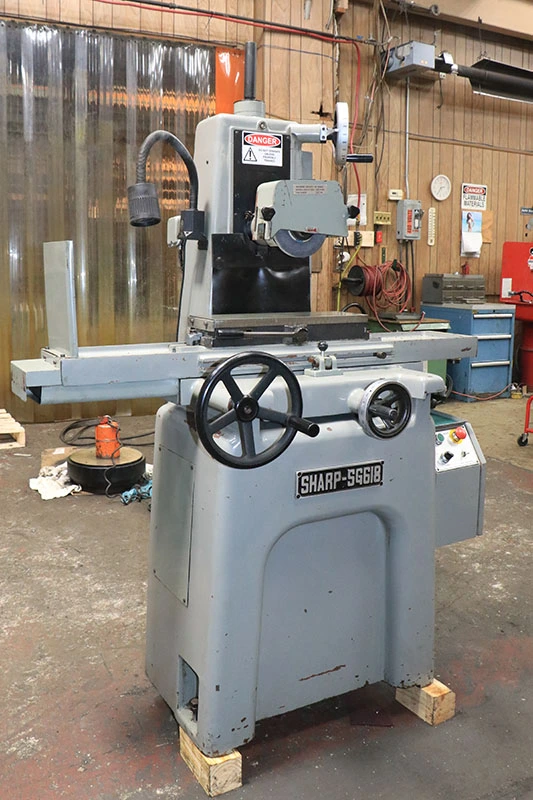

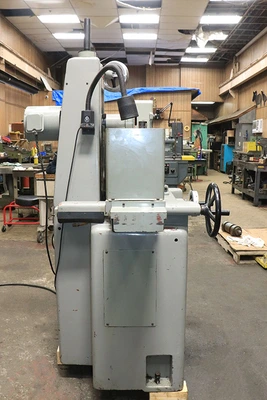

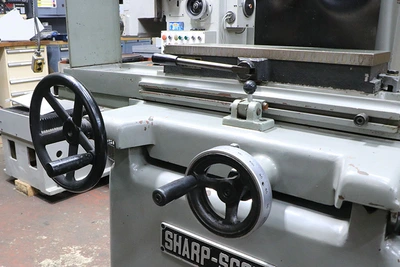

6" Width 18" Length Sharp SG-618, NEW 1995, SURFACE GRINDER
6" X 18" SHARP INDUSTRIES "MADE IN TAIWAN"
MANUAL HAND FEED SURFACE GRINDER
MODEL: SG-618 S/N: 84A997 NEW: 1995
WIDTH AND LENGTH GROUND ....................... 6.3" X 18.5"
LONGITUDINAL TRAVEL ............................. 18.9"
CROSS FEED TRAVEL ............................... 7"
MAX. DISTANCE CENTER OF SPINDLE TO TABLE ........ 16"
STD. GRINDING WHEEL ............................. 8" X 1/2" X 1- 1/4"
ELEVATING HANDWHEEL GRAD. ....................... 0.0001"
VERTICAL MOVEMENT OF WHEEL PER HANDWHEEL REV. ... 0.05"
CROSS FEED HANDWHEEL GRAD. ...................... 0.001"
CROSS MOVEMENT OF SADDLE PER HANDWHEEL REV. ..... 0.2"
SPINDLE SPEED ................................... 3,600 RPM
OPERATING SPACE ................................. 48" X 40" X 71"H
APPROXIMATE MACHINE WEIGHT ...................... 1,510 LBS
EQUIPPED WITH:
FULL CAST IRON CONSTRUCTION THROUGHOUT
V AND FLAT WAY CONSTRUCTION
TURCITE B ON WAYS (LOW FRICTION MATERIAL)
DOUBLE NUT BACKLASH ELIMINATOR
WIRE ROPE DRIVEN TABLE
SADDLE LOCK MECHANISM
AUTOMATIC LUBRICATION SYSTEM

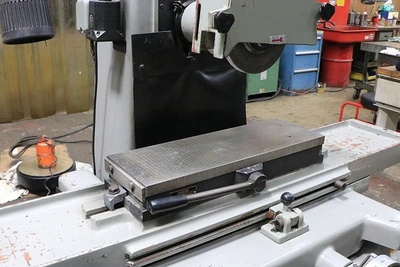

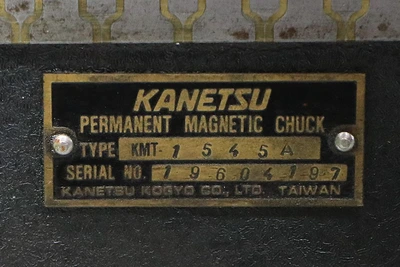

6" X 18" "KANETSU" KMT-1545A FINE-DIVISION PERMANENT MAGNETIC CHUCK
WORK LIGHT

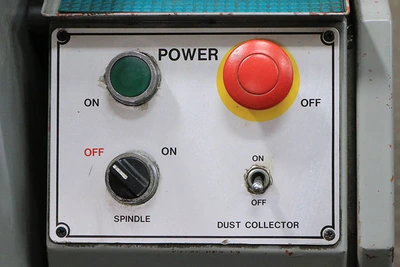

SWITCH TO INTEGRATE WITH A DUST COLLECTOR
1.5 HP 3/60/220-440 VOLT DIRECT DRIVE "CARTRIDGE TYPE" SPINDLE
LINK TO VIDEO: https://youtu.be/j-5p0gObRqU
** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **
