USED 1992 Okamoto ACC-1632DX, NEW 1992, 3-AXIS AUTOMATIC,
Overview
Description
16" Width 32" Length Okamoto ACC-1632DX, NEW 1992, 3-AXIS AUTOMATIC, SURFACE GRINDER, "DX" SERIES PROGRAMMABLE AUTO IDF, EMC, COOLANT
Specifications

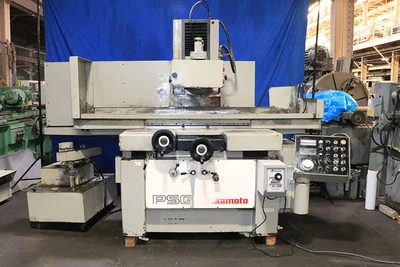

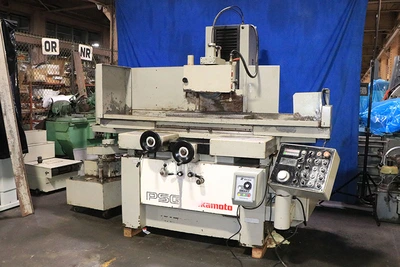

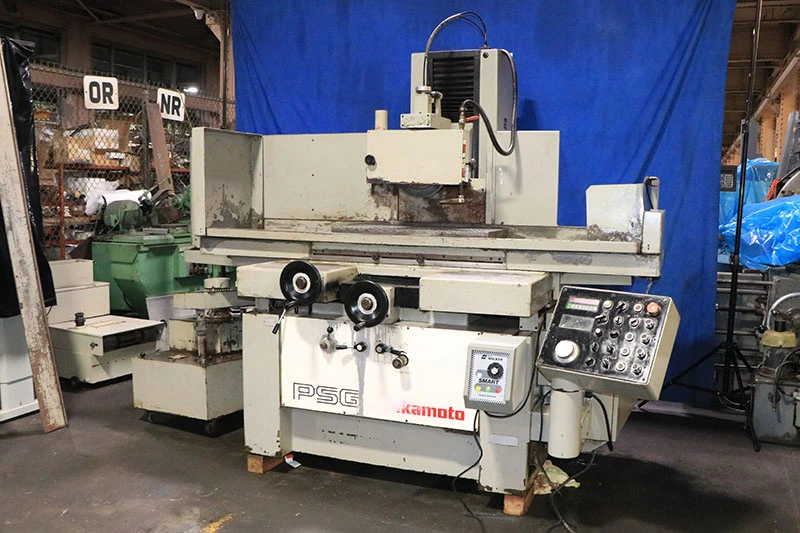

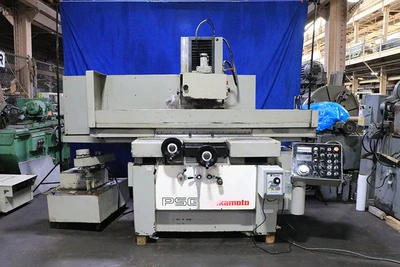

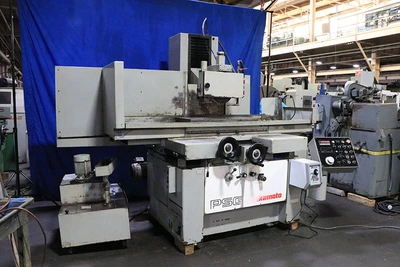

16" X 32" OKAMOTO "HIGH-PRECISION" SURFACE GRINDER
WITH "DX" PROGRAMMABLE AUTO INCREMENTAL DOWNFEED
MODEL: ACC-1632DX S/N: 68077 NEW: 1992
NOMINAL GRINDING CAPACITY .................... 16" x 32"
MAXIMUM HEIGHT UNDER STD. 12" WHEEL
TO TABLE SURFACE ........................... 21.5"
TABLE SPEED, INFINITELY VARIABLE ............. UP TO 82' FPM
MAX. LONGITUDINAL TABLE MOVEMENT, MANUAL ..... 30"
AUTO CROSS FEED INCREMENT .................... 0.002" TO .80"
AUTO CONTINOUS CROSSFEED ..................... 4' TO 40' FPM

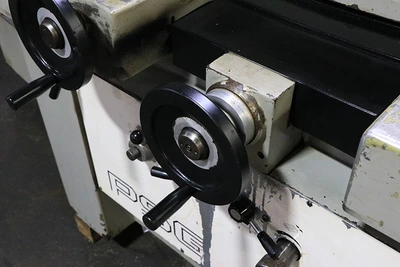

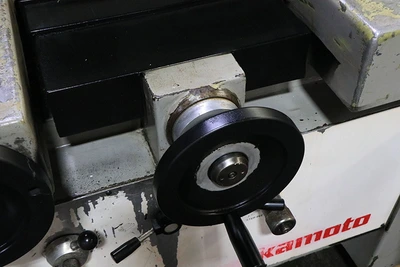

CROSSFEED, MANUAL, HAND FEED PER REV. ........ 0.25"
GRAD. OF HANDWHEEL ........ 0.001"
MAX. CROSSFEED, MANUAL ....................... 18"
AUTO INCREMENTAL DOWNFEED INCREMENTS ......... 0.00005" TO .0015"
POWER RAPID WHEEL POSITIONING RATE ........... 16" IPM
SPINDLE MOTOR ................................ 5 H.P.

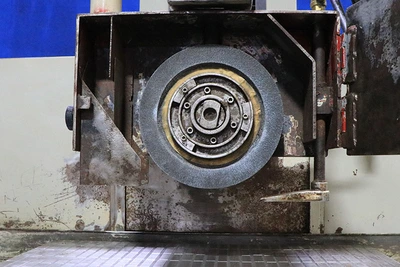

WHEEL SIZE ................................... 12" X 1.5" X 5"
WHEEL SPEED .................................. 6,500 SFPM
GRINDING WHEEL SPEED ......................... 1,800 RPM
APPROX. MACHINE WEIGHT ....................... 8,800 LBS.
EQUIPPED WITH:
"DX" PROGRAMMABLE ELECTRONIC AUTO INCREMENTAL DOWNFEED:
-SERVO DRIVEN DOWNFEED
-AUTO INCREMENTAL DOWNFEED FOR BOTH SURFACE & PLUNGE
OPERATIONS
-DUAL RATE AUTO DOWNFEED W/COARSE & FINE SELECTIONS
-DIGITAL DISPLAY FOR VERTICAL AXIS
-SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK AT
COMPLETION OF GRIND CYCLE
-ELECTRONIC HANDWHEEL FOR MANUAL VERTICAL MOVEMENT
W/EACH GRAD. EQUIVALENT TO .00001", .0001" OR .001"
-POWER RAPID WHEEL POSITIONING
HYDRAULIC TABLE TRAVERSE & AUTOMATIC CROSSFEED

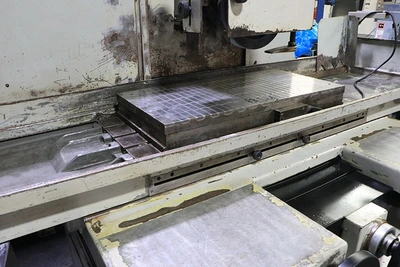

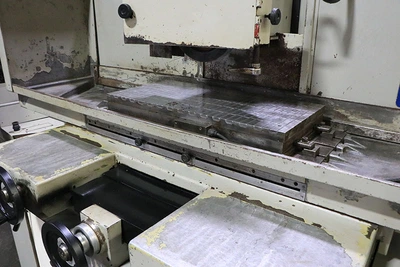

16" X 32" "KANETSU" ELECTRO-MAGNETIC CHUCK
O.S. WALKER "SMART SERIES" VARIABLE HOLD NEUTROFIER CONTROL

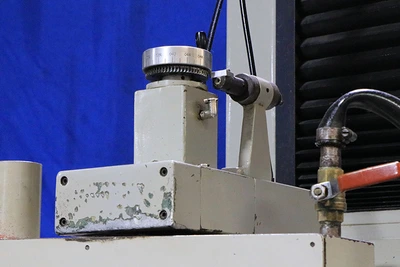

POWER OVER-THE-WHEEL DRESSER
COOLANT TANK & PUMP, PORTABLE ON CASTERS
5 H.P. SPINDLE MOTOR
PRESENTLY WIRED FOR 3/60/460 VOLT ELECTRICS
LINK TO VIDEO: https://youtu.be/9pxsxitDTfY?si=Z42VpxE_otq_mxLy
** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE - **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
