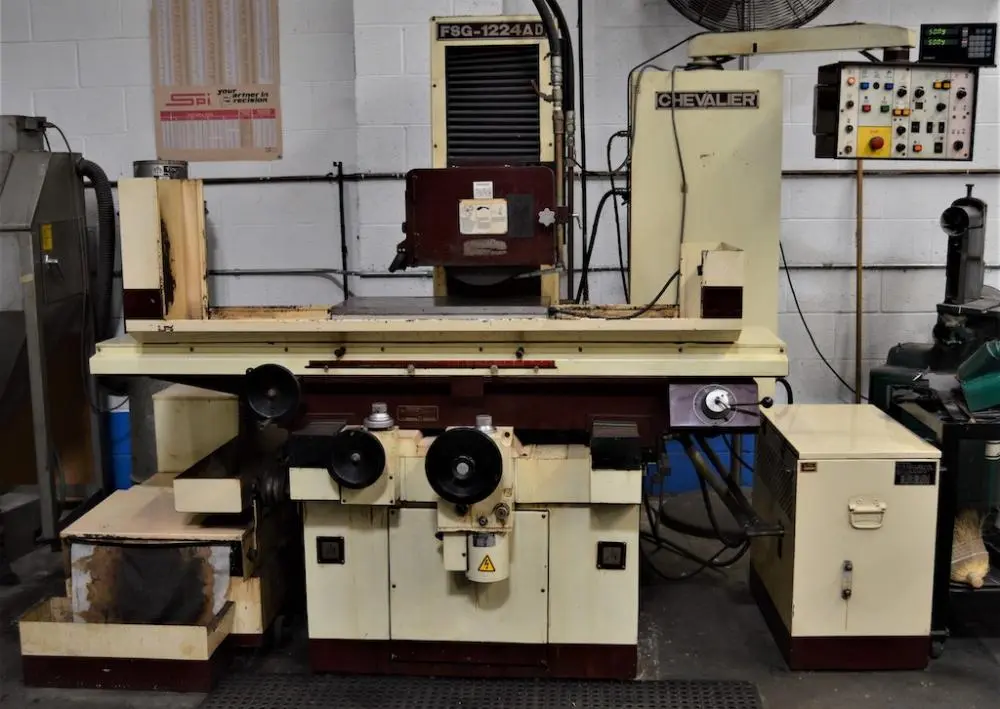

USED 1995 Chevalier FSG-1224AD, NEW 1995, PROGRAMMABLE AUTO IDF,

12" Width 24" Length Chevalier FSG-1224AD, NEW 1995, PROGRAMMABLE AUTO IDF, SURFACE GRINDER, SONY DRO

  12" X 24" CHEVALIER PRECISION SURFACE GRINDER

  W/PROGRAMMABLE MICROPROCESSOR AUTOMATIC

  INCREMENTAL DOWNFEED CONTROL (PENDANT MOUNTED)

MODEL: FSG-1224AD    S/N: F1841006   NEW: 1995

TABLE SIZE......................... 11-3/4" X 25-3/8"

MAX. GRINDING CAPACITY .................... 12" X 24"

MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC ... 25-5/8"

MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ...... 27-1/2"

MAX. CROSSFEED TRAVEL, AUTOMATIC ................ 12"

MAX. CROSSFEED TRAVEL, MANUAL ............... 13-3/4"

DIST. FROM SPINDLE CENTER TO TABLE .......... 19-3/4"

VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 82' FPM

AUTOMATIC CROSSFEED INCREMENT ........ 1/8" TO 1-1/4"

CROSSFEED HANDWHEEL, PER GRADUATION ......... 0.0025"

PER REVOLUTION ................................ 0.25"

MICROFEED, PER REVOLUTION ................... 0.0005"

PER GRADUATION ............................. 0.00005"

AUTOMATIC INCREMENTAL DOWNFEED .... 0.00005" TO .002"

AUTO DOWNFEED DIAL PER GRADUATION ........... 0.0005"

PER REVOLUTION ................................ 0.05"

MICROFEED ........................... 0.00005"/.0001"

RAPID TRAVERSE RATE .......................... 8" IPM

SPINDLE MOTOR .................................. 5 HP

STANDARD GRINDING WHEEL ......... 14"DIA. X 2"W X 5"B

APPROX. WEIGHT ............................ 4,850 LBS

APPROX. DIMENSIONS ................. 98" X 68" X 88"H

  EQUIPPED WITH:

PENDANT MOUNTED AND MICROPROCESSOR CONTROLLED AUTOMATIC

  INCREMENTAL DOWNFEED OF GRINDING WHEELHEAD FROM 0.00005"

  T0 0.002" IN SURFACE OR PLUNGE MODES OF OPERATION.  FULLY

  AUTOMATIC GRINDING CYCLE INCLUDING RAPID ADVANCE OF

  GRINDING WHEELHEAD, 0 T0 7 SPARKOUT PASSES, AND RETRACTION

  OF WHEELHEAD TO A PRE-SET DISTANCE AT THE COMPLETION OF

  THE CYCLE.

HYDRAULICALLY ACUTATED LONGITUDINAL TABLE FEED

ELECTROMECHANICALLY ACTUATED FEED OF SADDLE

TABLE AND SADDLE GUIDE WAYS MADE OF SPECIAL STEEL RAILS

  WITH HIGH ACCURACY STEEL ROLLERS

PRECISION NEEDLE ROLLER BEARINGS USED ON THE ELEVATING

  GUIDE WAYS

FINE (MICRO) FEEDS GRADUATED TO .00005" FOR VERTICAL

  & CROSS FEEDS

11-3/4" X 23-5/8" KANETSU ELECTROMAGNETIC CHUCK WITH A

  PENDANT MOUNTED POTENTIOMETER FOR VARIABLE HOLDING POWER

  AND A SELECTOR SWITCH FOR AUTOMATIC DEMAGNETIZATION OF

  WORK PIECE

"SONY" TWO-AXIS DIGITAL READOUT DISPLAY

EXTERNAL COOLANT SYSTEM WITH PAPER FILTER

EXTERNAL HYDRAULIC PUMP AND TANK

5 HP 3/60/230-460 VOLT DRIVE SPINDLE MOTOR

MACHINE IS PREWIRED TO ACCEPT 230 OR 460 VOLTS

** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE!! **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
