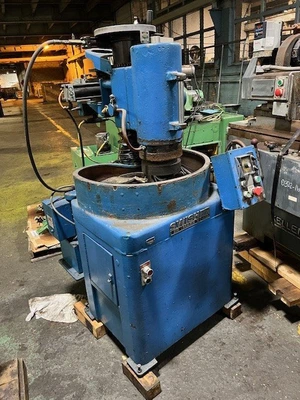

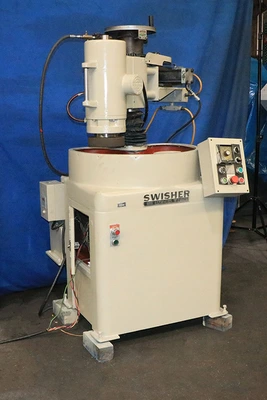

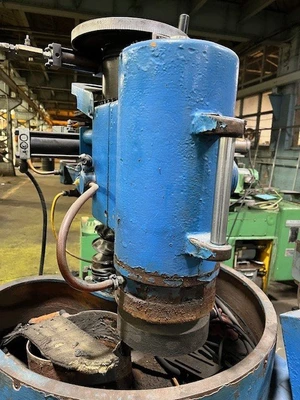

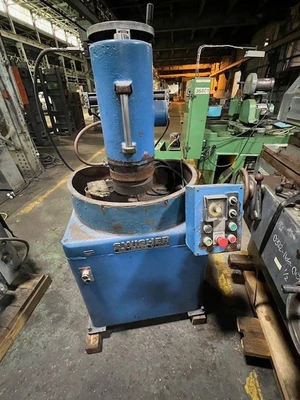

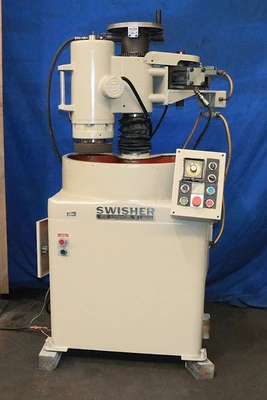

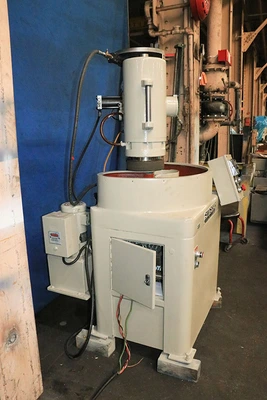

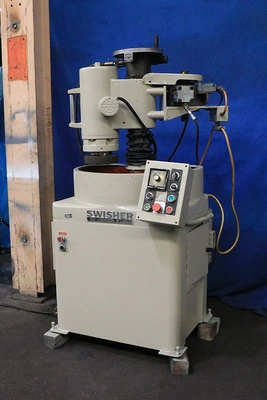

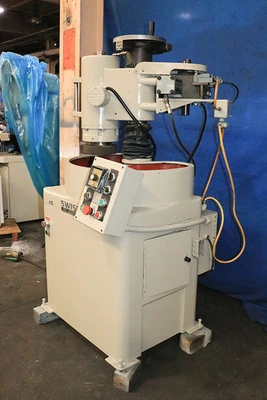

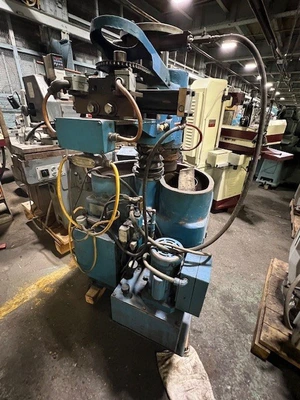

USED 1984 Swisher MARK V, 1984, AUTO, STATIONARY TABLE SWEEPING SPDL

6" Width 12" Length Swisher MARK V, 1984, AUTO, STATIONARY TABLE SWEEPING SPDL SURFACE GRINDER, COOLANT, 7.5 H.P.

       SWISHER VERTICAL SPINDLE STATIONARY TABLE

         SWEEPING VERTICAL SPINDLE GRINDER

       WITH AUTOMATIC SPINDLE SWEEP & DOWNFEED

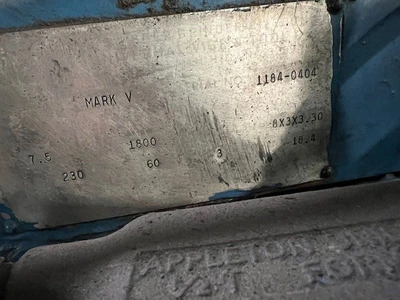

 MODEL: MARK V     S/N: 1184-0404      NEW: 1984

WORKHOLDING CAPACITY .............. 6" x 12" OR 7.5" x 100°

WHEEL SIZE DIAMETER ....................... 8"

MAX. DISTANCE GRINDER BASE TO NEW WHEEL ... 10"

MAX. DIST. MAGNETIC CHUCK TO NEW WHEEL .... 7- 1/2"

MAX. SWEEP INSIDE SPLASH GUARD ............ 180

MAX. SPINDLE TILT ......................... 3.5°

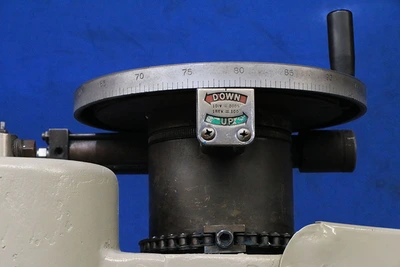

HANDWHEEL DIAMETER ........................ 12"

HANDWHEEL GRADUATIONS ..................... 0.187" APART

ONE GRAD. INDICATES ....................... 0.0005" FEED

ONE COMPLETE REVOLUTION ................... 0.100" FEED

AUTOMATIC SPINDLE SWEEP RATE .............. 0 TO 250" IPM

AUTOMATIC SPINDLE DOWNFEED ................ 0.0005" TO .005"

AUTO SPINDLE SWEEP FEED RATE .............. 0 - 250" IPM

APPROX. MACHINE WEIGHT .................... 1,800 LBS.

APPROX. MACHINE DIMENSIONS ................ 53" x 31" x 74"H

EQUIPPED WITH:

AUTOMATIC POWER SPINDLE SWEEP.

ADJUSTABLE SWEEP DISTANCE & SPEED IN EACH DIRECTION,

  INDEPENDENT OF EACH OTHER.

AUTOMATIC POWER SPINDLE DOWNFEED

POWER RAPID WHEELHEAD POSITIONING (UP & DOWN)

CYCLE COUNTER SETS # OF DOWNFEED PASSES REQUIRED

SPARKOUT COUNTER SETS THE # OF PASSES TO ACHIEVE THE

  DESIRED MICRO-FINISH.

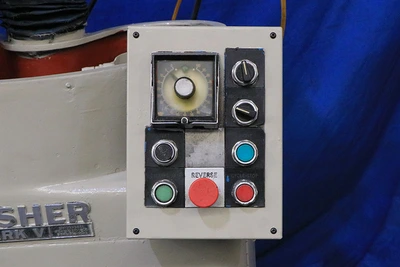

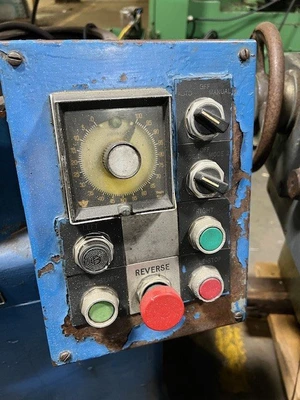

OPERATOR CONTROL CONSOLE

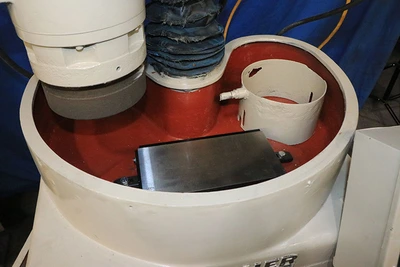

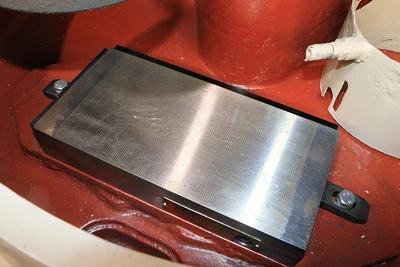

6" X 12" FINE-DIVISION ELECTRO-MAGNETIC CHUCK

VARIABLE HOLD NEUTOFIER CONTROL

EXTERNAL COOLANT TANK WITH PUMP

1/2 H.P./3/60/23-460 VOLT HYDRAULIC MOTOR

7.5 H.P./3/60/230-460 VOLT MAIN MOTOR

MACHINE IS PRESENTLY WIRED 3/60/230 VOLTS

Link to video: https://youtu.be/FwTjO7MKJAE?si=ndE9h1I51nBuBfJg

** JUST ARRIVED TO OUR HARRISON, NJ WAREHOUSE **

** INSPECT UNDER POWER **

** OFFERED SERVICED AND READY FOR DELIVERY, 3 WEEKS **

** DETAILED PAINTING CAN BE PROVIDED, FOR AN ADDITIONAL $800 **

FOR MORE INFORMATION: Call Andy at 973-497-7600
