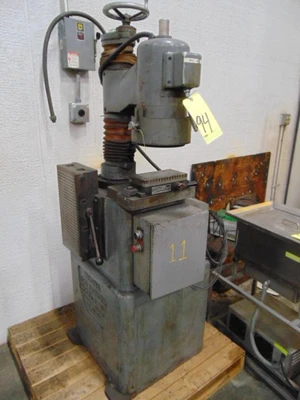

USED Medina "B" END GRINDER, SWINGING SPINDLE

Medina "B" END GRINDER, SWINGING SPINDLE SURFACE GRINDER, 10" X 15" PERMANENT MAGNETIC CHUCK

  Medina Model B End Grinder

Specifications

Grinding Capacity:              1" T x 20" W x 46" L

Length:                         2" T x 17-1/2" W x 46" L

Length:                         3" T x 14-1/2" W x 46" L

Length:                         4" T x 10-1/2" W x 46" L

Height from Floor To Face

  of Wheel:                      46"

Chuck Size:                     10" x 15"

Grinding Wheel Size:            7" x 3" x 1-1/4" Bore

Downfeed Graduations:           .001

Approximate Overall Dimensions: 22" x 22" x 68"

Approximate Weight:             1,050 lbs.

- Machine is equipped with 10" x 15" Walker Fine-Division Permanent Magnetic Chuck (Vertically)

   AND Another Smaller Chuck (Horizontally)

- Motor and Electrical Controls

A COMPACT PRECISION MACHINE FOR SQUARING ENDS UP TO

46" LONG, ANGLE GRINDING, SQUARING BLOCKS ON ALL SIDES,

GRINDING FERROUS & NON-FERROUS METALS & SURFACE GRINDING

** EXCELLENT CONDITION & APPEARANCE  **

FOR MORE INFORMATION: Call Andy at 973-497-7600
