USED 1983 Parker-Majestic Open Column

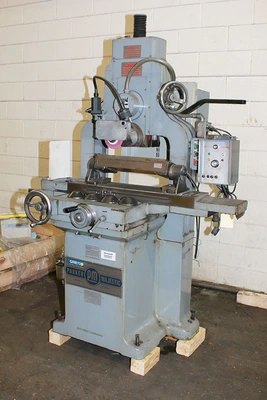

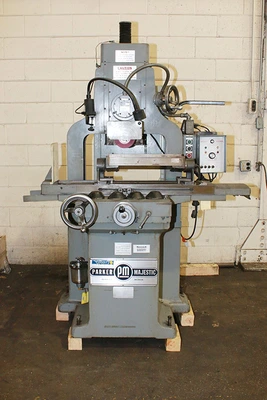

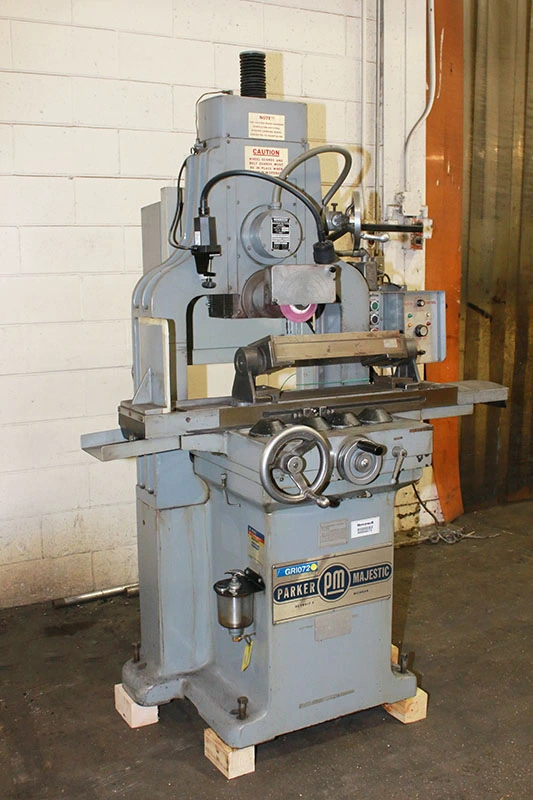

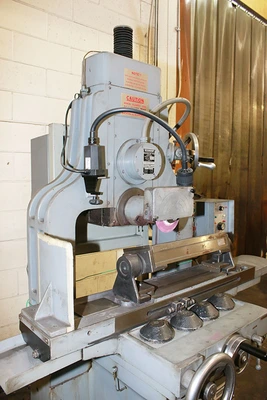

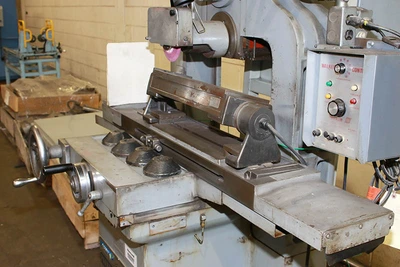

6" Width 18" Length Parker-Majestic Open Column SURFACE GRINDER, MULTI-SPEED SPINDLE, SINE ELECTRO-MAG. CHUCK

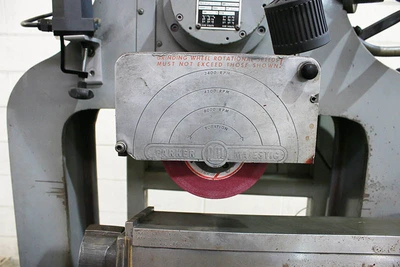

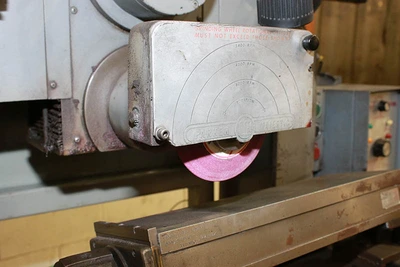

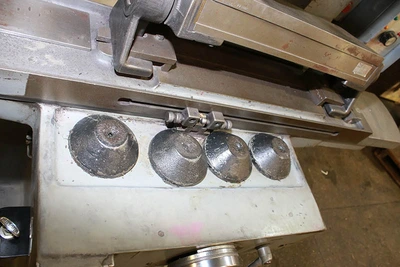

   6" X 18" PARKER-MAJESTIC "SUPER-PRECISION" (MADE IN USA)"OPEN COLUMN" HAND FEED SURFACE GRINDER/BROACH GRINDER    S/N: 101-BRG-83             NEW:  1983      ** THIS MACHINE WAS PRIMARILY DESIGNED FOR GRINDING FLAT BROACHES.     THE OPEN COLUMN GIVES CLEARANCE THROUGH WHICH THE WORKPIECE MAY PROTRUDE.   SINCE CHUCKS OR OTHER ANGLE TYPE WORK HOLDING FIXTURES ARE GENERALLY   USED IN CONJUNCTION WITH THIS BROACH GRINDER.  THE MACHINE WAYS ARE    ONE VEE AND ONE FLAT, HAND SCRAPED TO EXACTING MASTERS TO INSURE   FLATNESS AND STRAIGHTNESS."   LONGITUDINAL TABLE TRAVEL .......................... 18"TRANSVERSE TABLE TRAVEL ............................ 6"VERTICAL TRAVEL .................................... 8"CENTERLINE OF GRINDING WHEEL, TO TOP OF TABLE ...... 14- 1/2" MAX.                                                     6- 1/2" MINIMUM GRINDING WHEEL SPINDLE SPEEDS: 6,000 RPM ......................................... 3.5" DIA. WHEEL 4,300 RPM ......................................... 5" DIA. WHEEL 3,600 RPM ......................................... 6.5" DIA. WHEEL 3,400 RPM ......................................... 7" DIA. WHEEL 2,800 RPM ......................................... 8" DIA. WHEEL 2,200 RPM ......................................... 10" DIA. WHEEL APPROXIMATE FLOOR AREA ............................. 35" x 72"MAXIMUM HEIGHT ..................................... 82"APPROX. WEIGHT ..................................... 2,100 LBS.   EQUIPPED WITH:6" x 18" O.S. WALKER "LBP" FINE-DIVISION ELECTRO-MAGNETIC CHUCK  ON SWIVEL BASEOS. WALKER VARIABLE HOLD NEUTROFIER CONTROL PARKER-MAJESTIC MULTI-SPEED SPINDLE DRIVE W/(6) SPEEDS ... WHEEL DIAMETERS FROM 3.5" TO 10" CAPACITYSTANDARD HAND FEED W/TAPE DRIVE TEFLON ON THE WAYSCROSS FEED SADDLE LOCK BIJUR ONE-SHOT LUBRICATOR3/60/220-440 VOLTS   ** ORIGINAL PAINT - EXCEPTIONAL CONDITION **** INSPECT UNDER POWER IN OUR HARRISON, N.J. FACILITY **

FOR MORE INFORMATION: Call Andy at 973-497-7600
