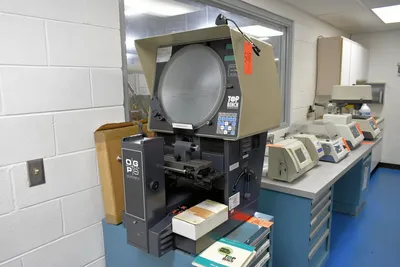

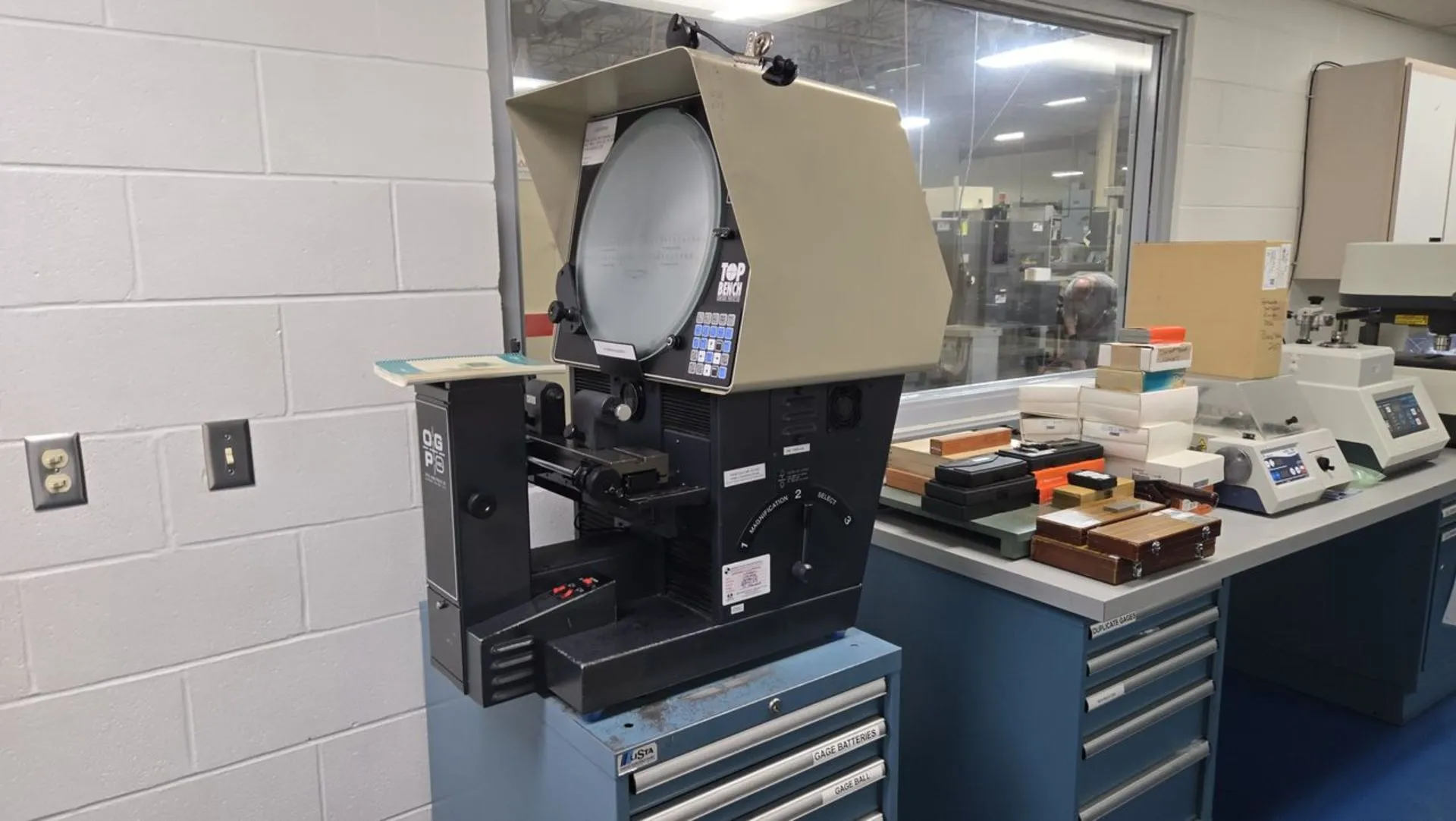

USED 1995 OGP TOP BENCH, 1995, CALIBRATED ON 10/24/2024

14" Screen OGP TOP BENCH, 1995, CALIBRATED ON 10/24/2024 OPTICAL COMPARATOR, DRO & EDGE, 3-POS. LENS TURRET, LENSES

       14" OPTICAL GAGING PRODUCTS (OGP)

     OPTICAL COMPARATOR WITH DIGITAL READOUT

       (PROGRAMMABLE GEOMETRIC FUNCTIONS)

       & "PROJECTRON IV" EDGE DETECTION

MODEL: TOP BENCH

S/N: B08061133

MFG. APRIL, 1995

SPECIFICATIONS:

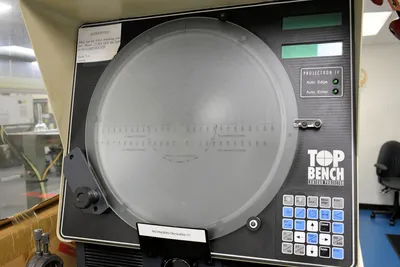

SCREEN DIAMETER ............... 14"

TABLE SIZE: ................... 4-3/8" X 17-3/4"

MEASURING CAPACITY

-LONGITUDINAL TABLE TRAVEL .... 8"

-VERT. TABLE TRAVEL ........... 6"

TABLE LOAD CAPACITY ........... 55 LBS.

ANGULAR MEASURING CAPACITY .... 360° CHART ROTATION

IMAGE TYPE .................... FULLY CORRECTED/ERECT

FLOOR SPACE ............ 24" L-R x 36" F-B x 41" HIGH

APPROX. WEIGHT ................ 450 LBS

EQUIPMENT:

BUILT IN "OGP" GEOMETRIC DIGITAL READOUT

  SYSTEM w/PROGRAMMABLE GEOMETRIC FUNCTIONS

OGP "PROJECTRON IV" EDGE DETECTION

BUILT IN SURFACE ILLUMINATION

MANUAL TABLE TRAVERSE

DIGITAL ANGLE DISPLAY

THREE POSITION LENS TURRET

COMES WITH 10X, 20X & 50X LENSES

TUNGSTEN HALOGEN PROJECTION

  1,200 PEAK WATTS

  350 CONTINUOUS WATTS

ELECTRICAL - 1/60/115 VOLTS, 3.0 AMPS

SPECIAL NOTE, CALIBRATED

 LAST ON 10/24/2024 BY:

INSPECTION ENGINEERING

WESTLAKE, OH

(440) 892-9277

REPORT #2429801V3

FANATSTIC DESCRIPTION FROM OGP,

OF THIS MODEL'S UNIQUE DESIGN:

REVOLUTIONARY ACCUCENTRIC LENS SYSTEM",

(PATENTED):

"THE ACCUCENTRIC OPTICS IN TOP BENCH PRESENT

 A FULLY CORRECTED, ERECT AND UNREVERSED IMAGE

 OF THE HIGHEST QUALITY.  THE IMAGE ON THE

 SCREEN APPEARS EXACTLY THE SAME WAY AS YOU

 SEE THE PART STAGED ON THE WORKTABLE.

 SO THERE'S NO WONDERING WHICH WAY TO MOVE

 THE TABLETO MEASURE A DIMENSION.  YOUR

 HAND-EYE COORDINATION IS NATURAL, FATIGUE

 IS MINIMIZED, AND PRODUCTIVITY IMPROVED.

THE ACCUCENTRIC OPTICS IN TOP BENCH ARE FULLY

 TELECENTRIC.  THIS ENSURES THAT THE

 MAGNIFICATION OF THE IMAGE REMAINS ACCURATE

 EVEN WHEN DIFFERENT OPERATORS FOCUS THE

 SYSTEM AT DIFFERENT POSITIONS.  IT ALSO MEANS

 A CONSTANT WORKING DISTANCE, OUTSTANDING

 DEPTH OF FIELD, SHARP IMAGE DEFINITION AND

 NEGLIGIBLE DISTORTION.

ONLY TRUE TELECENTRIC SYSTEMS CAN MAKE

 THIS CLAIM.  DON'T BE FOOLED BY THOSE SYSTEMS

 WITH SIMPLE OPTICS THAT PROMISE "TELECENTRIC

 ILLUMINATION". TO RECEIVE THE BENEFITS

 OF TELECENTRICITY, THE ENTIRE OPTICAL SYSTEM

 MUST BE DESIGNED ACCORDINGLY. OGP, WHO

 INTRODUCED THE TELECENTRIC RELAY LENS

 PRINCIPLE IN 1945, IS UNIQUELY QUALIFIED TO

 PROVIDE THE UNSURPASSED OPTICAL QUALITY YOU

 DESERVE IN A CONTOUR PROJECTOR.

OGP'S EXCLUSIVE FRESNEL LENS TECHNOLOGY

 REDIRECTS ALL LIGHT TOWARDS THE NORMAL

 VIEWING POSITION.  NO LIGHT IS WASTED,

 AND YOU GET THE BRIGHTEST, MOST EVENLY

 ILLUMINATED IMAGE IN THE INDUSTRY.

THROUGH-THE-LENS SURFACE ILLUMINATION

 DELIVERS BRIGHTER, MORE EVENLY ILLUMINATED

 IMAGES THAN THE "HIGH INTENSITY" FIBER OPTICS

 FOUND ON OTHER SYSTEMS. AND YOU WON'T HAVE

 TO ADJUST UNWIELDY FIBER OPTIC CABLES

TOP BENCH USES A UNIQUE OPTICAL FOCUSING

 METHOD THAT REMOVES THE REQUIREMENT FOR A

 THIRD AXIS OF MOTION FOR THE WORKTABLE AND

 INCREASES THE ACCURACY OF HORIZONTAL AND

 VERTICAL MOTIONDUAL LCD DISPLAYS PROVIDE

 BRIGHT, EASY TO READ COORDINATE AND GEOMETRIC

 INFORMATION AND A WIDER VIEWING ANGLE THAN

 LED DISPLAYS OGP'S EXCLUSIVE "PROJECTRON IV"

 AUTOMATIC EDGE DETECTION IS INTERNALLY

 MOUNTED AND PERMANENTLY CALIBRATED.  YOU

 WON'T HAVE TO WORRY ANYMORE ABOUT THOSE

 FLIMSY OVER-SCREEN UNITS YOU FIND ON OTHER

 SYSTEMS.

HELIX MOTION IS INCORPORATED WHERE IT

 BELONGS, THROUGH A PIVOTING WORKTABLE.

 SAY GOOD-BYE TO THE IMPROPER ILLUMINATION

 YOU GET WITH A PIVOTING LAMPHOUSE

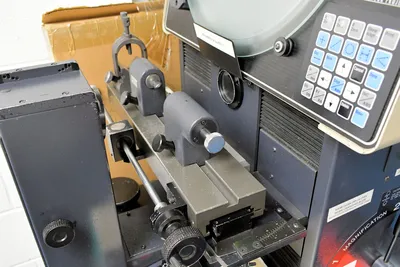

THE HARD COATED WORKTABLE ON TOP BENCH

 FEATURES 8" OR 12" OF TRAVEL AND AN INTEGRAL

 DOVETAIL SLOT FOR EASY MOUNTING OF FIXTURING

 ACCESSORIES.  PATENTED BEARING CONSTRUCTION

 ENSURES YOU OF STRAIGHT LINEAR MOTION,

 HIGH ACCURACY, AND LONG LIFE.

THE TOP BENCH SYSTEM CAN BE EQUIPPED WITH

 A THREE POSITION INTERNAL LENS TURRET FOR

 FAST CHANGING OF MAGNIFICATION.  THE TURRET

 SENSES AND DISPLAYS WHICH MAGNIFICATION LENS

 IS IN USE AND AUTOMATICALLY SETS THE CORRECT

 EDGE DETECTION PARAMETERS.

THE EXCLUSIVE ACCUCENTRIC LENS SYSTEM (PATENTED)

 PROVIDES AN UNPRECEDENTED 5" OF WORKING

 CLEARANCE, REGARDLESS OF MAGNIFICATION.

 MAXIMUM WORKPIECE DIAMETER IS A STAGGERING

 8", EVEN AT 100x!  AND SINCE ALL LENSES ARE

 ENCLOSED, THERE'S NO CHANCE OF EXPENSIVE

 COLLISIONS."

** EXCEPTIONAL CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
