USED 1990 Hybco 3000, SONY 2X DRO, OPTICAL COMPARATOR

Hybco 3000, SONY 2X DRO, OPTICAL COMPARATOR TOOL & CUTTER GRINDER, 2100 , ACCESSORIES

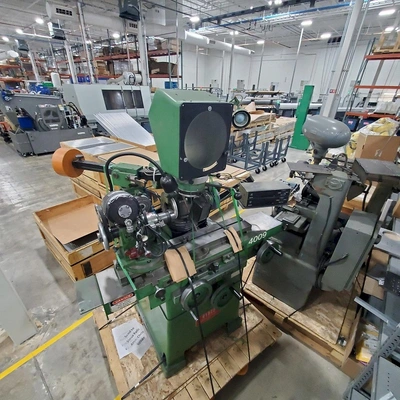

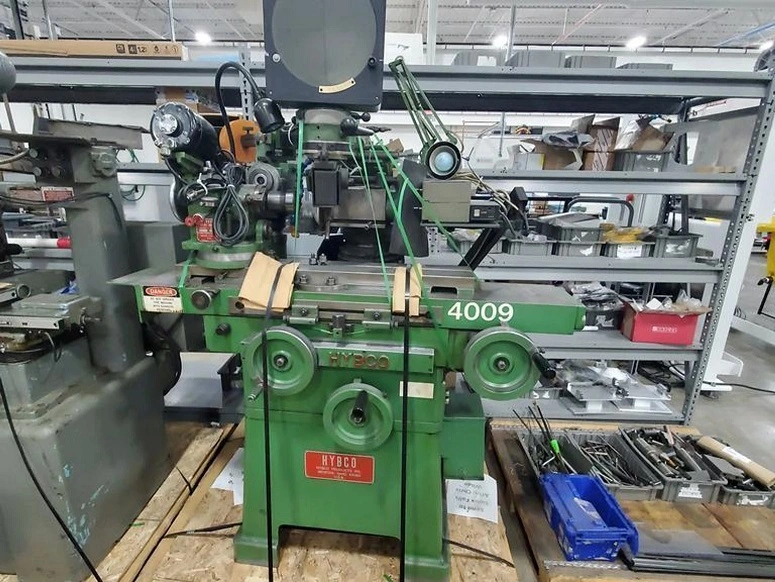

  Hybco "Precision" Form Relieving Grinder

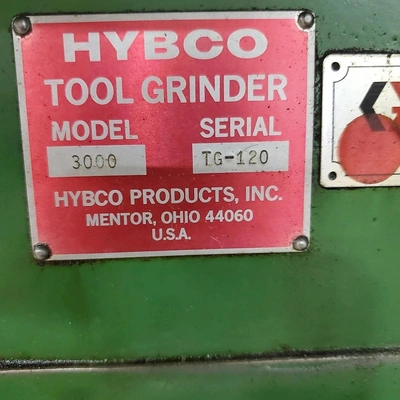

Model No.: 3000    S/N: TG-120    New: 1990

Specifications:

10" Optical Comparator

Table Working Surface: 6" x 36"

Longitudinal Travel: 14-1/2"

Cross Travel: 8-1/4"

Grinding Spindle Vertical Travel: 7-1/4"

Grinding Spindle Rotation: 360 Degrees

Grinding Spindle Tilt,

  either side of Horizontal: 25 Degrees

Grinding Spindle Speeds: 3800 & 6400 RPM

Grinding Spinele Motor: 1.5 HP, 230/460/3/60, 3430 rpm

Grinding Wheel Max. Diameter: 7"

Floor Space: 55" x 72"

Approx. Weight: 2000 lbs

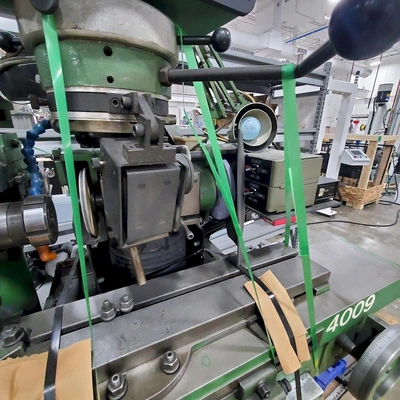

Model 2100 SB Two-Way Relieving Fixture w/Swivel Base

Spindle Center Height: 7-1/2"

Standard Collet Capacity: 1-1/16" thru Spindle

Machine Features:

Wheelhead Infeed Movement Provided by a BALL SCREW

  W/Anti-Backlash Double Nut.  Handwheel is Graduated

  with .0005" Divisions.

Longitudinal Table Feed is Provided by Rack & Pinion

  with Auxilary Lever for Short Stroke Work.  Handwheel

  is Graduated in .0005" Divisions.

Preloaded Cross Roller Bearing on Wheelhead and

  Longitudinal Slides.

Heavy Duty Cast Iron Machine

Equipped with:

"Hybco" #2100-SB  Motorized Universal Two-Way

  Relieving Fixture, for 5C Collets

"Minarik Corp." "Motormaster 2000" Variable Speed Controller

  for the Relieving Fixture

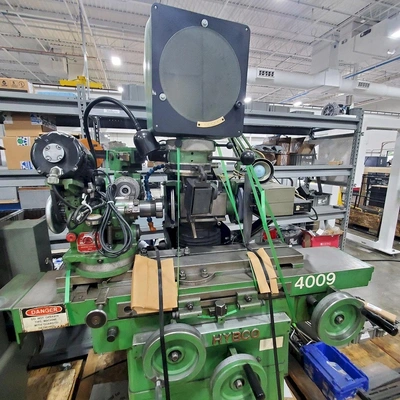

"Nikon" Optical Comparator w/Variable Intensity

  Controller, Currently Equipped with Lens

"SONY" 2-Axis Digital Readout Display

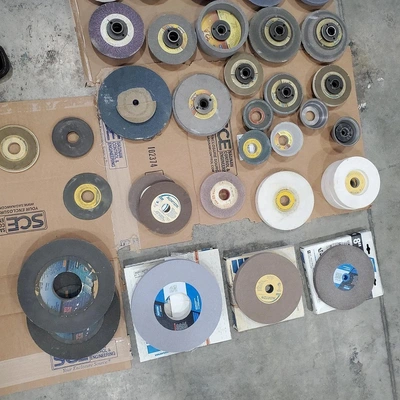

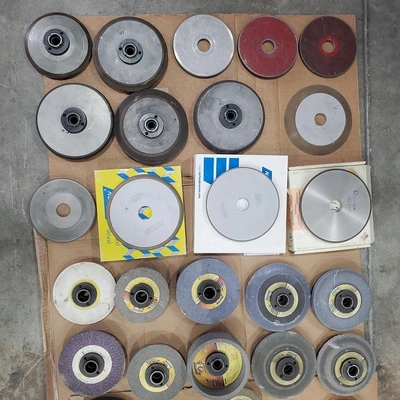

Many Grinding Wheels, Most with Hubs

(1) Cam & Index Plate

One Shot Bijur Lubrication

3/60/230-460 Volt Spindle Motor

Machine is Presently Wired for 460 Volts

** Inspect Under Power in our Harrison, NJ Warehouse **

** Excellent Condition - Latest Hybco on the Market! **

FOR MORE INFORMATION: Call Andy at 973-497-7600
