USED 1998 Scherr-Tumico 20-3650, 1998, ERECT IMAGE, QC 2000 DRO, EDGE DET

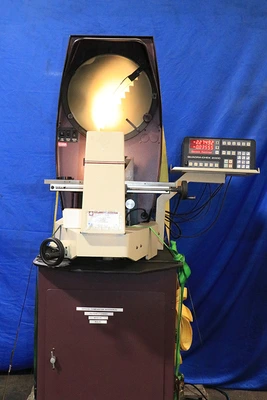

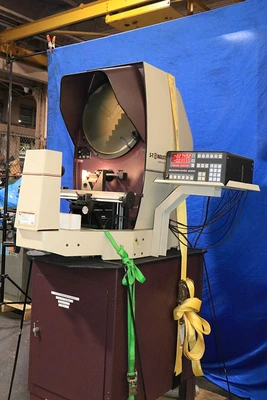

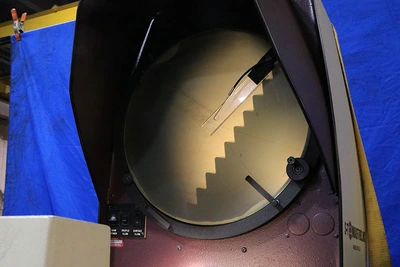

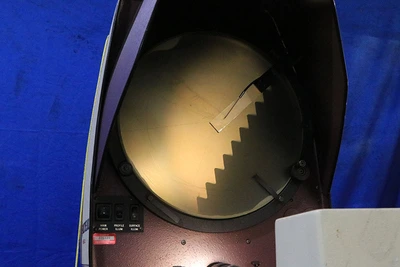

14" Screen Scherr-Tumico 20-3650, 1998, ERECT IMAGE, QC 2000 DRO, EDGE DET OPTICAL COMPARATOR, SURF ILL, 10X & 20X LENSES

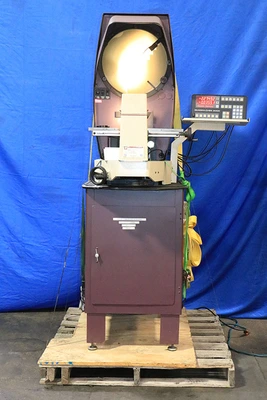

  14" S-T INDUSTRIES (SCHERR TUMICO)

  "MADE IN USA" OPTICAL COMPARATOR

     WITH FACTORY FLOOR CABINET

QUADRA-CHEK 2000 DIGITAL READOUT WITH

 PROGRAMMABLE GEOMETRIC FUNCTIONS

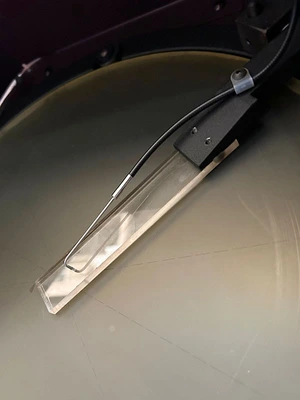

     & EDGE DETECTION

MODEL: 20-3650    S/N: SA985101     NEW: 1998

EQUIPPED WITH:

THIS MODEL HAS "ERECT IMAGE"

14" SCREEN

BENCH MODEL

HORIZONTAL PROJECTION

TUNGSTEN/HALOGEN ILLUMINATION

 24 VOLT, 150 WATT LAMP PROFILE

 12 VOLT, 100 WATT SURFACE

VARIABLE SWITCH FOR LAMP BRIGHTNESS

DUPLEX FIBER OPTIC SURFACE ILLUMINATION

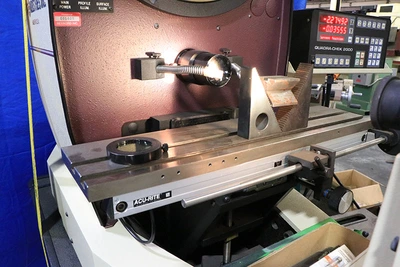

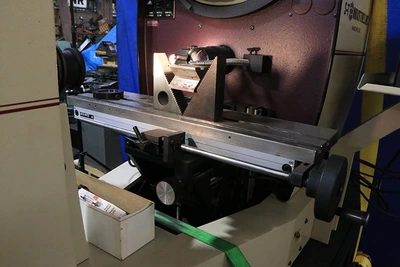

5" x 20" WORK TABLE, HEAVY DUTY

100 LBS. MAX. WORKLOAD ON TABLE

QUICK RELEASE FOR RAPID MOVEMENT OF TABLE,

 WITH MANUAL FINE ADJUSTMENT

12" LONGITUDINAL TRAVEL

6" VERTICAL TRAVEL

2.5" FOCUS TRAVEL

+/- 6° HELIX ADJ. THRU LAMPHOUSE DISPLACEMENT

SWING AWAY LAMPHOUSE

10X AND 20X  LENSES

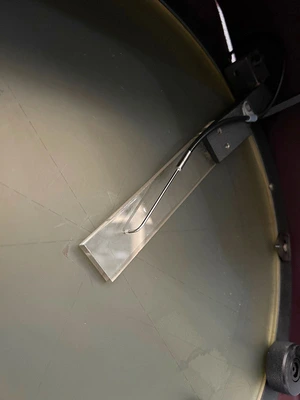

FROSTED GLASS SCREEN, 30°-60°-90° CROSSLINES

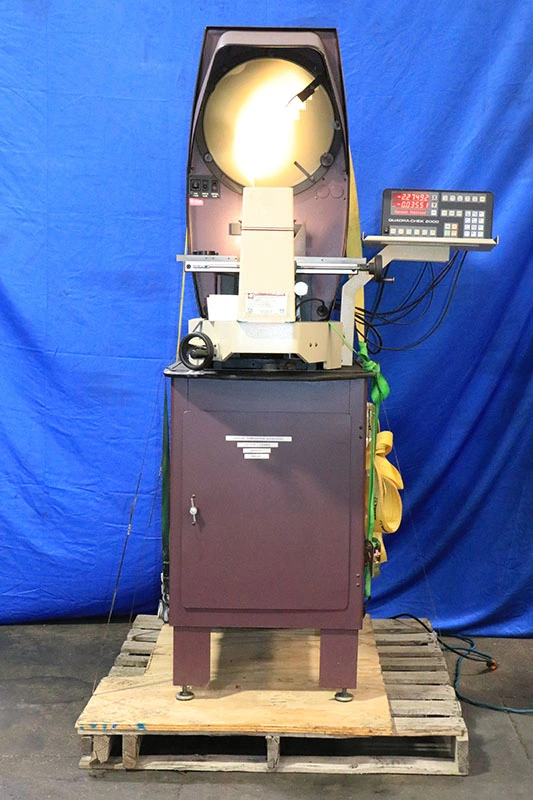

FACTORY FLOOR CABINET

QUADRA-CHEK 2000 DIGITAL READOUT WITH PROGRAMMABLE

 GEOMETRIC FUNCTIONS & EDGE DETECTION

DRO FOR PROTRACTOR SCREEN, ON THE QC 2000

1/60/115 VOLTS ELECTRICS

CALIBRATED LAST ON 01/08/2020 BY:

QUALITY CALIBRATION SERVICE, INC.

5515 S. WESTRIDGE DR.

NEW BERLIN, WI 53151

(414) 256-8900

I.D. No. OPT-SA985101

TECHNICIAN:  MG

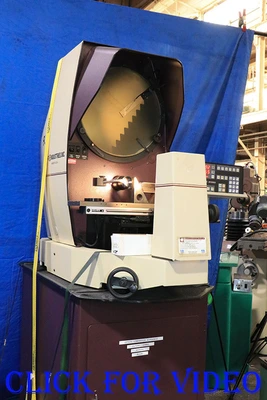

Link to Video: https://youtu.be/6_Y_fRyoHvc?si=8SsIIBkSusqr1ccB

** EXCEPTIONAL CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
