USED 2005 Micro-Vu SPECTRA 14, M1030111, 2005, Q16 DRO, SURF. ILL.
Overview
Description

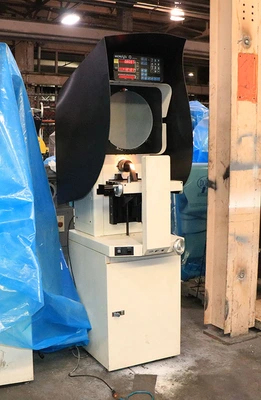

14" Screen Micro-Vu SPECTRA 14, M1030111, 2005, Q16 DRO, SURF. ILL. OPTICAL COMPARATOR, 10X OR 50X LENS
Specifications

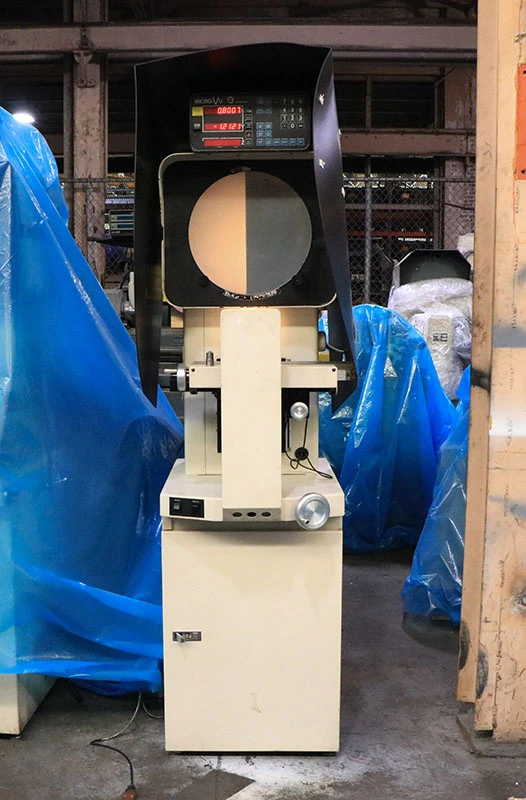

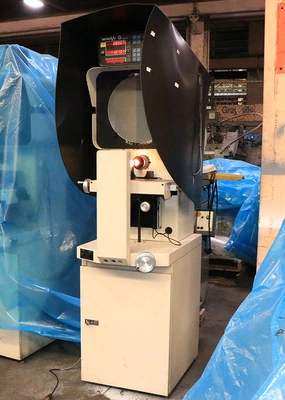

14" MICRO-VU "SPECTRA" SERIES (MADE IN USA)
HORIZONTAL BENCH MODEL OPTICAL COMPARATOR
WITH FACTORY CABINET BASE
MODEL: M103011 S/N: 7073 NEW: 05/17/2004

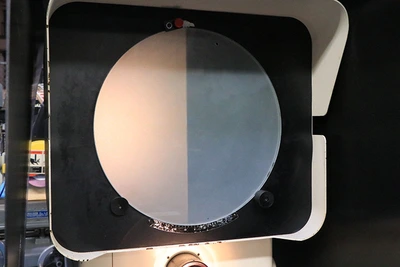

SCREEN DIAMETER .................... 14"
TABLE SIZE ......................... 18" X 5"
WEIGHT CAPACITY ON TABLE ........... 110 LBS.
HORIZONTAL TRAVEL .................. 12"
VERTICAL TRAVEL .................... 6"
FOCUS .............................. 2"
APPROX. DIMS. WITH CABINET BASE .... 38"L-R x 43"D x 71"H
CABINET BASE HEIGHT ................ 30" HIGH
APPROXIMATE WEIGHT ................. 325 LBS.
EQUIPPED WITH:

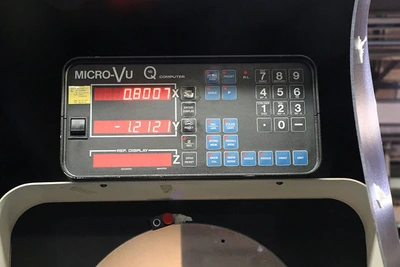

MICRO-VU Q-16 DIGITAL READOUT DISPLAY WITH
PROGRAMMABLE GEOMETRIC FUNCTIONS, DIGITAL
READOUT DISPLAY FOR THE SCREEN PROTRATCTOR
"Download to your computer .
The Q16 can usually be connected
with a standard, straight-through serial cable.
Most Statistical Process Control (SPC) programs
accept information from the Q16. Use a program
like TalTech's "Software Wedge for Windows" to
get the data into most popular spreadsheets
and programs. You can also use a terminal program
like "HyperTerminal" or a DNC package
to read information".

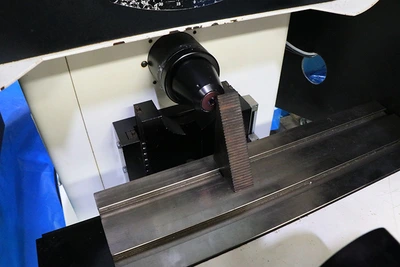

THROUGH THE LENS SURFACE ILLUMINATION PRODUCES BIG IMAGES
BUYER CAN CHOOSE ONE OF TWO LENSES, 10X OR 20X LENSES
COLLIMATED, HIGH INTENSITY PROFILE ILLUMINATION
ENSURES SHARP IMAGE
ERECT IMAGE

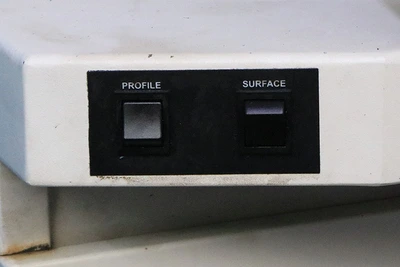

SURFACE & PROFILE ILLUMINATION

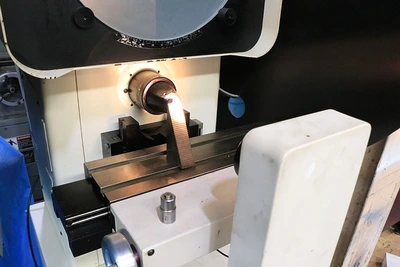

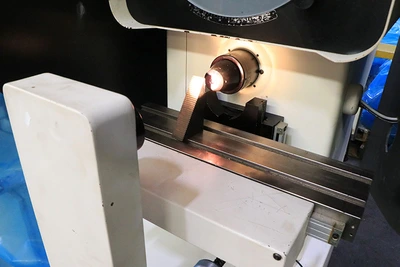

LARGE PRECISION STAGE, 12"L x 6"V x 3" TRAVELS
1 MINUTE ELECTRONIC PROTRACTOR

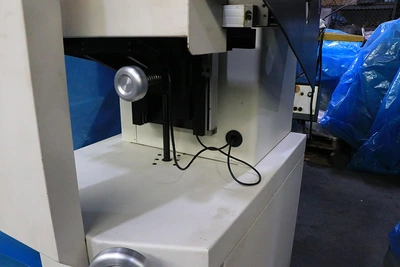

CABINET BASE
PRESENTLY HAS A 50X LENS WITH THE MACHINE
ELECTRICAL - 1/60/110-120 VOLT AC

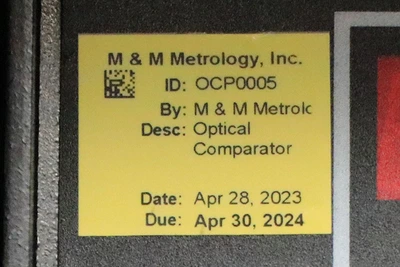

CALIBRATED LAST ON APRIL 28, 2023 BY:
M & M METROLOGY
ID: OCP0005
Link to video: https://youtu.be/acdZ8txgqoI?si=d0klmt9RZueD33nc
*** "EXCEPTIONAL" CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. **
FOR MORE INFORMATION: Call Andy at 973-497-7600
